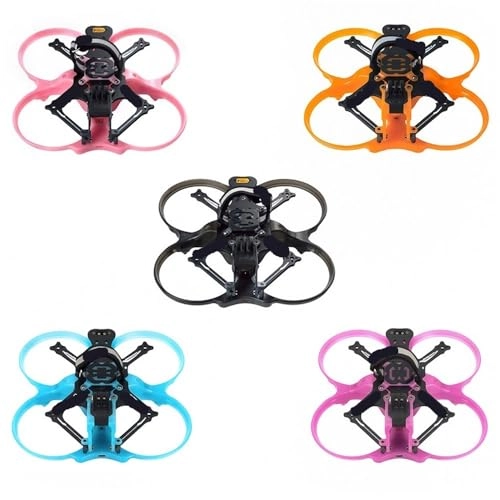

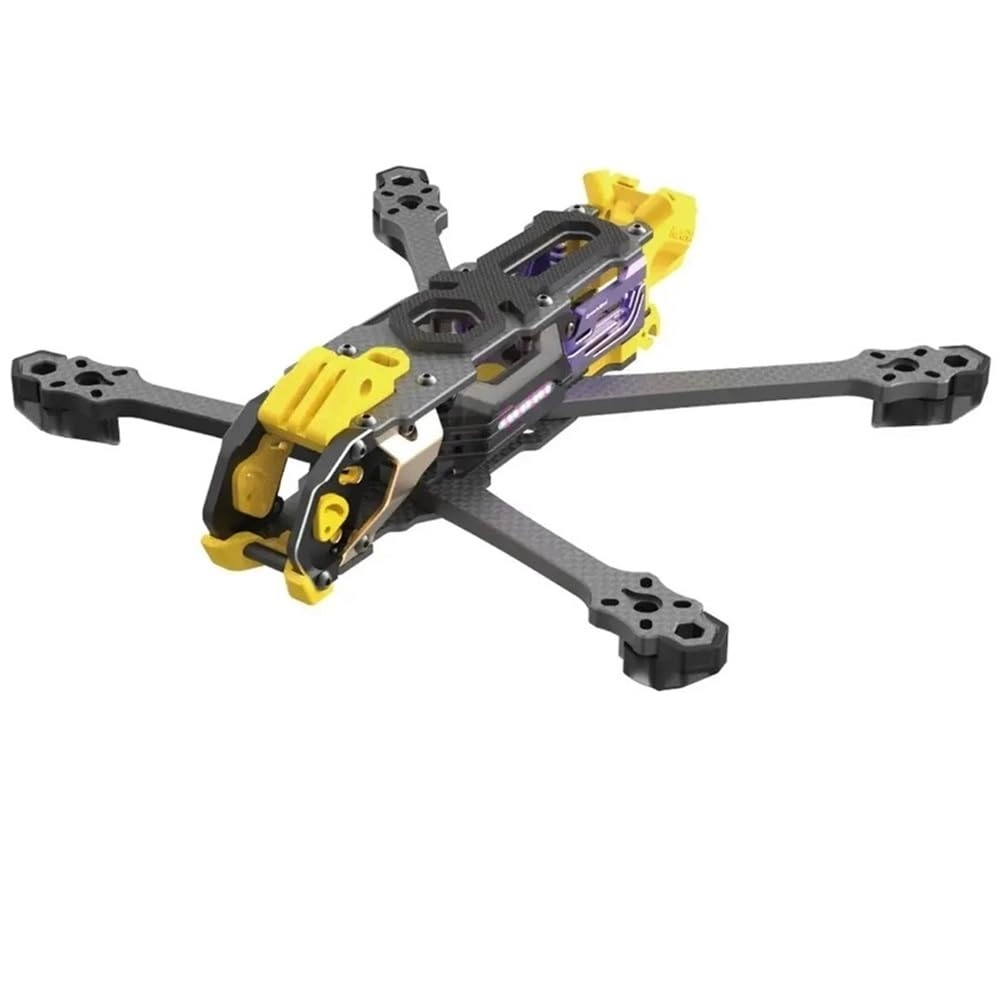

XsidY 3.5Inch Frame Kit

M 5 DC wheelbase 227 mm. M 5 DC weight. 129±5g (without 3D printed parts) 170±5g (3D printed parts and injection) M 5 XH wheelbase 226 mm. M 5 XH Weight 126±5g (without 3D printed parts) 167 ± 5 g (3D printed parts and injection). Top Plate Thickness: 2.5mm (T300 3K) Medium plate thickness 2.0 mm (T300 3K) Base plate thickness: 2.5 mm (T300 3K). Arm thickness: 6 mm (T300 3K). Camera mounting screw 7 mm. Engine spring hole position 8 mm. Motor mounting hole spacing 16-19mm FC mounting hole 30.5 x 30.5 (M3). VTX mounting hole 20 x 20 (M2) / 25.5 x 25.5 (M2). Receiver installation space: 25 x 13 x 6 mm. Suitable capacitor size 10mm x 20mm GPS installation size 18x18x7 Package specification: 1 piece
