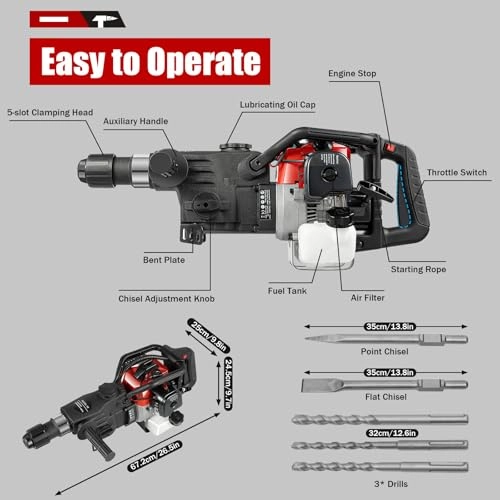

LIAPDG Hammer Drilling Machine - 1200 Watts

Specification:

Color: Black

Material: Aluminum, Plastic, Silicon

Style: Modern

Surface Treatment: Painted Process

Assembly Required: Yes

Max. Power: 1000W

Displacement: 33CC

Engine Type: Single Cylinder, Air Cooling, 2-stroke

Impact Frequency: 2300~4000bmp

Impact Energy: 30J

Max. Torque and Speed: 1.45N.m/5300rpm

Fuel Mixture Ratio: 25:1 (Gasoline: Motor Oil)

Fuel Tank Capacity: 0.9L/0.2gal/30Oz

Fuel Consumption Rate: ≤0.5L/0.1gal/16Oz Per Hour

Max Drilling Diameter: 40mm/1.5inch

Starter System: Hand Pull Start

Noise: ≤104dB

Net Weight (Exclude Drill): About 10.5kg/23lbs

Product Size: 67.2*25*24.5cm/26.5*9.8*9.7in

Engine Size: 36*32mm/14*12inch

Drill Size: 22*350mm/0.8*13inch

Point Chisel Size: 35cm/13.8in

Flat Chisel Size: 16*280mm/6*11inch

Auxiliary Handle Length: 13cm/5inch

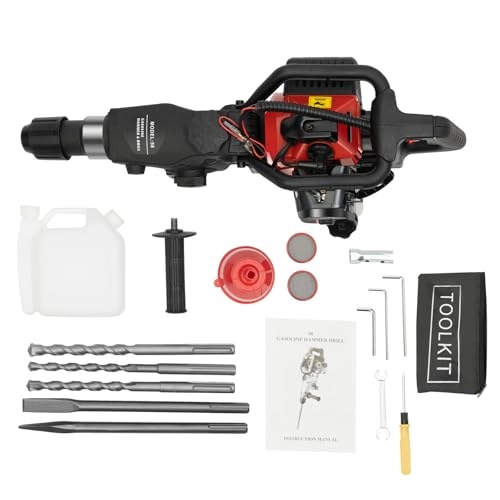

Package Included:

1* Hammer Drilling Machine

3* Drills

1* Point Chisel

1* Flat Chisel

1* Fuel Tank

1* Funnel

Other Accessories for Assembly

Notes:

1.Before each use, please check whether the oil bubble is full of oil. If the oil is not enough, you need to press the carburetor until the oil is full. It is best to press the carburetor every time you use it. Please replace the air filter sponge after 36 hours of continuous operation to avoid damage to the engine cylinder.

2.Please clean up the oil in the carburetor if it is not used for a long time. The carburetor does not need to be replaced if it can be used normally.

3.Please add lubricating oil regularly to ensure strong power.

4.Please do not touch the muffler exhaust hole to avoid scalding.

5.The mixing ratio of gasoline and engine oil is generally 25:1, but due to the difference of engine oil quality in different regions, we recommend the ratio of 20:1. Please do not use cheap inferior engine oil.
