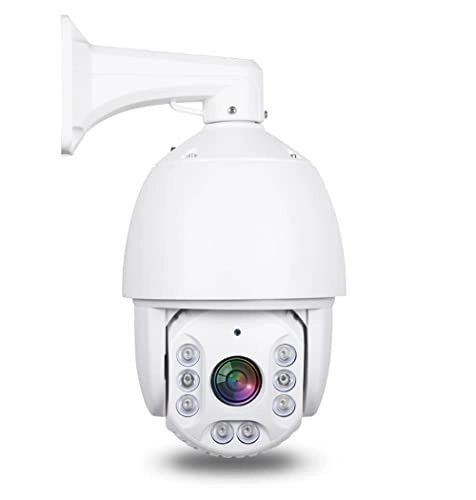

Name and Description:Full HD 1080P AHD IR High Speed Dome Camera
Image Sensor 1/2.8" CMOS
Effective Pixels2.0 Mpixes Horizontal Resolution1080P
Min. Illumination0.05Lux :Color/0.005 Lux:B/W
Zoom36X , f=4.6mm~152mm,
D/N( ICR-Cut)Day/NightAUTO/COLOR/BWSNR≥50dB(AGC OFF)
WDR:DWDR White BalanceAuto/Indoor/Outdoor
Luminary:Array Φ20 8pcs
Night vision distance 120M
Lamp control Auto, Manual, by Zoom
Dome Features:
CPU Type:32 bit ARM CPU
Address0~255(soft address and hard address)
Pan Range:360° continued rotation
Tilt Range:0~90°(Auto Flip)
Manual pan speed0~240º/S
Manual tilt speed0~120°/S
Preset speed:400°/S
Actual preset Accuracy:±0.10°
Preset points:255
Operation OSD language:Chinese /English
OSD Display:dome menu & camera menu adjustment
Home position:Return to preset/scan/pattern/ if there is no command in the
specified period.
Operation recall:recall operation zone
Tour:8
Communication Protocol:PELCO_P、PELCO_DIntelligent
Auto Scan Non-limited position of manual continued Auto scan Genera
Work temperature:External–35℃~55℃
Work Humidity:0%~90% (Non condensing)
Power:AC24V/DC12V±10%; 4A
Consumption:50W
Communication:RS-485&Coaxial cable control
Video Output:1080P HD-AHD
Package Contents
1 x Speed Dome PTZ Camera
1 x Wall Mount Bracket (If you need ceiling mount bracket please leave a message)
1 x Power Supply
1 x Screw Kit
1 x User Manual
