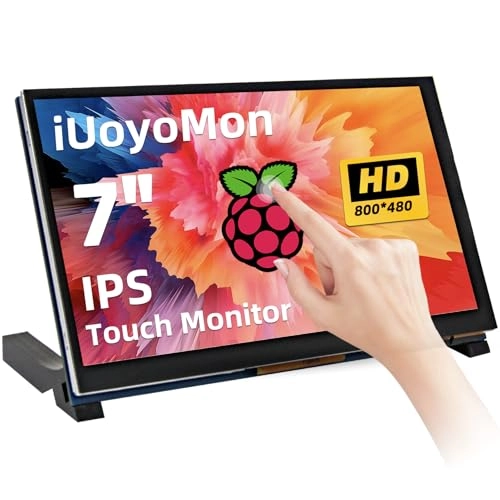

iUoyoMon DSI7 - DSI7-IYX 7 Inches 800x480 pixels

Important note:

• This kit does not include RPi and its accessories.
• This monitor does not have an HDMI port and is only compatible with certain models of RPi.

Parameters:

Size: 7 inches

Resolution: 800x480 pixels

Refresh rate: 60 Hz

Screen type: IPS wide viewing angle

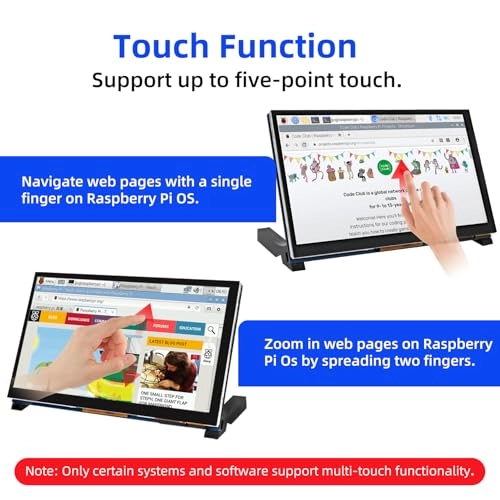

Touch type: 5-point touch capacitor

Interface: MIPI DSI

Overview:

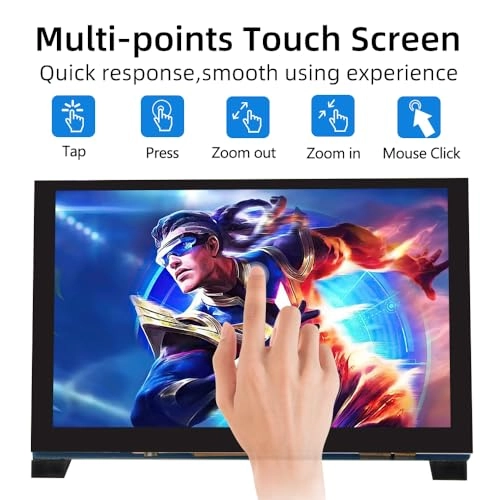

• This is a 7-inch IPS display with a 5-point touch IPS capacitive screen, suitable for Raspberry Pi.

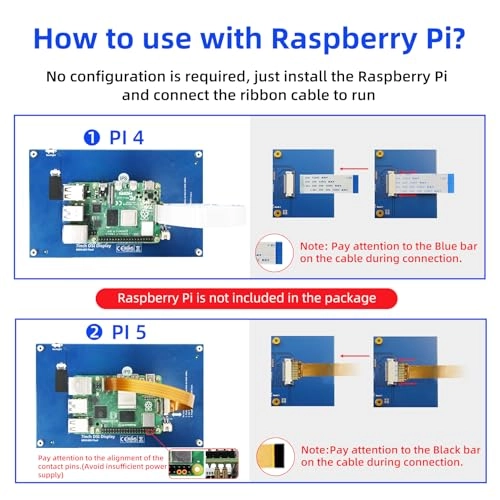

• You just need to connect to the displayport (marked as CAM/DISC on RPi 5, and it is marked as such on RPi 4 and previous models).
• If the display is incorrect, just modify the configuration file to make it correct.
• We provide free technical support to help you with any questions and problems.

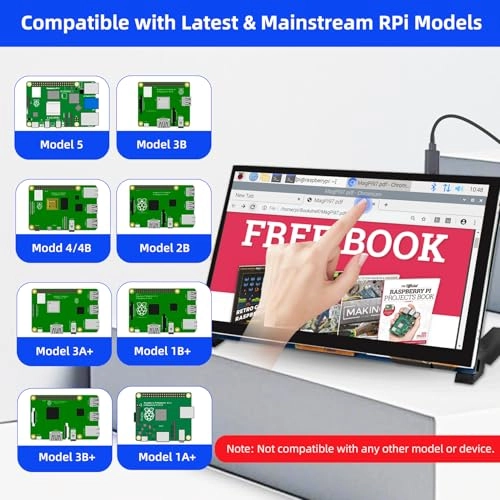

Compatible models:

RPi 5, 4B, 3B+, 3B, 3A+, 2B, 1B+, 1A+

(Note: This monitor does not have an HDMI port and it is not compatible with any other devices.)

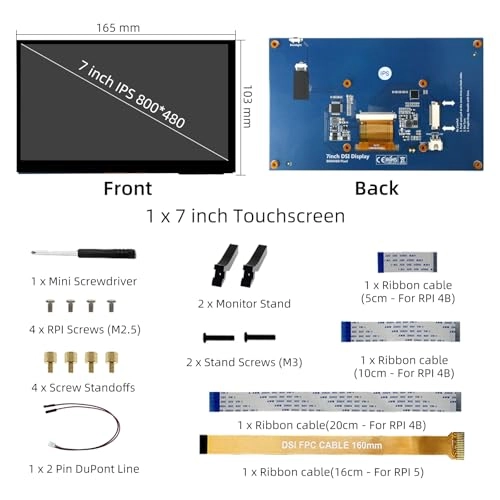

Package includes:

1 x 7-inches RPi touchscreen

1 x 16cm ribbon cable for Raspberry Pi 5

1 x 5cm ribbon cable for Raspberry Pi 4

1 x 10cm ribbon cable for Raspberry Pi 4

1 x 20cm ribbon cable for Raspberry Pi 4

1 x 2-pin DuPont line

1 x installation kit *1.
