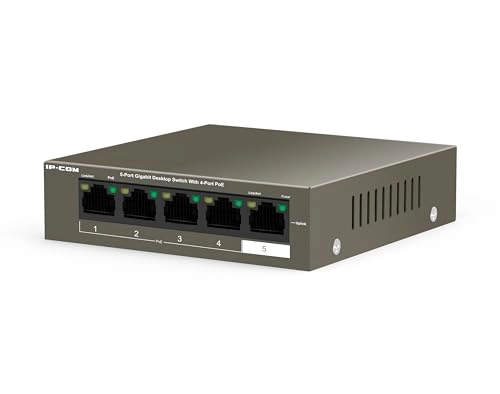

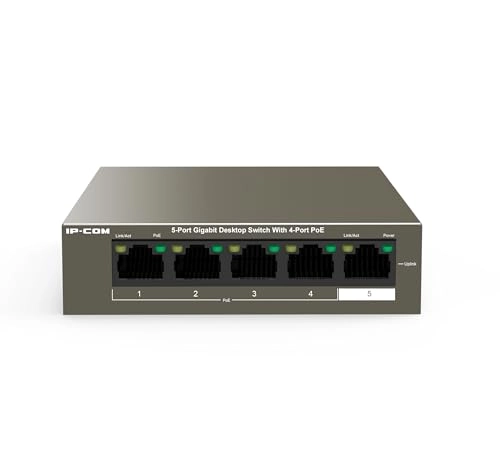

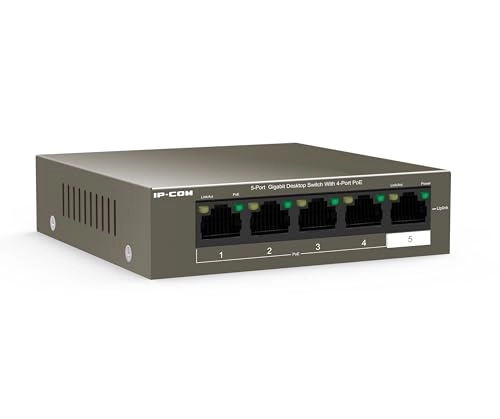

IP-COM Networks IP-G1105P-4-63W 5-ports

Name: IP-COM Networks IP-G1105P-4-63W 5-ports
Brand: IP-COM Networks
SKU: 345731
Availability: InStock

Best offer

AED

150⁰⁰

Key Features

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Switching capacity: 5.6Gbit/s
MAC address table: 2000entries
Forwarding rate: 7Mpps
10G support: No
Product colour: Bronze
Packet buffer memory: 1MB
Total Power over Ethernet (PoE) budget: 58W
LED indicators: Activity, Link, PoE, Power
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE): Yes
Rack mounting: No
Stackable: No

Specifications

Features

Mean time between failures (MTBF)

100000 h

Rack mounting

✗

Stackable

✗

Product colour

Bronze

Packet buffer memory

1 MB

Switching capacity

5.60 Gbit/s

MAC address table

2000 entries

Forwarding rate

7 Mpps

Weight & dimensions

Height

26 mm

Depth

100 mm

Width

100 mm

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

63 W

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

58 W

Design

Housing material

Steel

LED indicators

Activity, Link, PoE, Power

Packaging content

Manual

✓

Power supply included

✓

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

✗

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 90 %

Technical details

Switch type

Unmanaged

Logistics data

Harmonized System (HS) code

85176990

Product Details

G1105P-4-63W is a IP-COM PoE switch that offers 5 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as VLAN, to help reduce cabling costs of IP terminals like APs and IP cameras. Lightning Protection 6KV： The ports and embedded power can provide lightning protection of up to 6kV. It also provides PSE shortcircuiting protection, PoE overloading, power over temperature, over voltage and surge current protection. 58W PoE power supply： Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras. One-Key VLAN： If "vlan mode" is enabled, Port 1-4 will be isolated respectively but can communicate with the 5 port. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.
