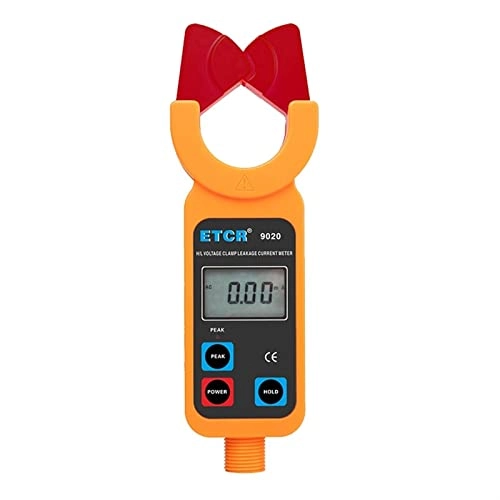

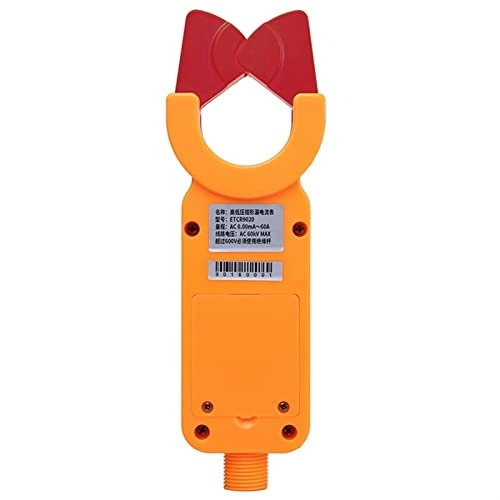

HJBEPU ETCR9020 - 48mm

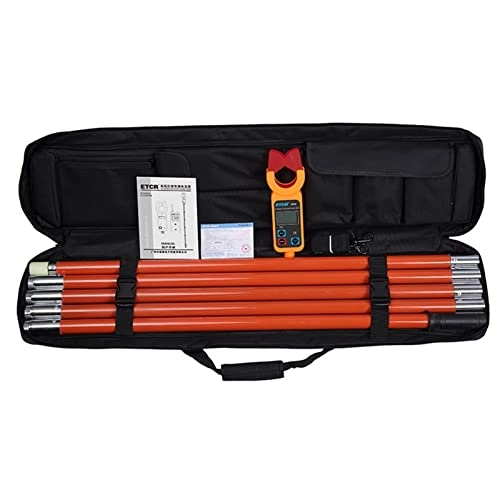

Feature: 1. The current clamp adopts magnetic shield and CT digital integration technology, with strong anti-interference, high accuracy and stable test. 2. The innovative automatic plug and pull structure makes the meter easy to clamp or withdraw the tested wire by pressing or pulling the insulation rod, saving time and convenient. 3. Peak hold, data hold and data memory function. Technical Specification: Model:ETCR9020 H/L Clamp Leakage Current Meter Measurement Range:AC 0.00mA~60.0A Test Accuracy: 0.00mA~999mA: ±1%±5dgt 1.00A~60.0A: ±1.5%±5dgt CT Size:dia 48mm Meter Dimension:76mm×255mm×31mm Meter Weight:3450g (include insulation rod) Power Supply:6V DC(LR03×4pcs alkaline dry batteries) LCD Dimension:47mm×28.5mm Sampling Rate:2 times/s Communication Mode:Wireless transmission, straight distance 30m (only for ETCR9020B) PEAK Hold:Automatically hold the highest test value (only for ETCR9020) Data Hold:In usual test mode, press HOLD key to keep data, “HOLD” symbol display Data Storage:99 groups , stored process display MEM symbol, “FULL” symbol display indicate that storage full Data Access:“MR” symbol indication, can access all storage data Overflow Display:Exceed measure range overflow function: “OL A” symbol display Automatic Shut Down:15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption Battery :When battery is lower than 4.8V, low battery symbol “” display and remind to replace battery. Line :Below 60kV current test with insulated skin wire; below 35kV bare wire test (operate with insulation rods) Insulation Rod Dimension:dia 32mm 1M x 5PCS Insulation Rod Withstand :110KV ( 5PCS insulation rod connection) Working Temperature:-10℃~50℃;below 80%Rh Accessories:Meter: 1PCS; Insulation rod (1m): 5PCS; Tool bag: 1SET
