GruDawu Backup Camera - 12-LED Night Vision AV/RCA 420 TV Lines

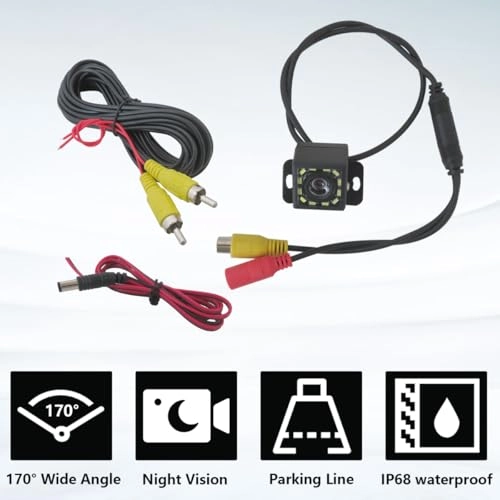

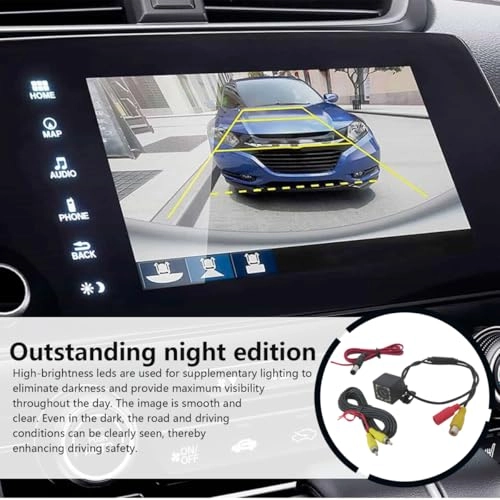

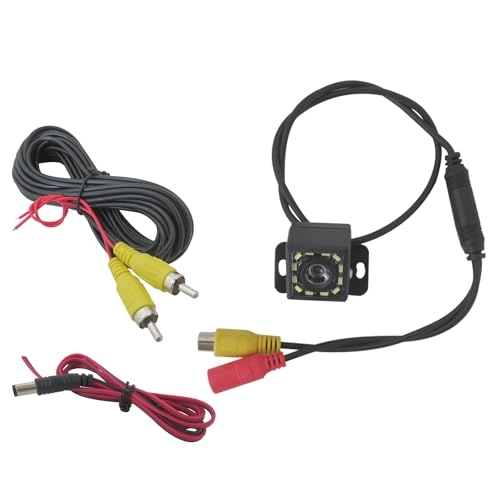

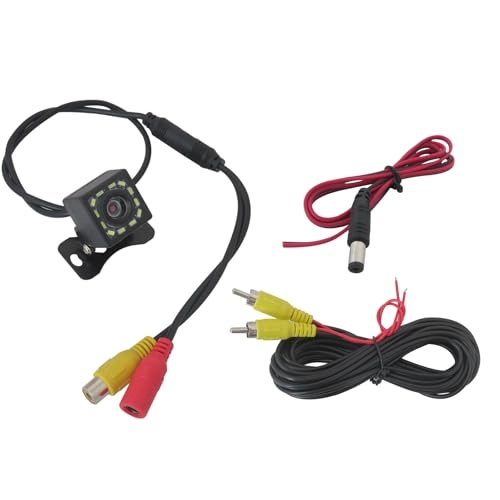

Back Up Camera for Cars and Trucks Attentions This rear view camera is not compatible with encrypted monitors. Features Wide Compatibility: Works with car stereos, dash cams, or monitors that have AV/RCA ports. Accurate Parking Guide Lines: Enhances driving safety by providing visual guidance. 12-LED Night Vision: Ensures a clear rear image in low-light conditions. Waterproof Design (IP66): Reliable performance in rain without water damage concerns. 150° Ultra Wide Viewing Angle: Captures a comprehensive view of the rear area. Easy Installation: Can be conveniently mounted behind the license plate or bumper. Package Content 1 x Rear View Camera 1 x 6M Video Cable 1 x Power Cable Note A printed installation manual is not included in the package. Specifications Image Sensor: 1/4" Color Sensor TV System: NTSC (Default) / PAL (Upon Request) Minimum Illumination: <0.5 Lux Waterproof Rating: IP66 Resolution: 420 TV Lines Lens Viewing Angle: 170° Operating Voltage: 12V DC Wiring Guide Summary 1. Camera Power: Connect the red wire to the reverse light's positive and the black wire to the negative. 2. Video Signal: Plug the yellow RCA cable into the radio's "CAMIN" or "RCAM" port. 3. Trigger Signal: Connect the short red wire near the radio to the head unit's reverse trigger wire, and the one near the camera to the car's reverse light positive.
