GME Technology LLC 236

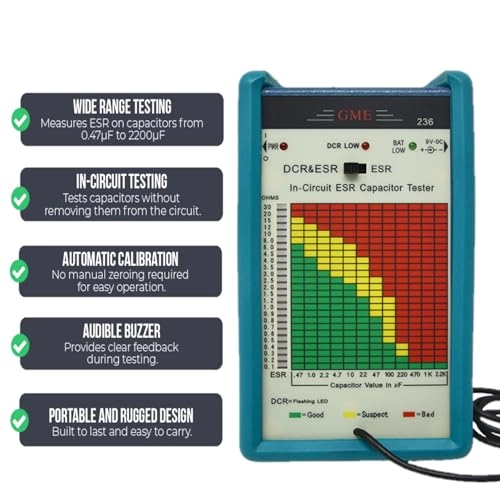

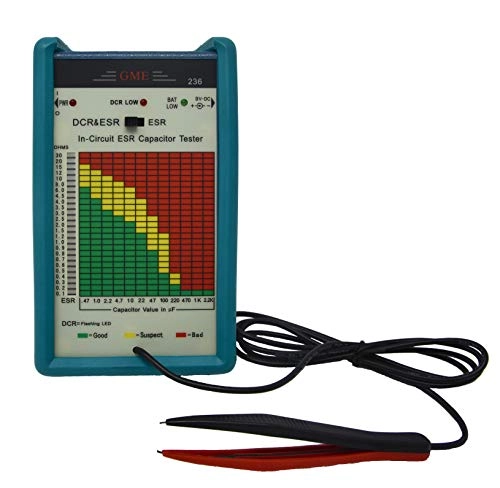

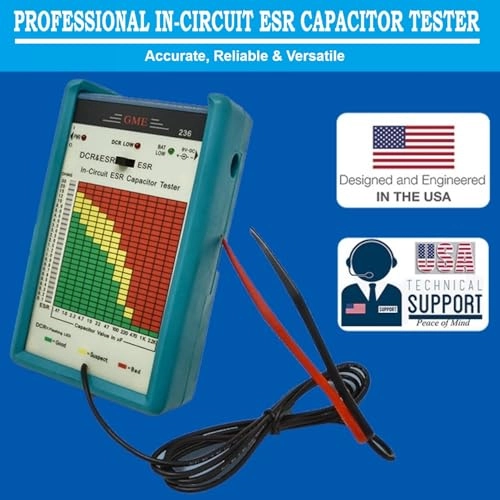

Description: Model 236 In-circuit ESR & DCR capacitor tester is designed to measure ESR (equivalent Series Resistance) on capacitors range from 0.47µF to 2200µF, in or out of circuit. The ability to troubleshoot in-circuit saves time, making the 236 a must for anyone that tests or trouble- shoots PCB (printed circuit boards). 100 kHz output test frequency and using a low 15 mVp-p output test voltage that will not turn on any solid state devices during testing for accurate test result. Model 236 is microprocessor controlled and automatically discharge capacitor under test. Features: In-Circuit ESR & DCR testing Test capacitors range from 0.47µF to 2200 µF Microprocessor controlled Automatic discharges capacitor under test 25 LED indicators Technical Specifications: 100 kHz output test frequency 15 mVp-p output test voltage ESR Measurement: 0.1 – 30 ohm DCR Measurement: 0.5 – 30 ohm One-handed tweezer test probe included Power: Standard 9V Battery or external AC adapter Dimension: 5.7”(H) x 3.8”(W) x 1.5”(D) Package Contents: One (1) - Model 236 In-Circuit ESR & DCR Capacitor Tester One (1) - Protective Rubber Holster One (1) - User Manual
