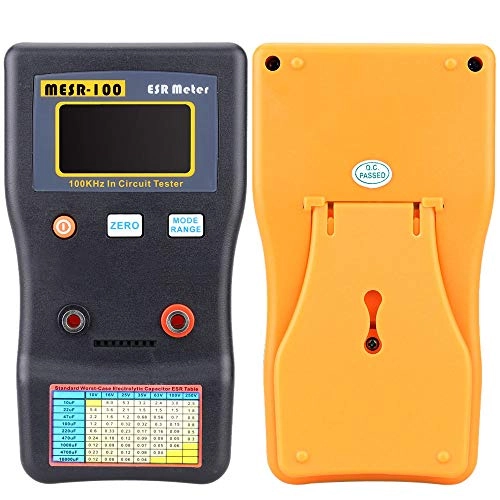

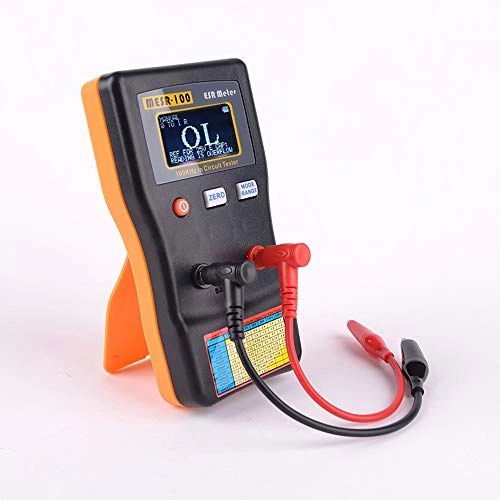

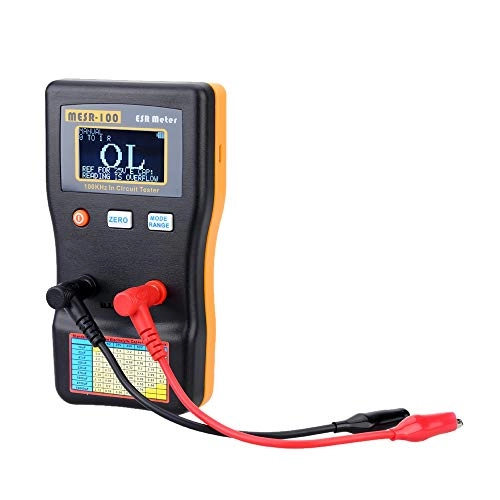

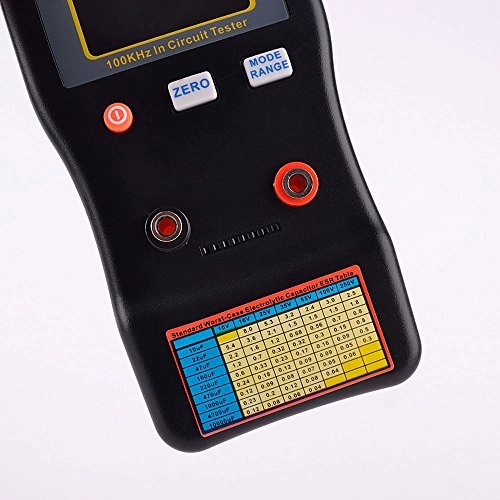

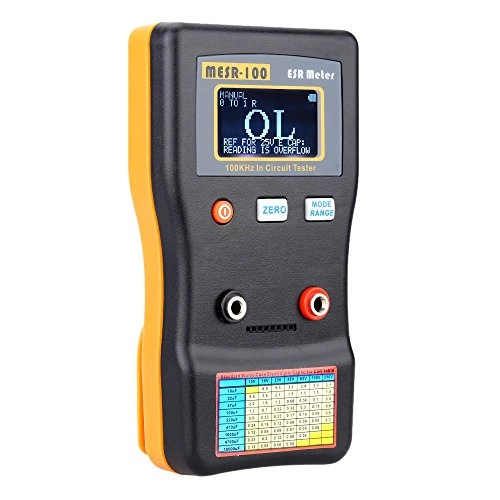

Moobody787881504772 MESR-100

ESRR 100 in 2 automatic measurement range and low ohm scale from 0.001 to 100.0R, support circuit test. Using 100KHz real sine wave to measure ESR value, which is equal to the manufacturer's intensive testing method.

Specification

• Color: Black
• Range accuracy (after zero, refresh time (manual mode)
• Tested with 1,10,100R Auto Mode Takes 0-2 Seconds, More Time
• Resistor) depends on capacitance value.
• 0.000 to 1.000 R 1%+2 Digits 0.4S
• 1.000 to 10.00 R 1%+1 digit, 0.4s
• 10.00 to 100.0R 2%+1 digit, 0.4 seconds

• Accuracy: up to 1% (details in table above)
• Wide measuring range: >1uF
• High accuracy: 4 digits, or 0.001Ohm @ 1Î range
• Measuring voltage: <40mV RMS (test voltage)

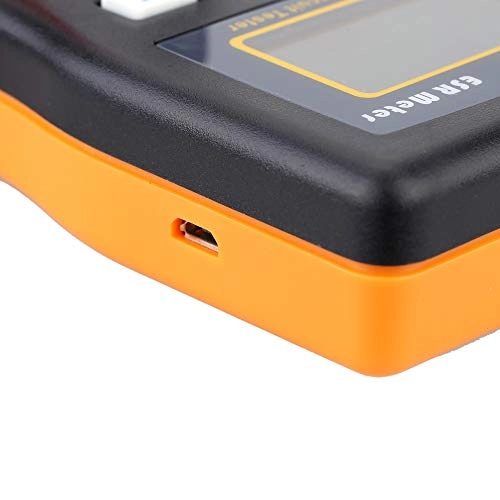

• External Power: 5V Micro USB
• Working current: 0.02A
• Battery: 2 * 1.5V AA battery(not included)
• Battery life: >80 hours
• Product size: approx.14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in
• Product weight: about 139.6g / 4.9oz
• Package size: about 17 x 9 x 5cm / 6.7 x 3.5 x 2.0 inches
• Package weight: about 218g / 7.7oz

Packing List

• 1 * Capacitance Meter
• 2 * Test Clips
• 1 x User Manual
