FVGshshDH UT611

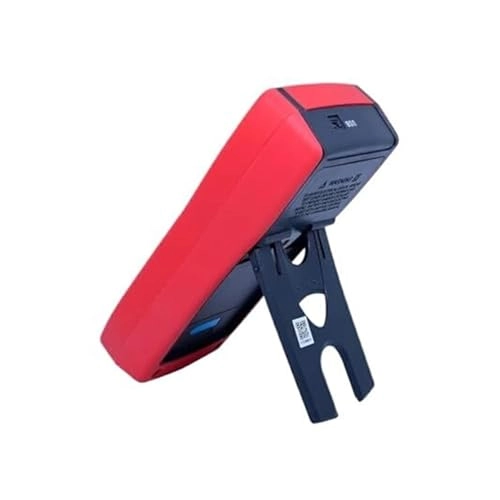

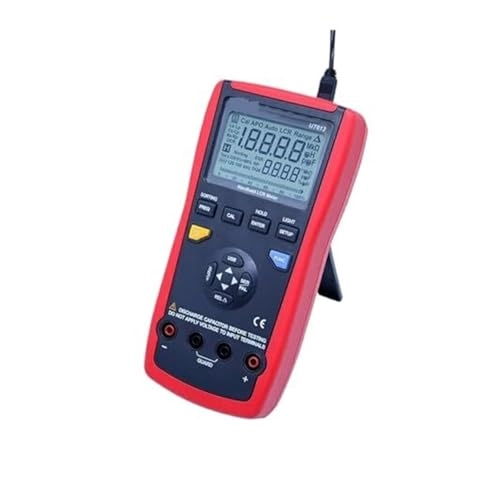

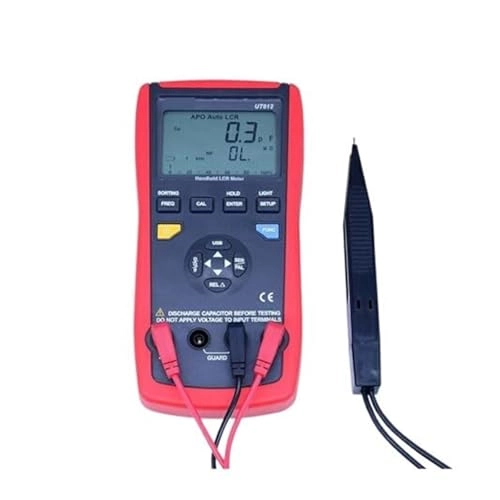

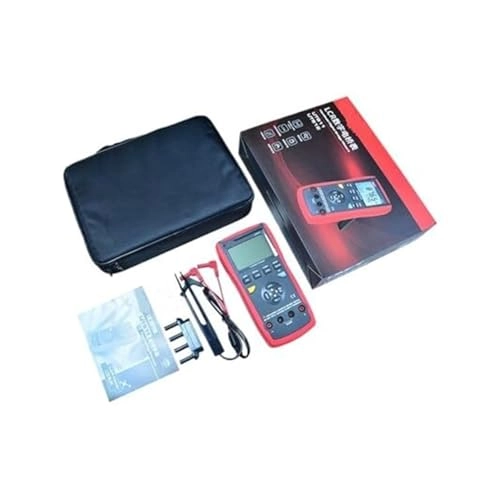

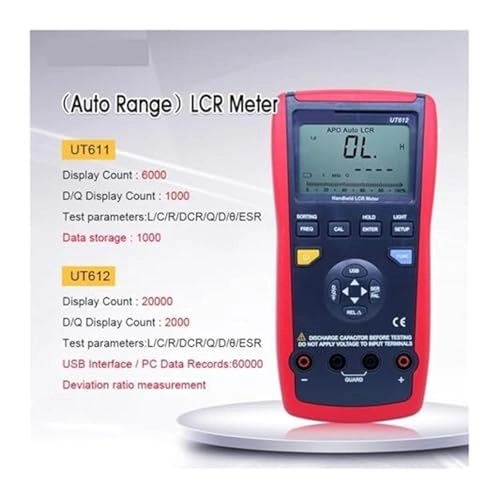

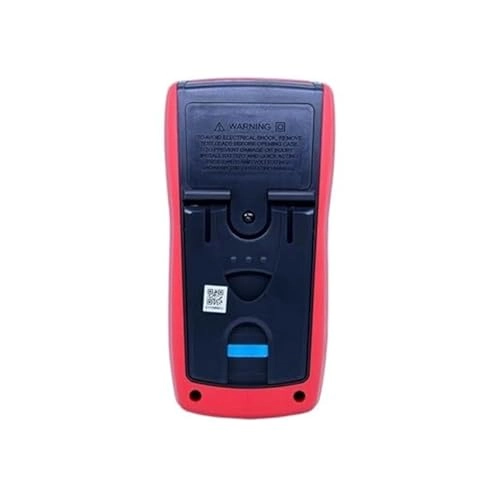

The Digital LCR Meter UT611 is designed for precision measurement of inductance, capacitance, and resistance, making it an essential tool for electronics enthusiasts and professionals alike. With a measurement range for inductance from 600µH to 200H, capacitance from 600pF to 10mF, and resistance from 60Ω to 20MΩ, it provides reliable and accurate data with a tolerance of ±(0.5%+5). The device features a clear digital display that makes it easy to read results, while the built in calibration functions help maintain measurement accuracy. Equipped with a USB interface, the UT611 allows for easy data storage and transfer, supporting up to 60,000 records. It operates at multiple test frequencies (100Hz, 120Hz, 1kHz, and 10kHz) and offers various measurement modes for versatility. The meter is powered by a 9V battery or USB, making it convenient for both fieldwork and stationary use. With its compact design and user friendly features, the Digital LCR Meter UT611 is for anyone needing reliable performance in testing electronic components. Specifications (as provided) Specifications Range BestAccuracy Model UT611 UT612 Inductance(H) 600uH 200H ±(0.5%+5) 20uH 2000H ±(0.5%+5) Capacitance(F) 600pF 10mF ±(0.5%+5) 200pF 20mF ±(0.5%+5) Resistance() 60 20M ±(0.5%+5) OperationalVoltage 0.5Vrms 0.6Vrms TestParameters L C R DCR Q D ESR Features DisplayCount 6000 20000 D QDisplayCount 1000 2000 D QResolution 0.001 AutoRange Real TimeDisplayTestFrequency MeasurementMode Series Parallel AutoPowerOff LowBatteryIndication 6.8V DataHold RelativeMode USBInterface USBInterface PCDataRecords 60000 DataStorage 1000 LCDBacklight AnalogBarGraph 30 26 DeviationRatioMeasurement ComparsionFunction CalibrationFunction OutputImpedance 120 AutoLCRSmartCheckandMeasurement GeneralCharacteristics Power 9VBattery(6F22)orUSB battery Not included !! LCDSize 40mmX63 mm ProductColour RedandGrey ProductNetWeight 374 g ProductSize 96mmX193mmX47 mm
