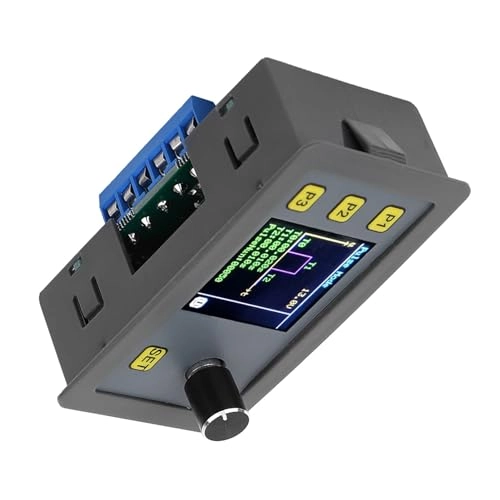

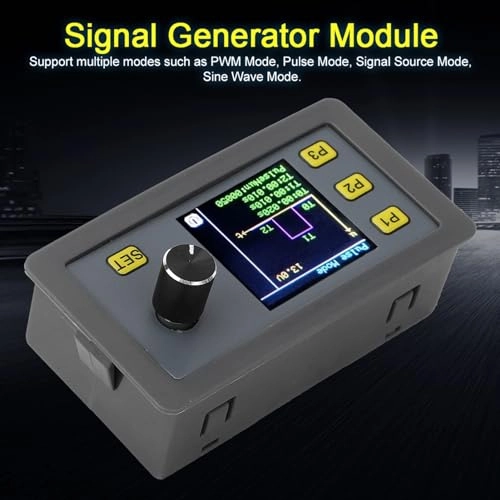

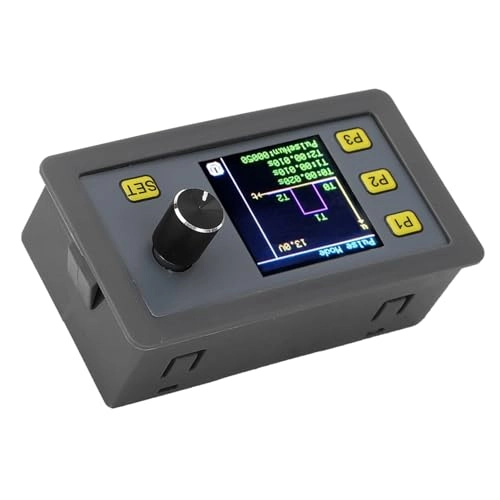

Fauitay WSFG-06 - PWM Sine Wave 4-20mA

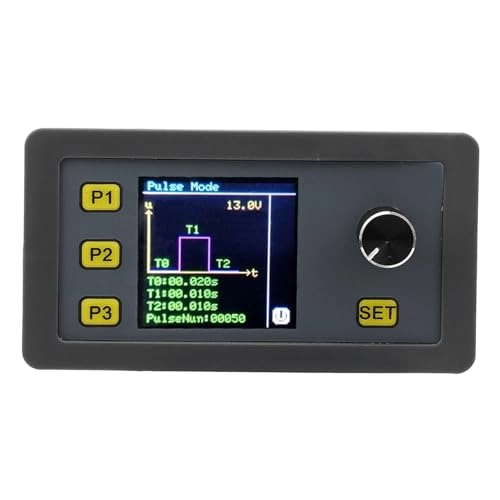

Specifications: Item Type: Signal Generator Module Model: WSFG-06 Supply Voltage: 7-24V Product Function: PWM Mode, Pulse Mode, Welding Mode, Sine Wave Mode PWM Mode: Voltage, frequency, duty cycle adjustable, accuracy up to 0.1%;voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100% Pulse Mode: Initial delay T0: 0-60S, high level duration T1: 0-60S, low level duration T2: 0-60S, pulse number PulseNun: 1-6000 Signal Source Mode:Voltage source2-10V,source 4-20mA Sine Wave Mode: 1-1000Hz Signal Load Capacity:Output up to 30mA (Note: This product output signal source, can not directly operate high power load) Ambient Temperature: -10-+70°C Module Size:79x43x41mm / 3.11x1.69x1.61inch Aperture Size: 76x39mm / 2.99x1.54inch Packing List: 1 x Signal Generator Module
