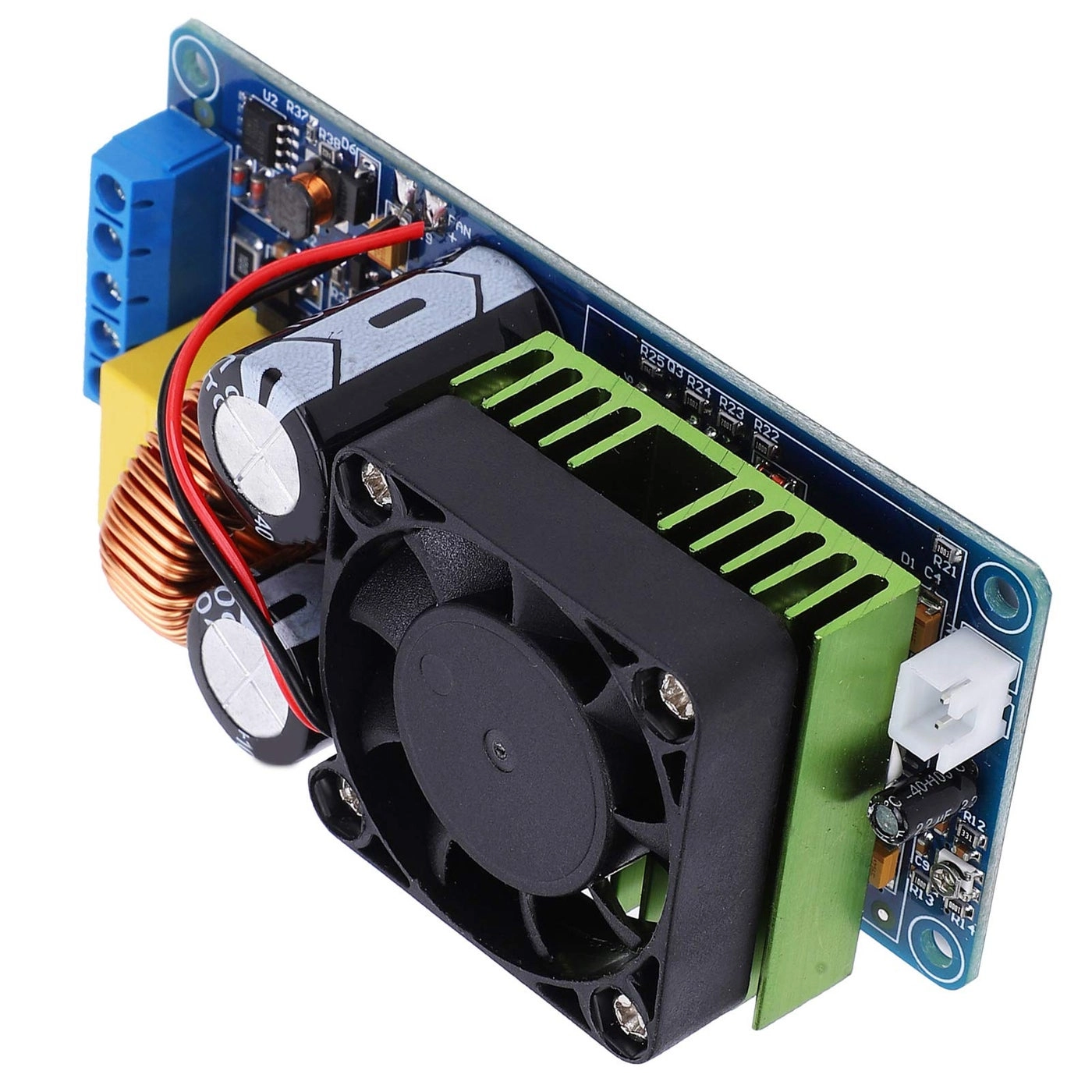

Fafeicy IRS2092S - Class D Mono channel 500W

Manufacturer: Fafeicy Brand Name: Fafeicy Unit Count: 1.0 Count

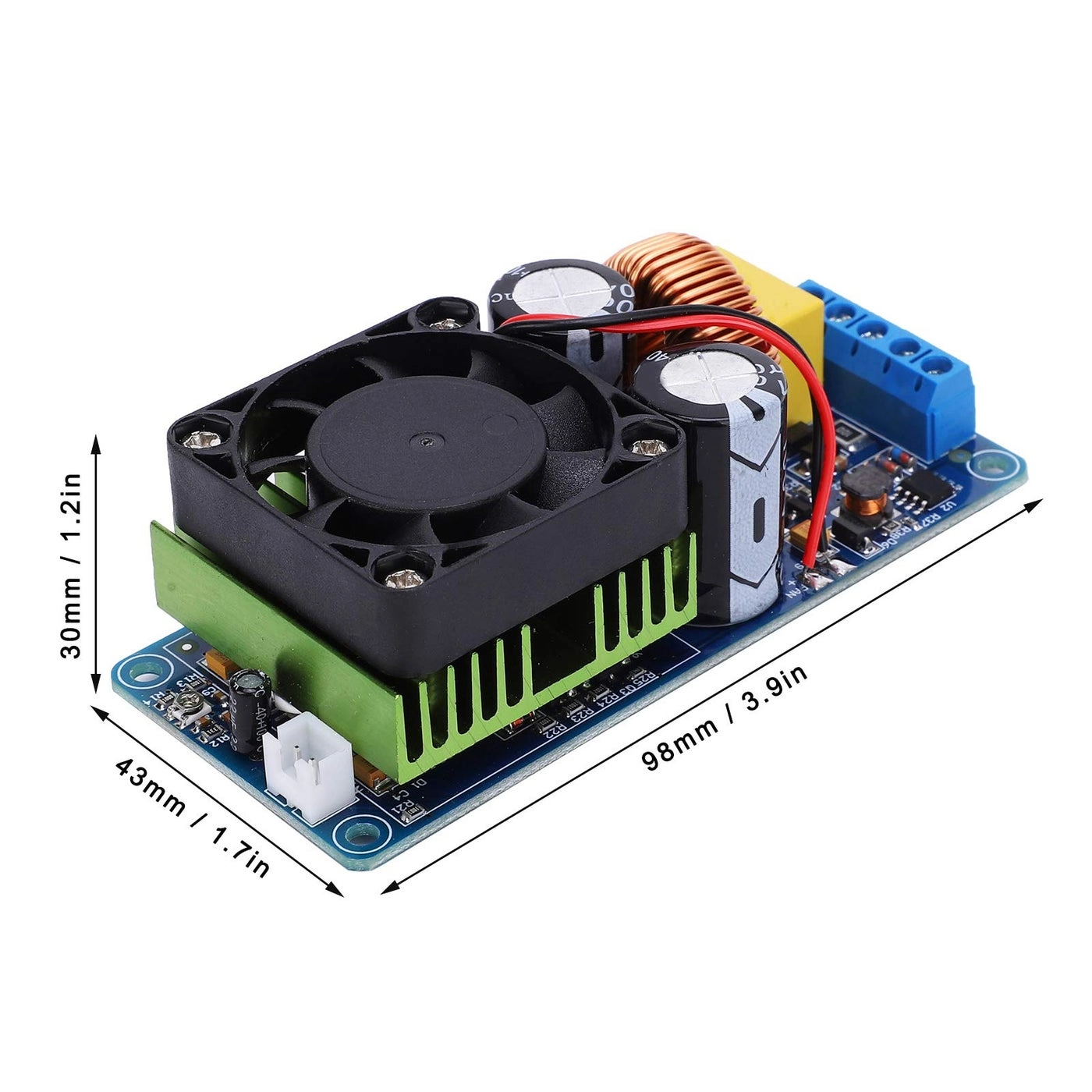

Specification: Item Type: Digital Amplifier Module Material: Plastic Model: IRS2092S The Rated Output Power: 500W (+/- 65V power supply, 4 ohm load, distortion 10%) Efficiency: ≥ 90% SNR: 90dB The Total Harmonic Distortion: 380W (+/- 65 power 4 ohm speaker, distortion Less than 0.1%) 280W (+/- 65 power 8 ohm speaker, distortion Less than 0.1%) Frequency Range: 20Hz-20KHz Speaker: 4-8ohm Voltage Magnification: 36 times Input Sensitivity: 1.5V (RMS) Output Short Circuit Yes That Output DC Bias Speaker Yes Over-Temperature Yes, FET temperature higher than 100 Celsius, turn off the output! Amplifier Board Size: Length x width x height = Approx. 98 x 43 x 30mm / 3.9 x 1.7 x 1.2in Use Precautions: Recommended Power Supply: DC58-70V Recommended 4-8ohm / 10-18inch speaker Carefully check before electricity, ensure the wiring is correct. Package List: 1 x Digital Amplifier Module Note: This Plate is a pure post stage amplifier, the sensitivity of the input of 1.5V rms, if your input voltage can't this value,recommend add preamp. Mono channel,for 2.0 channel need bid two. The rated output power: 500W (+/‑ 65V Power Supply, 4 Ohm Load, Distortion 10%) Efficiency: ≥ 90% This is pure power amplifier board, the sensitivity of the input of 1.5V rms, if your input voltage can't this value,recommend add preamp. Mono channel,for 2.0 channel need bid two.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
