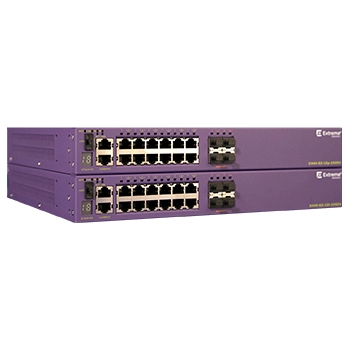

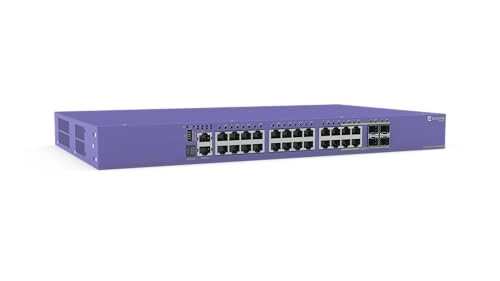

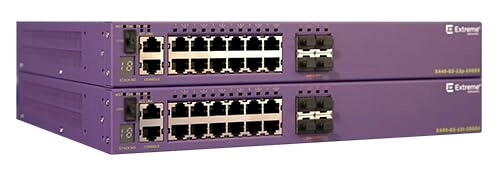

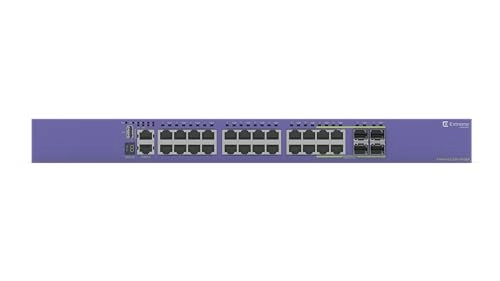

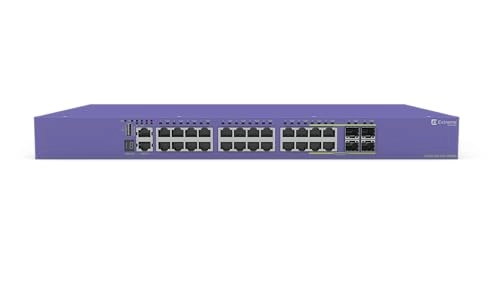

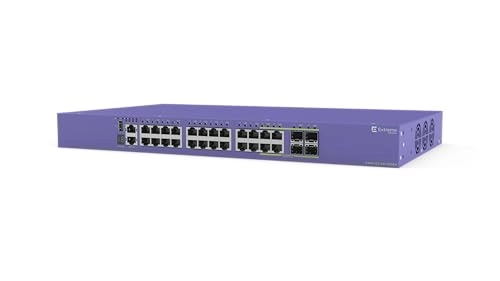

Extreme networks X440-G2 - 24-ports

Unavailable

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Wall mountable: Yes
Switching capacity: 95.2Gbit/s
Full duplex: No
MAC address table: 16000entries
Jumbo frames support: Yes
Forwarding rate: 128Mpps
Link aggregation: Yes
Flow control support: Yes
SFP module slots quantity: 4
Console port: RJ-45
Combo SFP ports quantity: 4
Memory type: DDR3-SDRAM

Specifications

Features

Internal memory

1024 MB

Processor frequency

1000 MHz

Quality of Service (QoS) support

✓

Rack mounting

✓

Product colour

Burgundy

Wall mountable

✓

Switching capacity

95.20 Gbit/s

Full duplex

✗

MAC address table

16000 entries

Jumbo frames support

✓

Forwarding rate

128 Mpps

Switch layer

Weight & dimensions

Weight

3660 g

Height

44 mm

Depth

254 mm

Width

441 mm

Management features

Web-based management

✓

Power

Power connector

DC-in jack

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

40 W

Power over Ethernet (PoE)

✗

Design

LED indicators

Yes

Computer system

Built-in processor

✓

Network

Networking standards

IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z

VLAN support

✓

Number of VLANs

4092

Link aggregation

✓

Flow control support

✓

Ports & interfaces

SFP module slots quantity

Console port

RJ-45

Combo SFP ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

0 - 60 °C

Technical details

Switch type

Managed

Memory

Flash memory

4096 MB

Logistics data

Harmonized System (HS) code

85176990

Solid state drive

Memory type

DDR3-SDRAM

Product Details

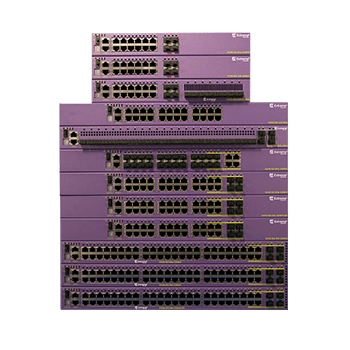

The ExtremeSwitching X440-G2 series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS, a highly resilient OS providing continuous uptime, manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching, flexible stacking, PoE-plus support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge. The X440-G2 Series easy-to-use, yet powerful, management services include role-based policies for controlled access to specific network applications. Select X440-G2 Series switches can also be cloud managed via ExtremeCloud, Extreme Networks innovative single-pane subscription-based management solution.

Files

X440-G2 Series Switch Quick Reference

mmo_33138835_1599724854_9352_2282.pdf

PDF• 777.3 KB

Product Brochure

mmo_33138835_1599724861_3277_23313.pdf

PDF• 487.6 KB
