OAP900
OAP900
OAP900
OAP900
OAP900
OAP900

Edimax OAP900

Best offer
AED
45000
AED
55000
-18%

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Number of SSID supported: 16
  • PoE adapter included: Yes
  • Antenna gain level (max): 14dBi
  • Maximum data transfer rate: 900Mbit/s
  • Placement: Pole, Wall
  • Number of connectors: 2
  • Frequency band: 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.7, 5.745 - 5.825 GHzGHz
  • Antenna connector type: SMA
  • Internal: No
  • Wireless isolation: Yes
  • Automatic channel selection: Yes
  • Ethernet LAN data rates: 10, 100Mbit/s
  • Product colour: White
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Quality of Service (QoS) support
✓
On/off switch
✓
Security algorithms
802.1x RADIUS, EAP, WEP, WPA, WPA2
Maximum outdoor range
30 m
Product colour
White
Antenna gain level (max)
14 dBi
Maximum data transfer rate
900 Mbit/s
Placement
Pole, Wall
Number of connectors
2
Frequency band
5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.7, 5.745 - 5.825 GHz
Antenna connector type
SMA
5 GHz
✓
2.4 GHz
✓

Weight & dimensions

Weight
592 g
Height
35 mm
Depth
271.80 mm
Width
120.90 mm

Management features

Web-based management
✓

Power

AC input voltage
48 V
Power consumption (typical)
10.60 W
Input current
1 A
Power over Ethernet (PoE)
✓

Wireless LAN features

VPN support
PPTP

Design

International Protection (IP) code
IP65
Reset button
✓
LED indicators
LAN, Power, Signal strength
Internal
✗

Packaging content

Mounting kit
✓
PoE adapter included
✓

Network

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11e, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az
Wireless isolation
✓
Automatic channel selection
✓
Ethernet LAN data rates
10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Operational conditions

Operating relative humidity (H-H)
0 - 90 %
Storage relative humidity (H-H)
0 - 90 %

Technical details

Certification
CE, FCC

Security

MAC address filtering
✓
Auto Wireless Distribution System (WDS)
✓
Number of SSID supported
16

Receiver

Receiver sensitivity
802.11a ≤-89dBm 6Mbp ≤-72dBm 54Mbps 802.11an(5G) ≤-89dBm MCS0 ≤-68dBm MCS7 ≤-86dBm MCS8 ≤-66dBm MCS15 802.11ac ≤ -83dBm MCS0 ≤ -56dBm MCS9

Logistics data

Harmonized System (HS) code
85176990

Product Details

Powerful Outdoor Solution with High Speed AC900 for Modern Business The OAP900 features an IP65 rated weatherproof housing and provides a premium wireless solution designed for SMBs which demand elite network performance. The product features the latest 2 x 2 IEEE 802.11ac technology for 5GHz wireless speeds up to 900Mbps. A wall or pole-mounted design and industrial-grade build quality combined with user-friendly operation and extensive feature set, make an ideal high-performance solution for demanding day-to-day enterprise operations.. For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. High-density capacity for up to 50 simultaneous clients ideal for BYOD workplaces or other environments with a high volume of clients and wireless devices, and fast roaming allows for seamless transitions between multiple access points. Power over Ethernet support (passive PoE) and an intuitive web-based management interface provide deployment flexibility and extensive management options for company MIS departments and network administrators. When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed, and the OAP900 offers the highest level of wireless performance on the market today.

Files

Product Brochure

mmo_32920053_1469878643_0304_8412.pdf

PDF• 911.4 KB

User manual

mmo_32920053_1469878659_7342_16073.pdf

PDF• 3.7 MB

Reviews

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Sign in to unlock newsletter access and stay in the loop

Allware
info@allware.com
+971522500911
World technology awards winner badge

Allware

  • About Us
  • Terms And Conditions
  • Privacy Policy
  • Contact Us

Partners

  • Why become a partner?
  • How to list your Online Shop?

Newsletter

  • Subscribe

Info

  • How Allware works
All Rights Reserved.
Allware does not sell products. Prices shown are aggregated from verified merchants.
Please enable location access or select an emirate
-
00:00:00
Prayer timings

Offers (2)

Amazon logo

2 offers

From
AED
450

Edimax OAP900 2 x 2 Single-Band Outdoor PoE Access Point

White
AED
55000
-18%
AED
45000

Price History

Price History Skeleton
Price History Shimmer Effect
Loading price history...

Similar Products

See all
HPE Instant On AP22

HPE Instant On AP22

AED
16800
8 offers
TP-Link TL-WA1201

TP-Link TL-WA1201

AED
12100
6 offers
Ruijie Networks RG-RAP2200(E)

Ruijie Networks RG-RAP2200(E)

AED
17500
15 offers
Ubiquiti UAP-AC PRO

Ubiquiti UAP-AC PRO

AED
22367
13 offers
-57%
TP-Link EAP610

TP-Link EAP610

AED
49900
AED
21000
10 offers
<1%
Ubiquiti U6-Mesh

Ubiquiti U6-Mesh

AED
64900
AED
64440
10 offers
TP-Link EAP225

TP-Link EAP225

AED
18500
10 offers
D-Link DAP-1665

D-Link DAP-1665

AED
11390
9 offers
TP-Link EAP245

TP-Link EAP245

AED
23900
9 offers
-5%
Ubiquiti U6-Pro-US

Ubiquiti U6-Pro-US

AED
58200
AED
55150
8 offers

More from Edimax

See all

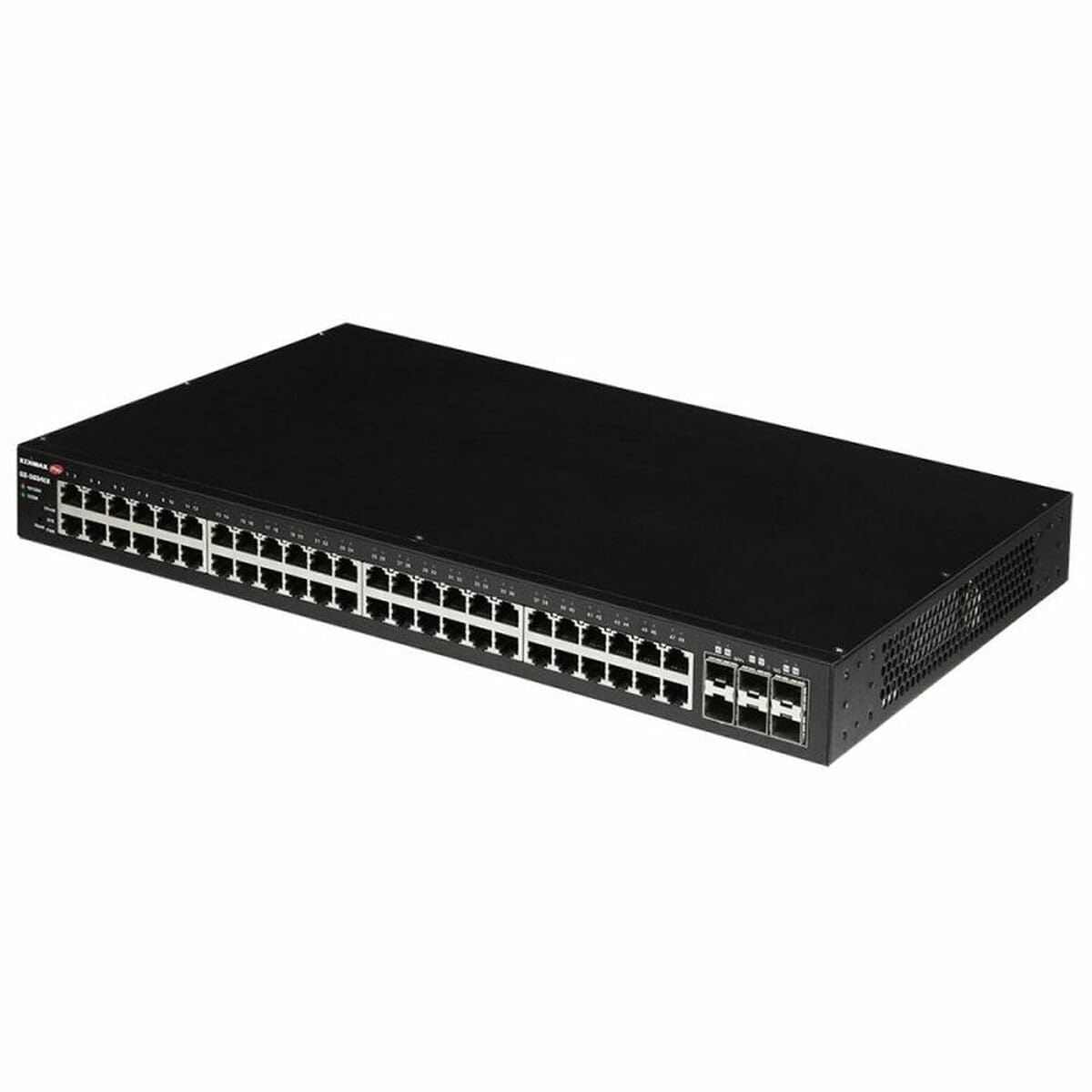

Edimax GS-5654LX - 54-ports
