Eaglerich Backup Camera - Night vision AV Interface 500(H)X582(V)

12-24V Truck Bus Lorry Car Rear View Reversing Parking Camera IR Waterproof

Alarm Type:Vehicle Backup Cameras

Voltage:12/24V supported

Highlight:

1. Works for Windows2000/XP/Vista & 7 (32bit) , This tool does not match abs and airbag system !

2. This item doesn't work on IOS.

Specifications:

1.Operating voltage: 12V, internal protection from short circuits/overvoltages

Nominal idle current: 45mA

Features:

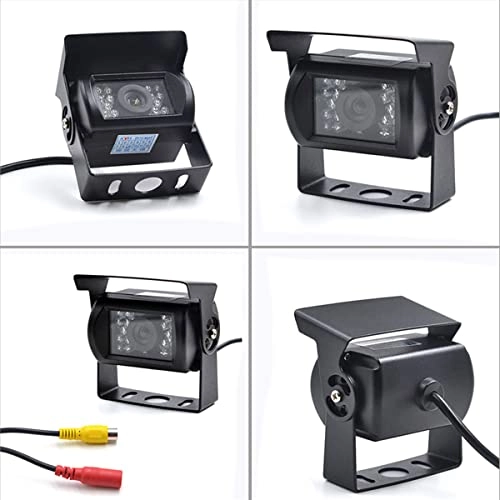

This rear view LED/Waterproof/Color camera can be connected with your in-car DVD player or rearview moniter.

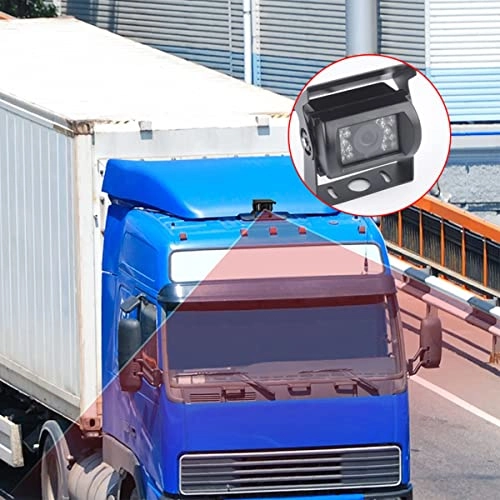

Heavy Duty Night Vision Rear View Camera For Reversing

For Trucks/ Caravans/ Buses/ Lorry

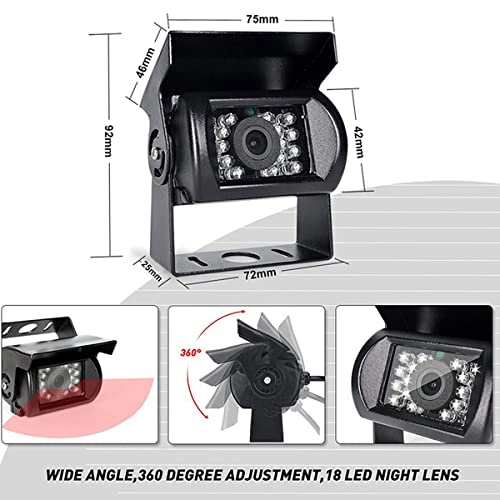

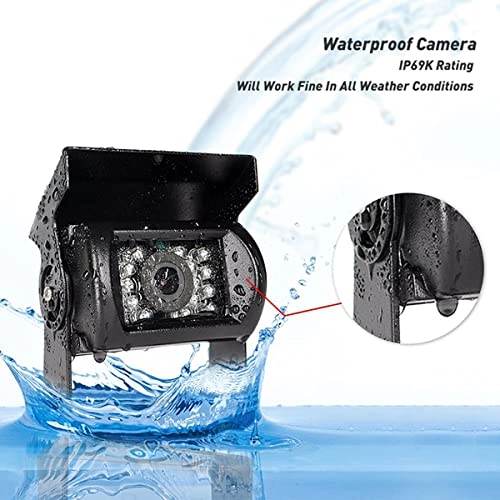

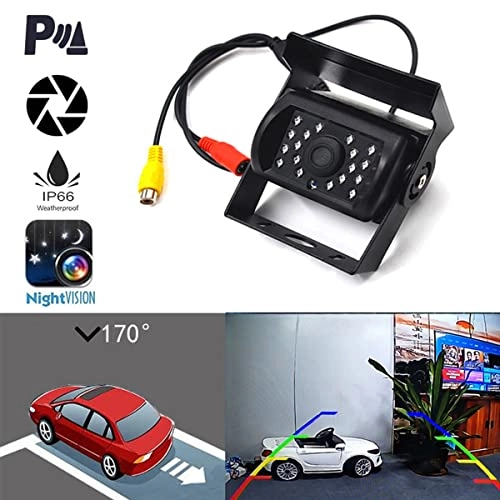

Waterproof IR camera with wide view angle

Color COMS Camera

Pick-up device 1/3'' CMOS

TV system PAL(CCIR) NTSC(EIA)

Scanning system PAL:265lines,50field; NTSC:525lines,60fied

Number of pixels 500(H)X582(V) 510(H)X492(V)

Horizontal Resolution 420TV lines

Scan frequency 50HZ 60HZ

Electronic Shutter 1/50-1/100(sec) 1/60-1/100,000(sec)

S/N Ratio 48db (AGC OFF)

Minimun llumination 0.8LUX/F1.2

BLC Open

White Balance Auto

Gain Control (AGC) Auto

Video Output 1.0Vp-p.75,BNC conntctor

Synchronous System Internal Synchronization

Operating Temperature -20C ~ +80C

Power Supply DC 12/24V

Focal Distance 30mm to infinte

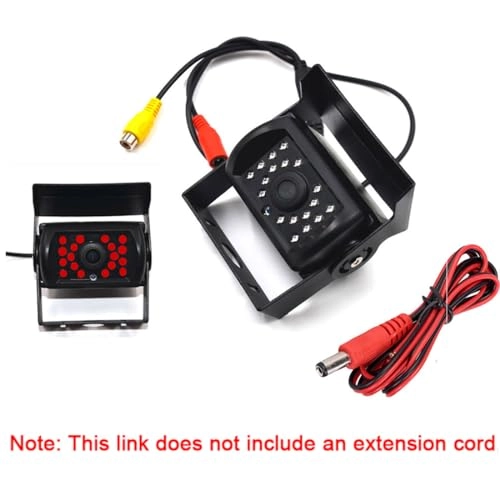

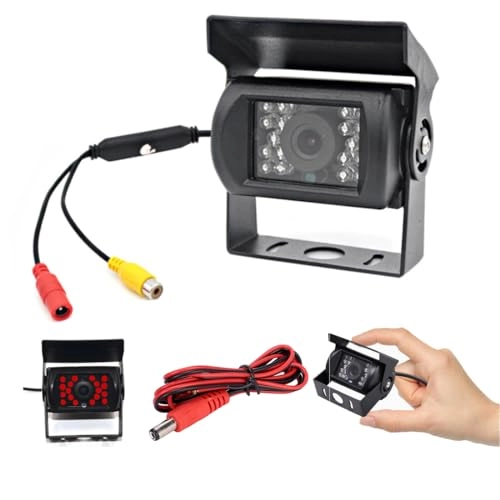

Package include:

1 x Camera (12v/24v compatible)

1 x Power Cable
