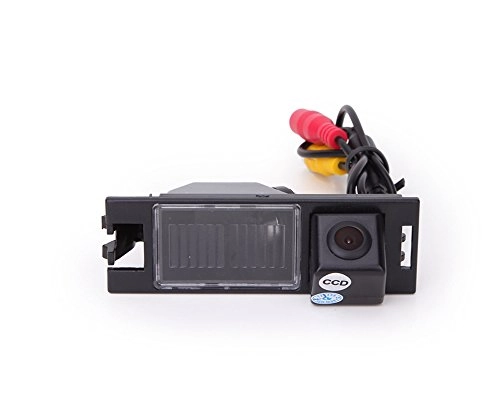

Dynavsal Wide Angle Car Camera - Night vision 628 x 586 pixels

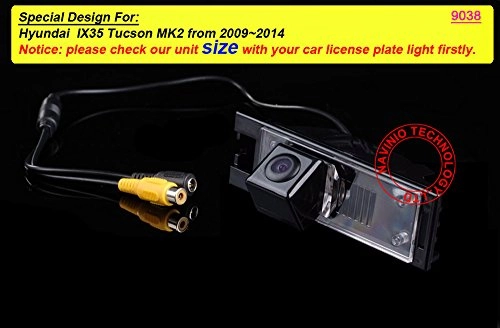

HD night vision rear view camera replacement for:

Hyundai IX35 Tucson MK2 2009-2014.

Product parameters:

1. TV system: NTSC (if you want PAL, please email us).

2. Resolution: 628 x 586 pixels/520 TV lines.

3. Lens angle: 150 ~ 170 degrees.

4. S/N ratio: more 48 dB (AGC-OFF).

5. Video colour: night vision colour (night version).

6. Video output: 1.0Vp-p, 75Ω.

7. Image device: 1/3 inch colour.

8. Sensing area: 5.78 x 4.19 mm.

9. Sync. System: internal

Voltage: DC 12 V + -1.

11. White balance: Auto

12. Waterproof: IP67.

Effective pixels: 628 x 586.

Electronic shutter: 1/60-1/10000 second.

Current consumption: ≤ 150 mA.

Current consumption: 90 mA max.

Temperature: -40°C to +60°C, RH95% max.

Minimum illumination: 0.3Lux/F1.2.

19. Operating temperature: -30°C to +50°C, RH95%.

20. Top quality 1/3 inch colour sharp LCD, other sellers are cheap 1/4 inch colour CMOS LCD.

Installation diagram:

Our package includes children's easy diagram.

Package includes:

1 x rear view camera.

1 x power cable.

1 x 6 metre video cable.

1 x user manual.
