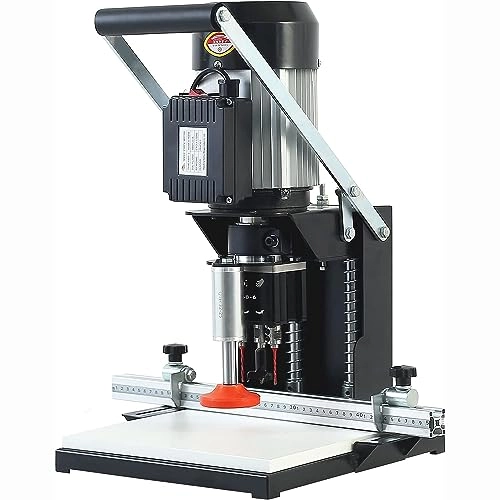

CQLXZ Hinge Drilling Machine

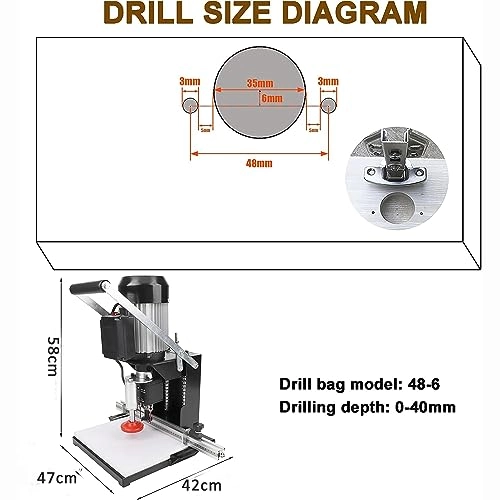

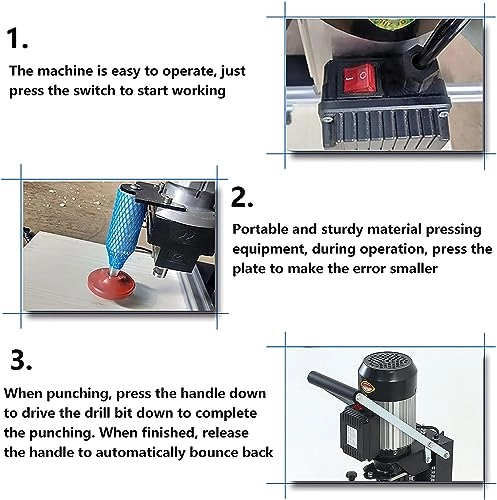

The drilling position can be adjusted longitudinally and horizontally, making it convenient and fast. With the switch control, precise drilling can be achieved. -The machine can complete hinge and screw holes on both sides simultaneously, equipped with a built-in pneumatic pressure device, can be operated with one hand, which greatly improves work efficiency. -This machine features high-quality national standard pure copper motor, high-quality punching bag, thickened iron plate body, waterproof thick table, compact body and easy to carry, making it highly sturdy. Technical parameters Rated power: 1100W Speed: 2880/min Processing depth: 0-40mm Punch Bag Model: 48-6 Ruler: 50 cm. Weight: 25 kg Handle: 10mm Thickness of processing plate: the thickest 4 cm Application: Hinge hole, three in one 15 blind holes Continuous working time: 10H Dimensions-LWH: 470X 420 X 580mm IMPORTANT NOTES: 1.Before operation, check whether the protection and pressure devices are complete, whether the components are normal, and whether the operating position is bright and shadow-free. 2.During the operation, make sure three tightness and three not, and pay attention to dressing well: tighten the body, waist and sleeves. Three not: no ties, no gloves, no hands. Pay attention to protecting your eyes. 3.Determine the direction of rotation of the shaft, select the rotor correctly and ensure the balance and sharpness in the center.
