B&W Cases DBR12TH

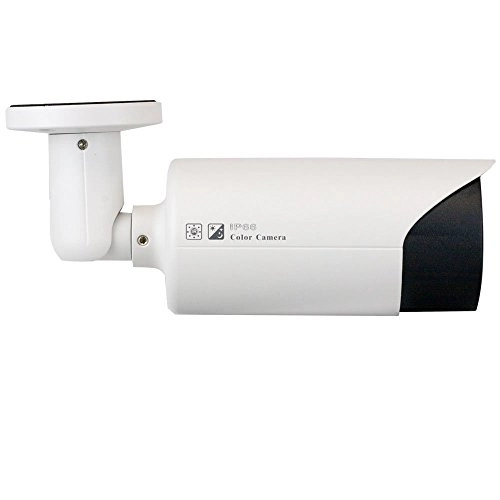

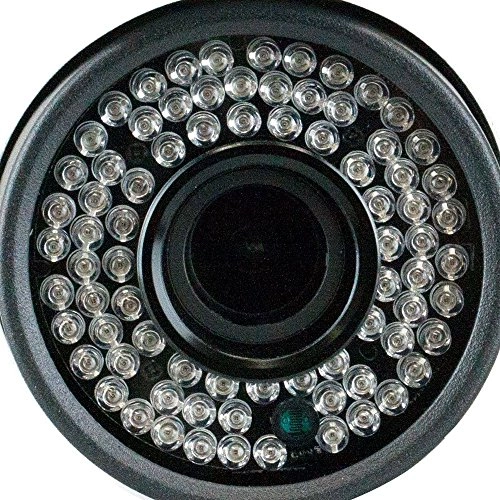

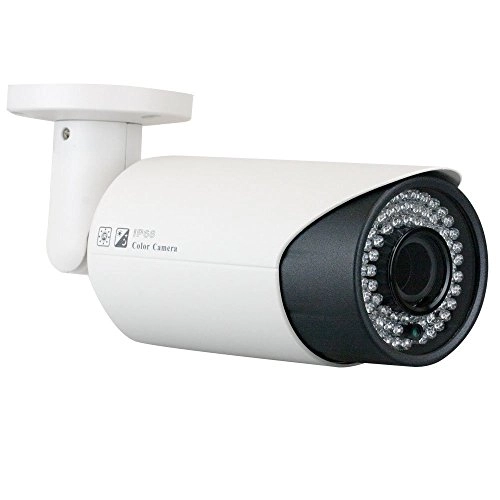

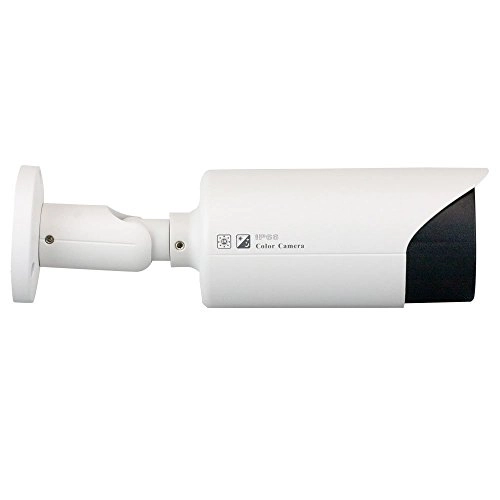

The BW Security camera employs 1/3" SONY CMOS image sensor which provides great quality image day and night. It uses advanced IR cut filter function in combination to the latest 1/3" SONY CMOS sensor, which realizes 1200TVL high resolution and high color reproduction for security camera. This enables clearer pictures at night time compare to traditional cameras. The built-in 78pcs IR Infrared LED provide the effective infra-red range up to 200FT. Built in 2.8~12mm Manual Zoom Varifocal Lens which allow you to adjust the angle of View to meet you need. The camera has adjustable bracket can be easily mounted on wall or under ceiling. Easy installation, you can connect to your TV, VCR or DVR. It is ideal for outdoor or indoor use. Package Include: 1 camera, 1 manual and mounting hardware. Camera Specifications Pick up Element 1/3" Color Sony CMOS Effective Picture Elements (H*V) 1280(H)*720(V) Horizontal Resolution 1200 TV Line Minimum Illumination 0.01 Lux/F1.2 0Lux(with IR LED ON) S/N Ratio More than 50dB Scanning System 2:1 interface Synchronous System Internal, Negative Sync. Auto Electronic Shutter NTSC: 1/60s~1/100,000s Gamma Characteristic 0.45 IR Distance 200 feet (with ￠5X78PCS Infrared LED) IR Status Under 5 Lux by CDS IR Power On CDS Auto Control Video Output 1Vpp, 75Ω Day and Night Switch ICR Switch Power Current DC12V(+/-10%)/510mA Lens 2.8~12mm Manual Varifocal Lens Storage Temperature -30~+60℃ RH95% MAX Operating Temperature -10~+50℃ RH95% MAX
