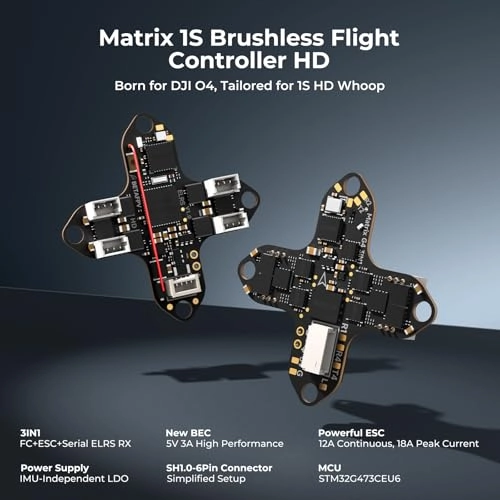

BETAFPV Matrix 1S G4 3IN1 HD

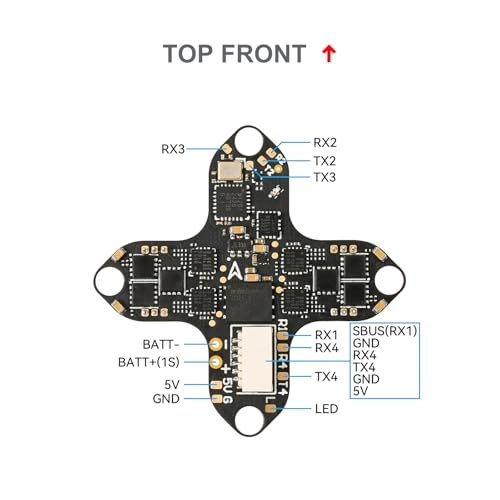

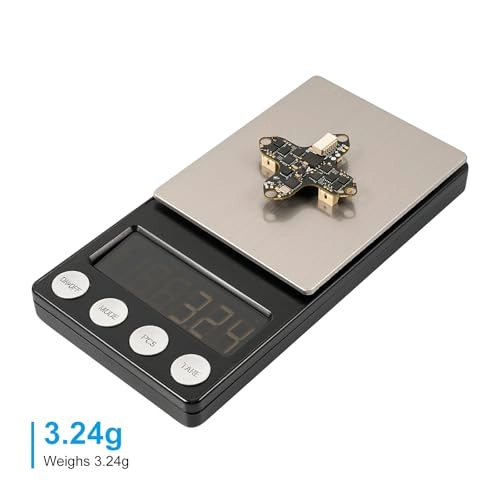

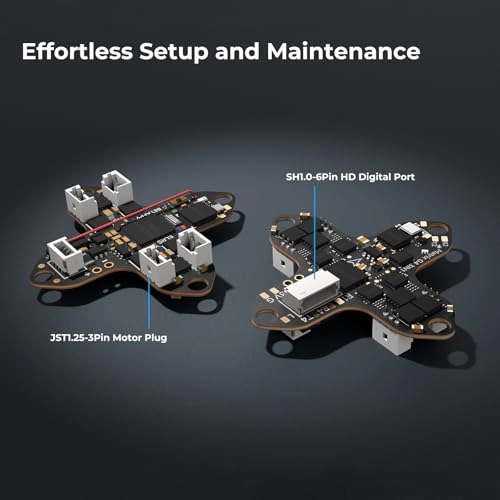

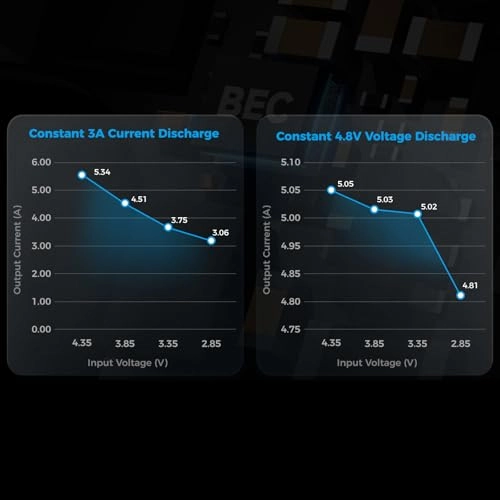

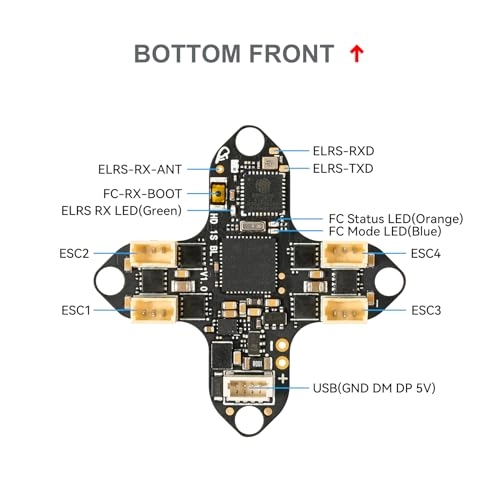

Attention: Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered. How to Use Serial Ports, Intergrated RX and VTX UART3 is connected to the built-in serial ELRS RX. To release UART3, please remove the resistor. Additionally, this FC reserves 2 complete full-featured serial ports that can be used for external serial receivers, GPS, HD VTX, or other serial devices. You can refer to the product picture. FC MCU: STM32G473CEU6 (168MHz) Gyro: ICM42688P Blackbox memory: 16MB Sensor: Voltage & Current BEC: 5V/3A UART: UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP) ESC: 12A continuous RX: Serial ELRS 2.4GHz (V3.4.3) FC firmware: Betaflight_4.5.1_BETAFPVG473 USB port: SH1.0-4Pin HD Digital VTX Port: SH1.0-6Pin Motor plug: JST1.25-3Pin Battery connector: BT2.0 Mounting size: 25.5mm x 25.5mm Weight: 3.2±0.1g (battery connector excluded), 4.2±0.1g (battery connector included) ESC Power input: 1S Only Current: 12A continuous, 18A peak ESC firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware Digital signal protocol: DSHOT300, DSHOT600 Package 1 * Matrix 1S Brushless Flight Controller (G4 3IN1 HD) 1 * Type-C to SH1.0 Adapter 1 * SH1.0-4Pin Adapter Cable 1 * SH1.0-6Pin Adapter Cable 4 * M1.2*4 Self-tapping Screws 4 * M1.4*5 Self-tapping Screws 4 * Shock Absorbing Balls
