This product could work as expected for all the following models:
2017 Jeep Compass Longitude
Since the same car model may differ from country to country, please check the camera size and carefully compare your car installation to avoid errors.
Product parameters:
- TV system: NTSC (if you wanted PAL, please write to us)
- Resolution: 520 TV lines
- Effective pixels: 628 x 586 pixels
- Viewing angle: 160 degrees
- S/N ratio: Plus 48dB (AGC-OFF).
- Video color: night vision color (night version)
- Video output: 1.0Vp-p, 75Ω
- Image sensor: 1/3 inch color CCD
- Detection area: 5.8 x 4.2 mm
- Synchronize system: internal
- Power supply: DC 12 V.
- White balance: Auto
- Waterproof: IP67.
- Electronic shutter: 1/60-1/10000 seconds.
- Current consumption: ≤150mA
- Current consumption:: 90mA max
- Temperature: -40°C to + 60°C, RH95% Max.
- Minimum illumination: 0.3Lux / F1.2.
- Operating temperature: -30°C to +50°C, RH95%.
- 1/3" Sharp color LCD screen, other sellers are cheap 1/4" color CMOS screen

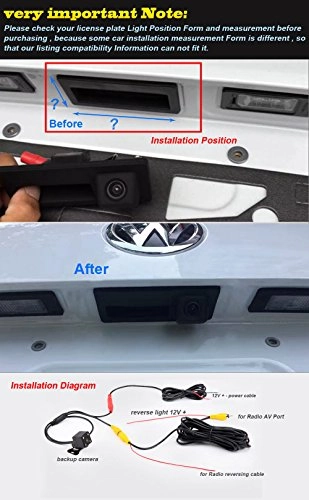

Installation diagram:
our package including easy kids diagram
Package contents:
- 1 x Rear View Camera
- 1 x Power Cable (1.5 m)
- 1 x AV cable (6m/19ft)
- 1 x user manual (English language not
