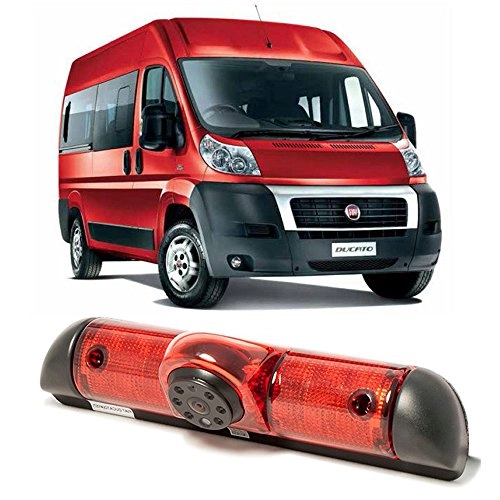

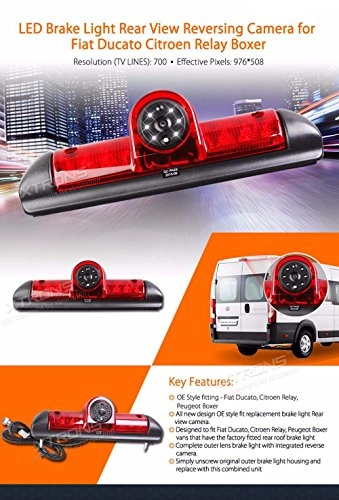

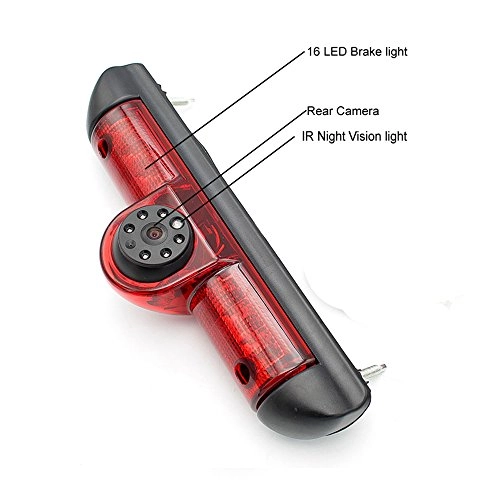

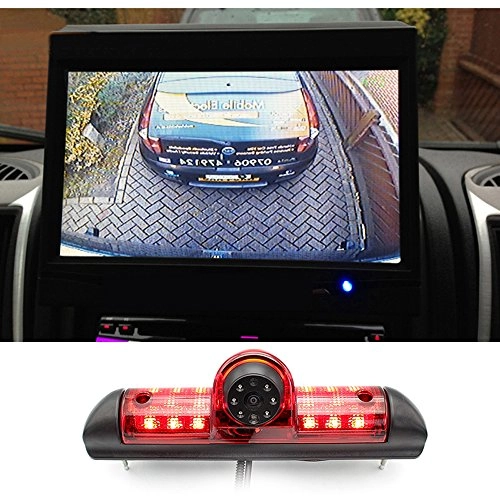

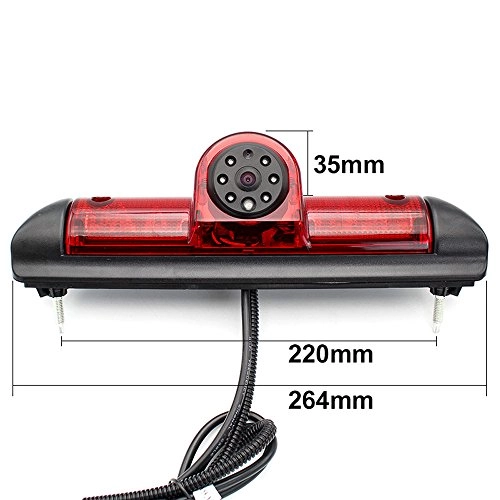

Berlingan Third Roof Top Brake Light Camera - 628 x 586 pixels

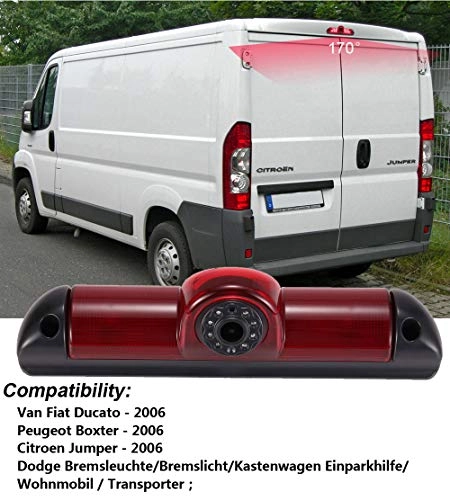

This item can fit all of the following models:

Fiat Ducato X250 2006-2017

Peugeot Boxter 2006-2017

Citroen Jumper 2006-2017

Dodge Brake Light/Taillight/Van Park Aid/Motorhome/Van

The same car model may be different Countries have difference, please check the camera size to avoid mistakes, and carefully compare the installation of your car.

Product parameters:

- TV system: NTSC (If you want PAL, please email us)

- Resolution: 520 TV lines

- Effective pixels: 628 x 586 pixels

- Viewing angle: 160 degrees

- S/N ratio: More 48db (AGC-OFF)

- Video color: night vision

- Video output: 1.0Vp-p, 75Ω

Image Sensor: 1/3" Color CCD

- Detection Area: 5.78 x 4.19 mm

- Sync System: Internal

- Power Supply: DC 12V

- White Balance: Automatic

- Waterproof: IP67

- Electronic Shutter: 1/60-1/10000 Second

- Current Consumption: ≤150mA

- Current Consumption 90mA Max

- Temperature 40°C to + 60°C, RH 95% Max.

- Minimum Illumination: 0.3lux/F1.2

- Operating Temperature 30°C to +50°C, RH 95%

- Top Quality 1/3" Colorful Sharp LCD ,Other Sellers Cheap 1/4" Color CMOS LCD

Our Package Kids Easy Diagram

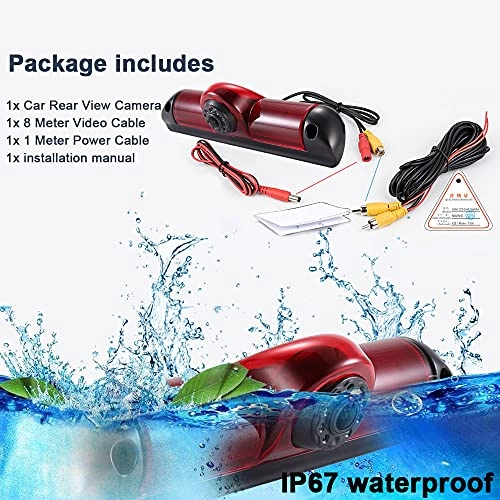

Includes:

• 1 x rear view camera.
• 1 x power cable (1.5 m)
• 1 x AV cable (8 m / 26 ft)
• 1 x user manual (English language not guaranteed).
