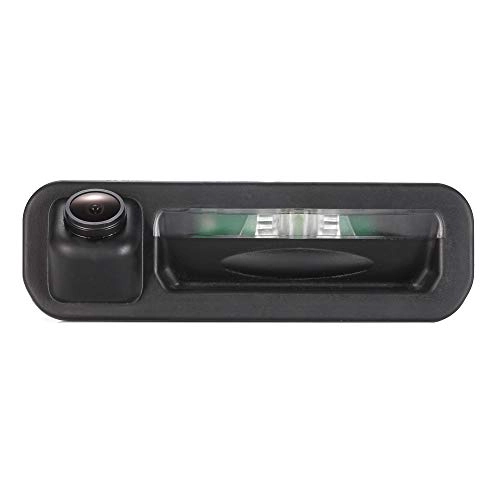

Berlingan Rear View Camera - 8 LED Night Vision 628 x 586 pixels

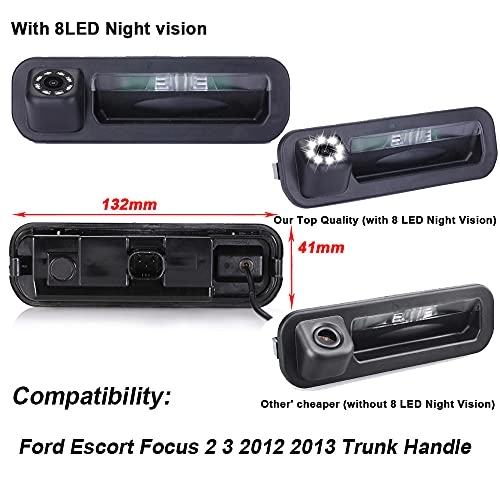

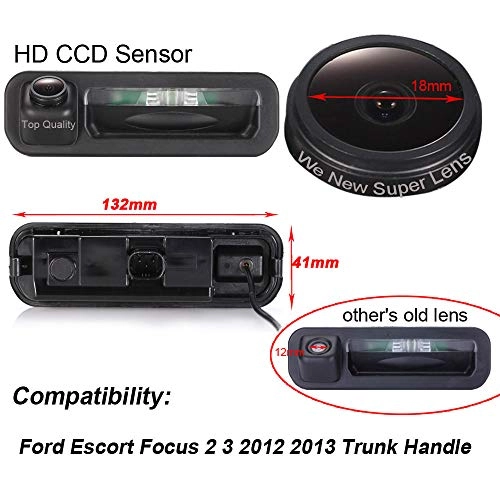

This product could fit all the following models as expected:

Trunk handle Range Rover 2006-2013 Freelander 2 2010-2013.

Trunk handle Ford Mondeo CHIA-X 2010-2013.

Trunk handle Ford Focus hatchback 2010-2013.

As the same car model may have differences in different countries, please check the camera size and compare the installation of your car carefully to avoid errors.

Product parameters:

- TV system: NTSC (if you wanted PAL, please email us).

- Resolution: 1000 TV lines

- Effective pixels: 1280 x 720 pixels.

- Viewing angle: 170 degrees.

- S/N ratio: more 48 dB (AGC-OFF).

- Video colour: night vision colour (night version).

- Video output: 1.0Vp-p, 75Ω.

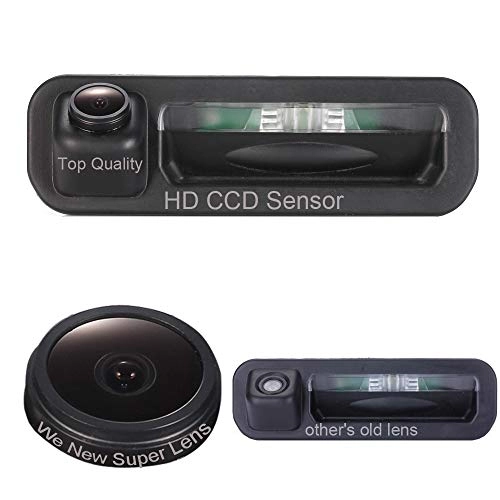

- Image sensor: 1/3 inch colour CCD

- Sensing area: 5.78 x 4.19 mm.

- Sync. System: internal

- Power supply: DC 12 V.

- White Balance: Auto

- Waterproof: IP68

- Electronic shutter: 1/60-1/10000 second.

- Current consumption: ≤ 150 mA.

- Current consumption: 90mA max.

- Temperature: -40°C to +60°C, RH95% Max.

- Minimum illumination: 0.3Lux/F1.2.

- Operating temperature: -30°C to +50°C, RH95%.

- Top quality 1/3 inch colour sharp LCD, other sellers are cheap 1/4 inch colour CMOS LCD.

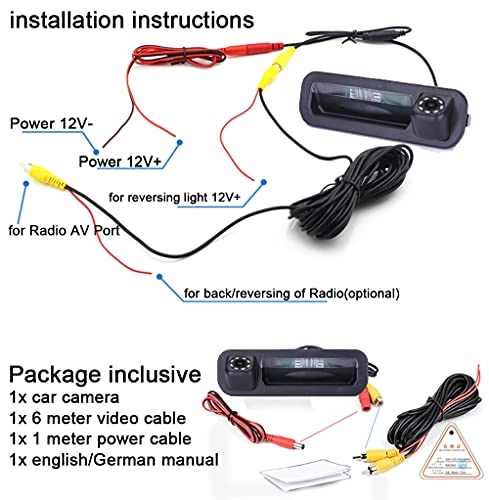

Installation diagram:

Our package includes children's easy diagram.

Package Content:

• 1 x rear view camera.
• 1 x power cable (1.5 m).
• 1 x AV cable (6 m / 19 ft).
• 1 x user manual (English language not guaranteed).
