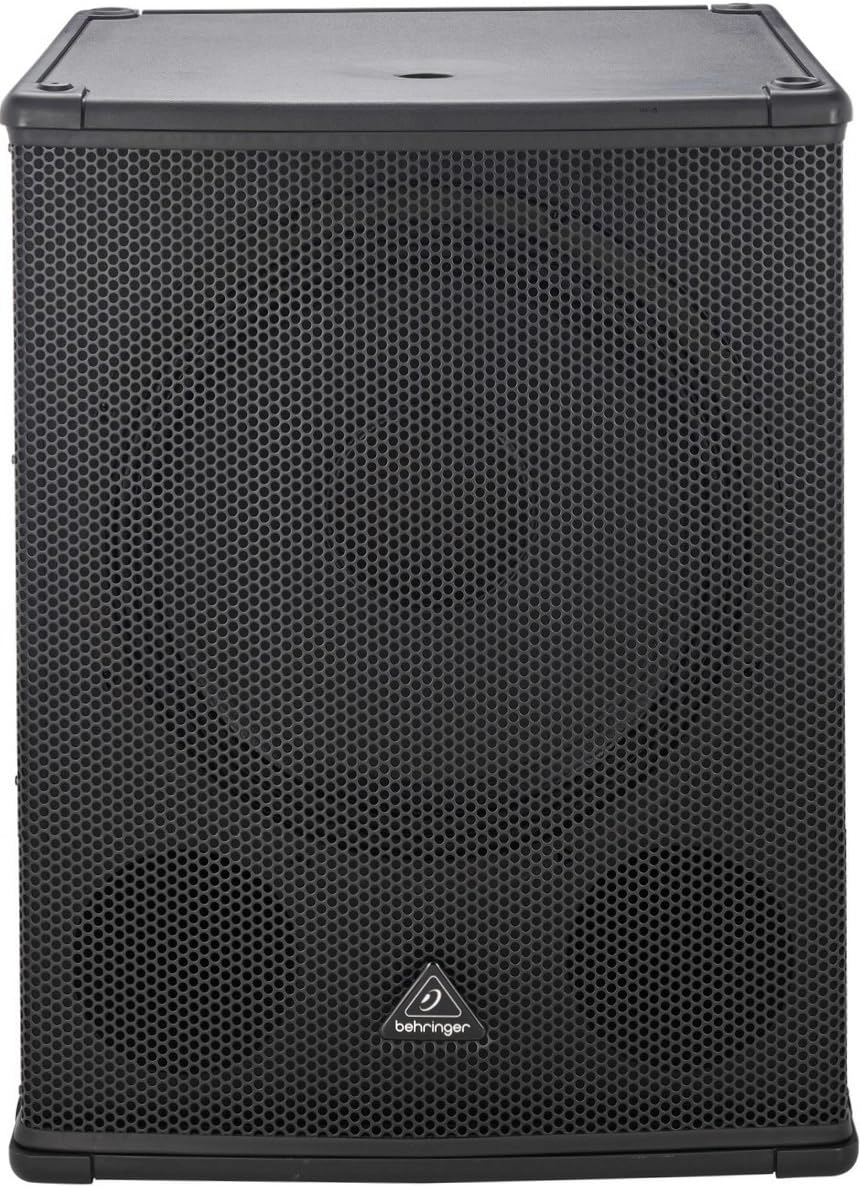

EUROLIVE B1800XP
Our Eurolive B1800XP 3,000-Watt active subwoofer provides the ultimate in low-frequency reproduction, and the built-in stereo crossover makes it ideally suited for use with any of our active 2-way loudspeakers. Packed with a powerful 3,000-Watt Class-D amplifier, a TURBOSOUND 18" long-excursion Low-Frequency (LF) transducer and an incredible array of professional features, the B1800XP produces extreme levels of low-end punch, with the definition and clarity typically reserved for much larger systems!
Put simply, these cool-running systems are much lighter, making them ultra-easy to transport and set up – and our no-compromise design means you get amazingly-deep, chest-pounding bass that will keep the party going all night long.
Amplifier
Maximum output power
3000 W *
Type
Class-D
Audio Inputs
Input A / B
XLR, servo-balanced
Sensitivity
+4 dBu @ 0 dB
(center position) for full rated power
Max input
+22 dBu, balanced,<=1 % THD+N
Input impedance
12 kΩ unbalanced, 24 kΩ balanced
Audio Outputs
Thru A / B
XLR, servo-balanced
Output A / B
XLR, servo-balanced
High-pass filter
100 Hz, Butterworth, 18 dB slope

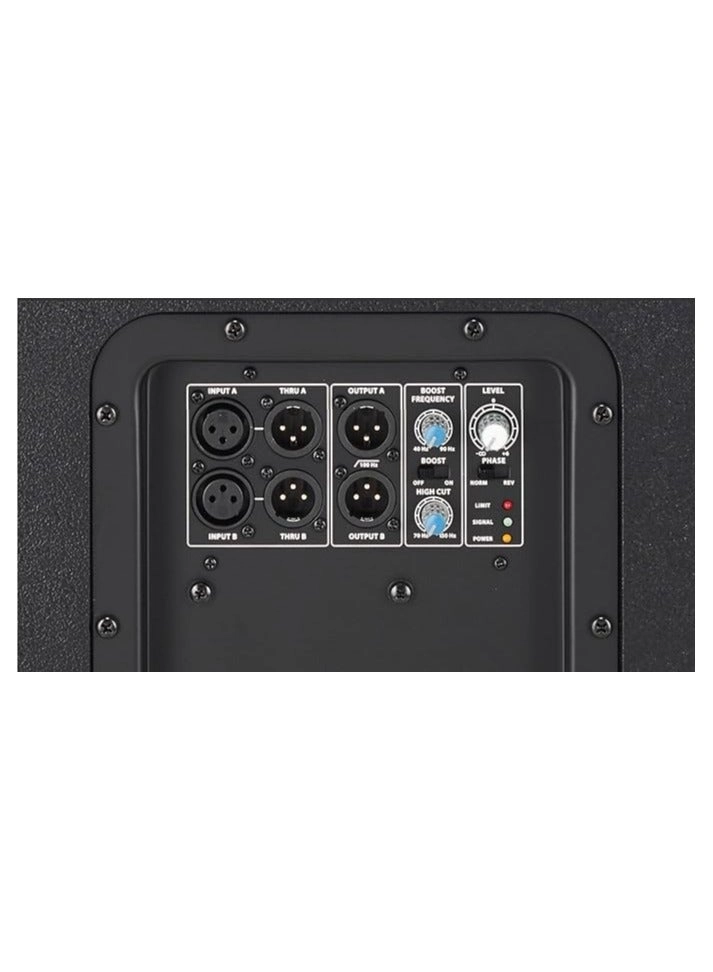

Controls
Level
-∞ to +6.0 dB
Boost frequency
40 Hz – 90 Hz, +10 dB
Boost
Switchable
High cut
70 – 150 Hz, Butterworth, 24 dB slope
Phase
0° or 180° phase reverse switch
System Data
Frequency range
32 Hz – 200 Hz (-10 dB)
Frequency response
40 Hz – 150 Hz (+/-3 dB)
Signal-to-noise (20 Hz to 20 kHz)
>100 dB (A-weighted)
Sound pressure level (half space)
max. 129 dB @ 1 m
Woofer
18"
Limiter
Optical
Indicators
Signal LED
Green
Limit LED
Red
Power LED
Amber
Circuit Protection
Amplifier protection
Full short circuit, thermal protection
Load Protection
Turn-on/off muting
Power Supply, Voltage (Fuses)
USA / Canada / Japan
100-120 V~, 50/60 Hz (T 15 A H 250 V)
UK / Australia / Europe / Korea / China
220-240 V~, 50/60 Hz (T 10 A H 250 V)
Power consumption @ 1/8 rated power
180 W
Mains connection
Standard IEC receptacle
