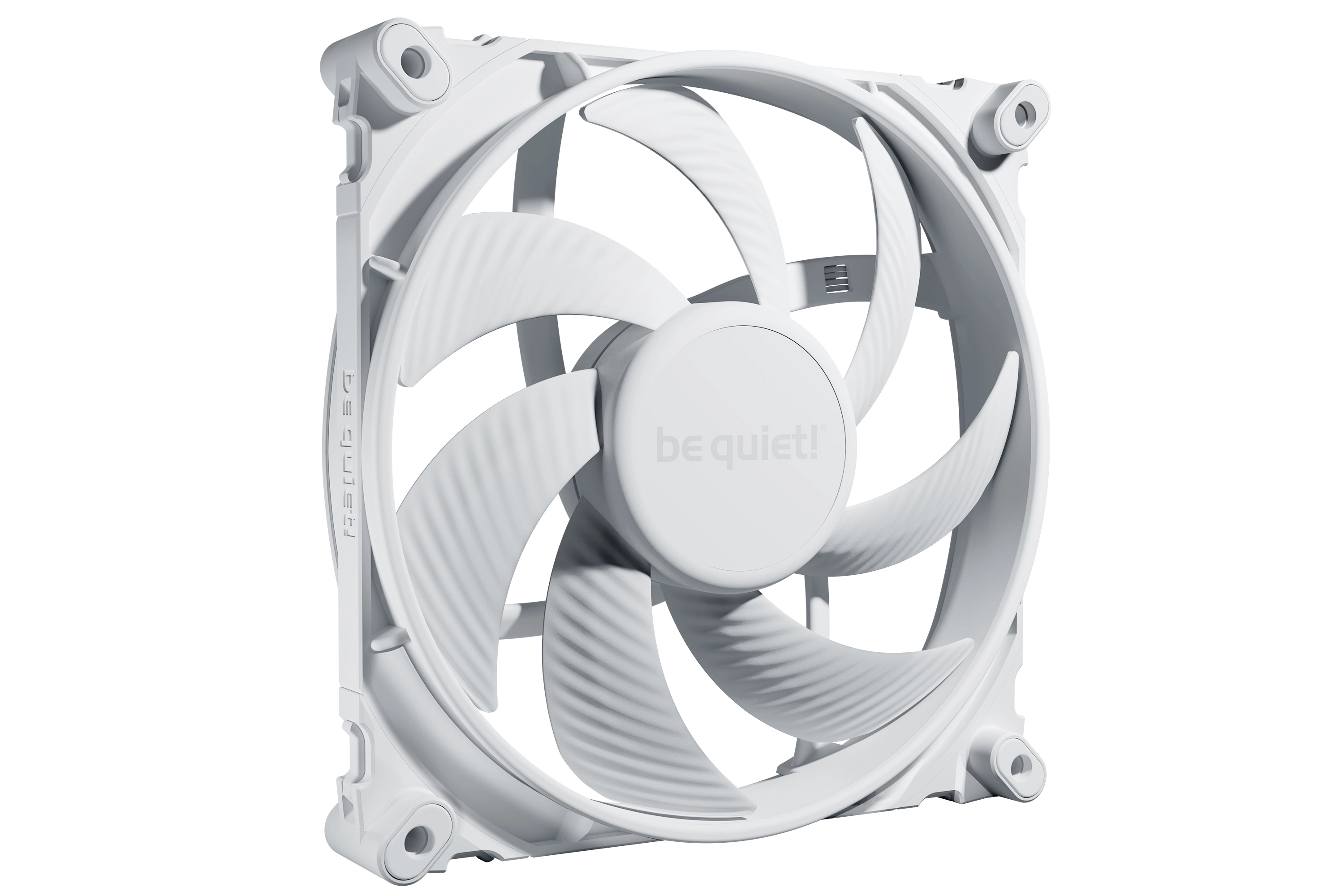

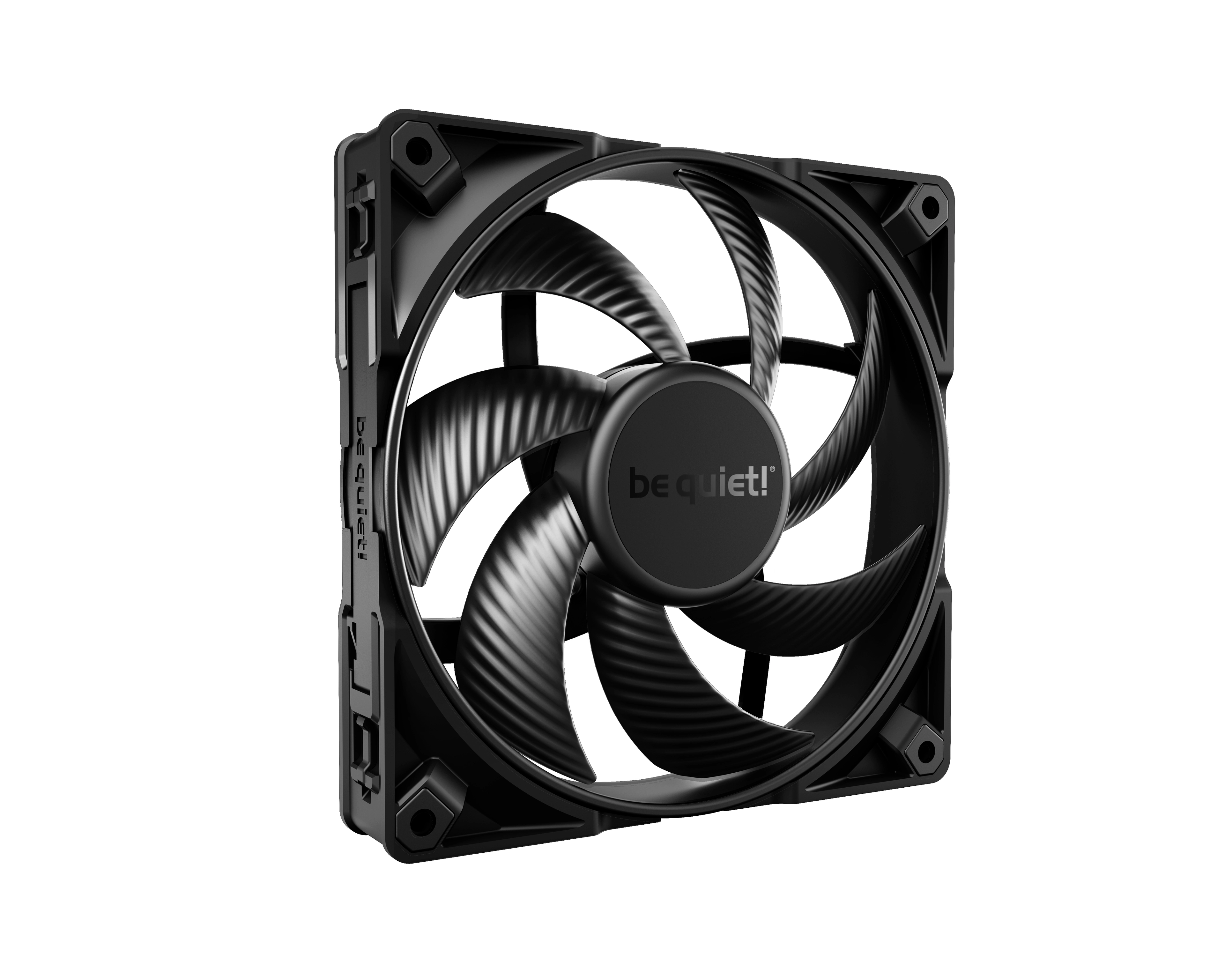

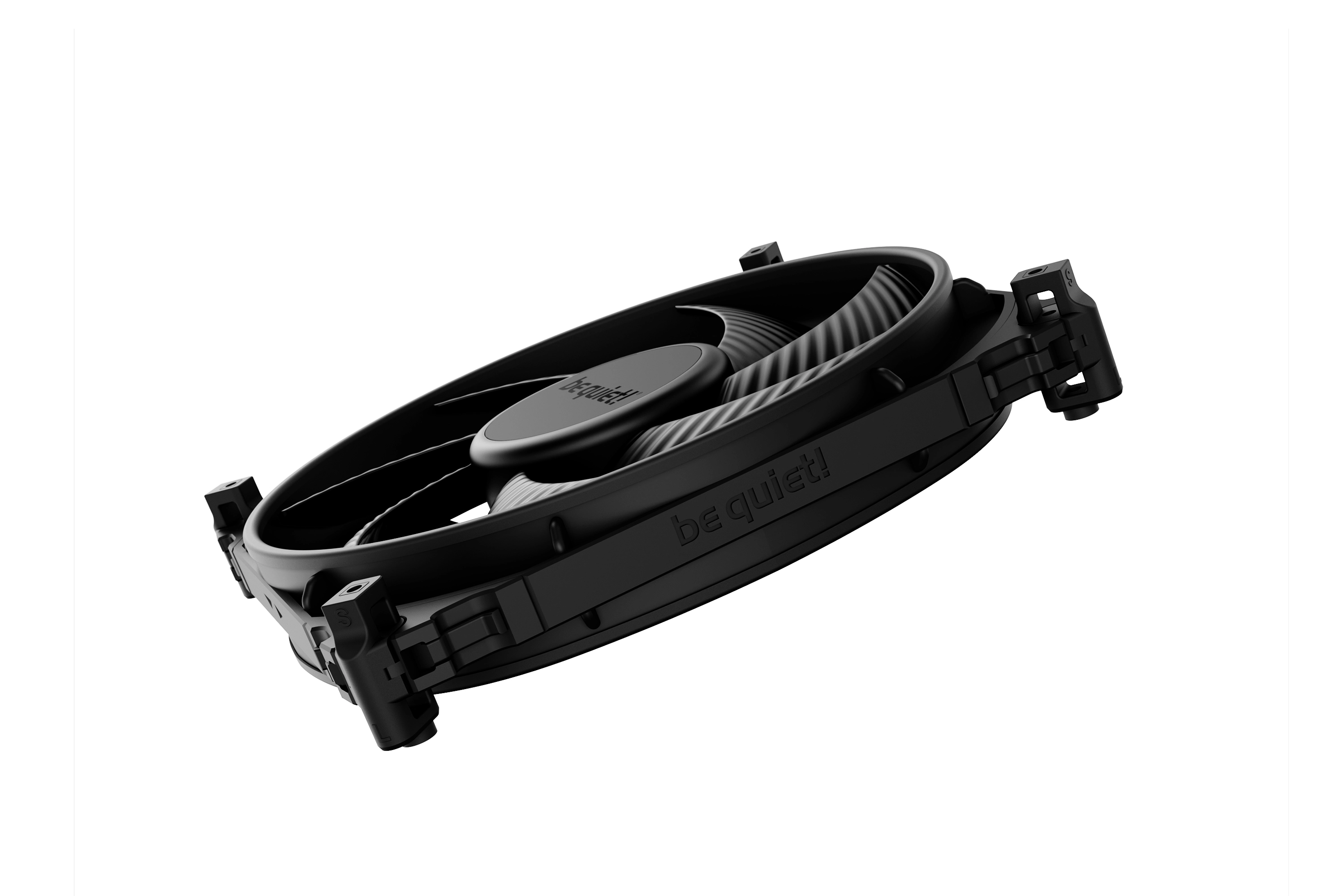

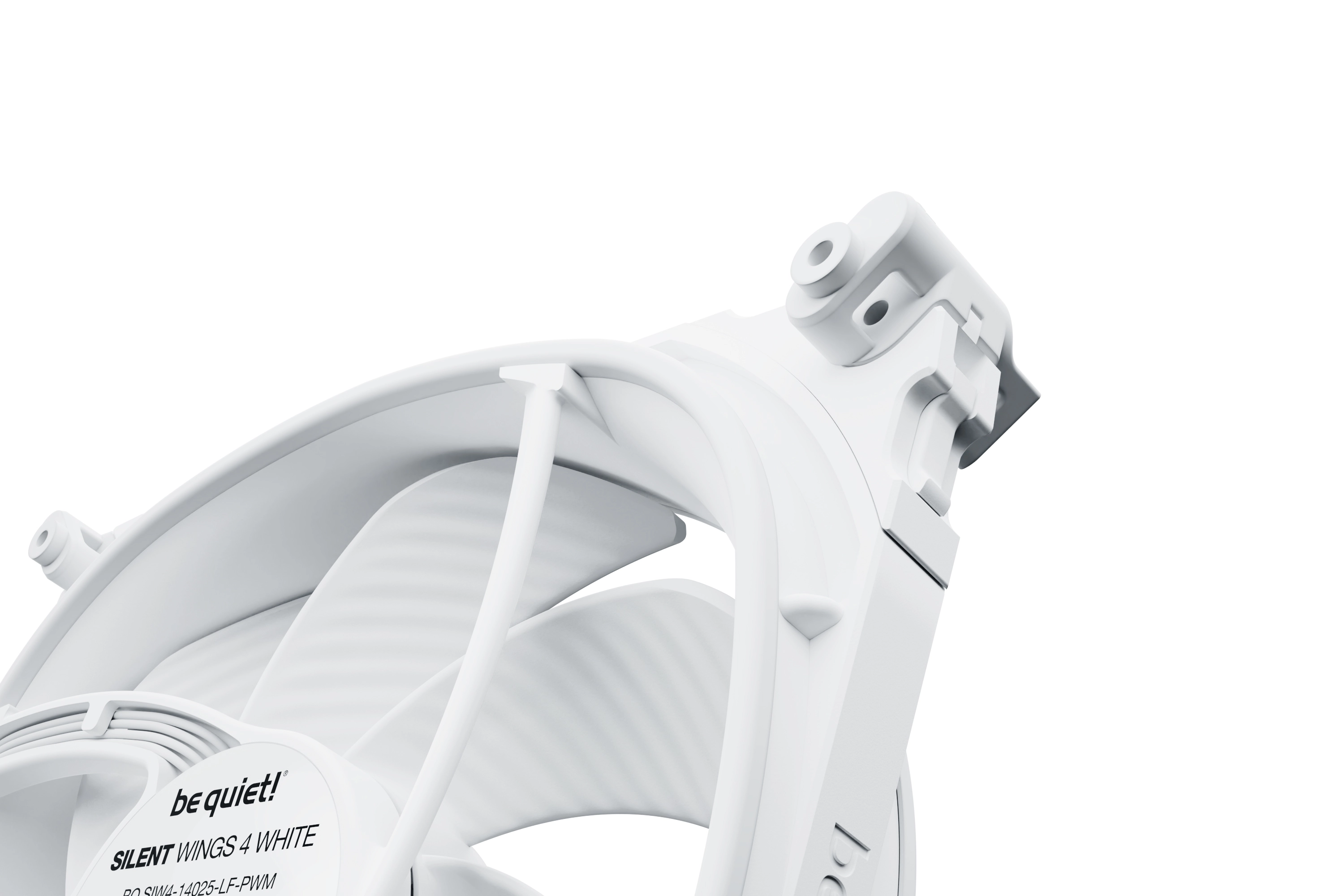

be quiet! Silent Wings 4 - 140mm

Name: be quiet! Silent Wings 4 - 140mm
Brand: be quiet!
SKU: 865320
Availability: InStock

Best offer

AED

185¹³

Key Features

Fan dimensions (W x D x H): 25 x 140 x 140mm
Number of clips: 4
Rotational speed (max): 1100RPM
Maximum air pressure: 0.92mmH2O
Type: Fan
Bearing type: Fluid Dynamic Bearing (FDB)
Noise level (high speed): 13.6dB
Airflow: 87.16m³/h
Maximum airflow: 51.3cfm
Rated voltage: 12V
Fan power consumption: 3.6W
Compliance certificates: CE, RoHS, UKCA, WEEE
Product colour: Black
Rated current: 0.3A
Suitable location: Computer case

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

300000 h

Fan's mean time to failure (MTTF)

300000 h

Screws included

✓

Pulse-width modulation (PWM) support

✓

Fan diameter

140 mm

Suitable location

Computer case

Product colour

Black

Rotational speed (max)

1100 RPM

Maximum air pressure

0.92 mmH2O

Type

Fan

Bearing type

Fluid Dynamic Bearing (FDB)

Noise level (high speed)

13.60 dB

Airflow

87.16 m³/h

Maximum airflow

51.30 cfm

Packaging data

Package weight

390 g

Package height

31 mm

Package depth

206.50 mm

Package width

156 mm

Weight & dimensions

Weight

220 g

Height

25 mm

Depth

140 mm

Width

140 mm

Cable length

0.50 m

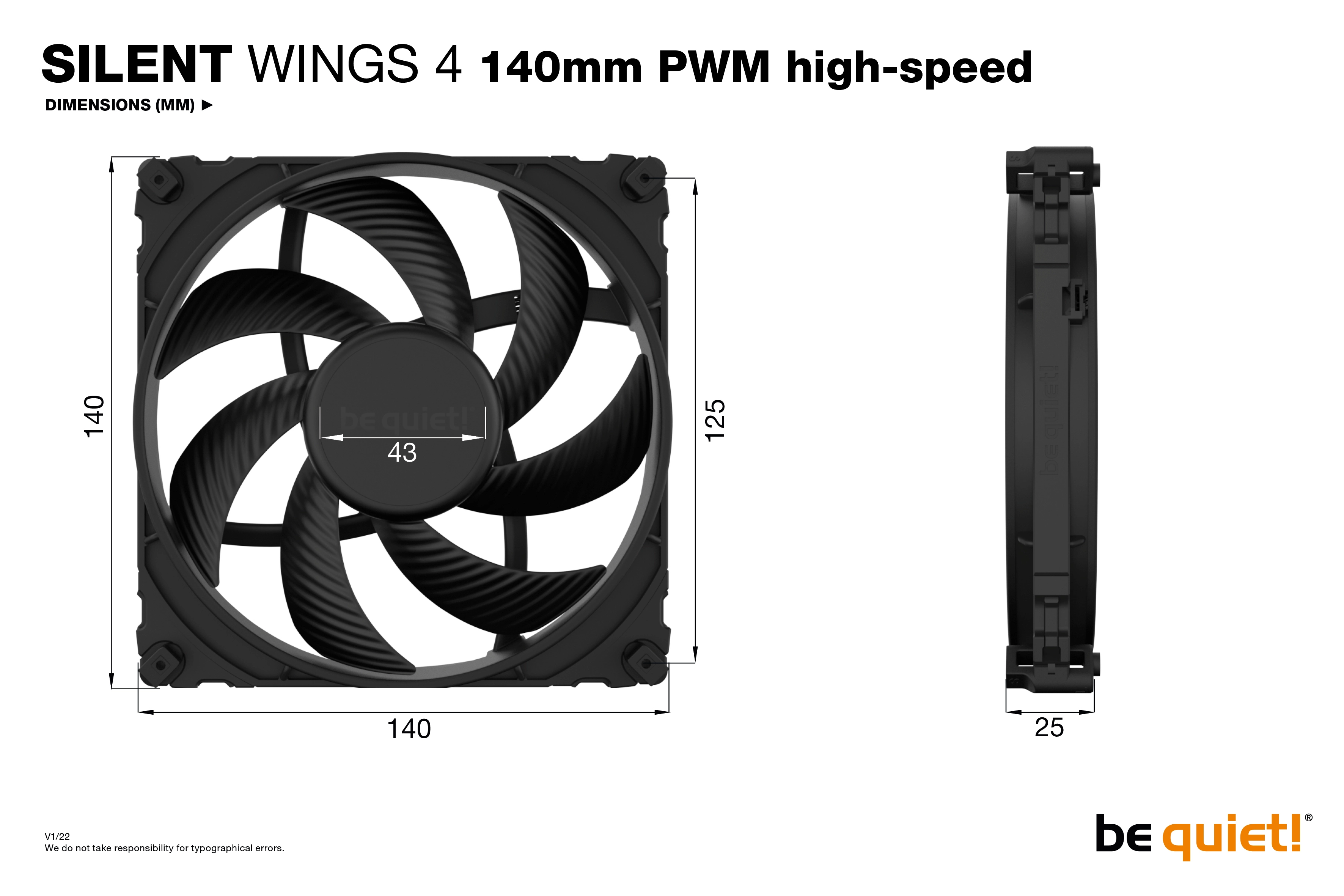

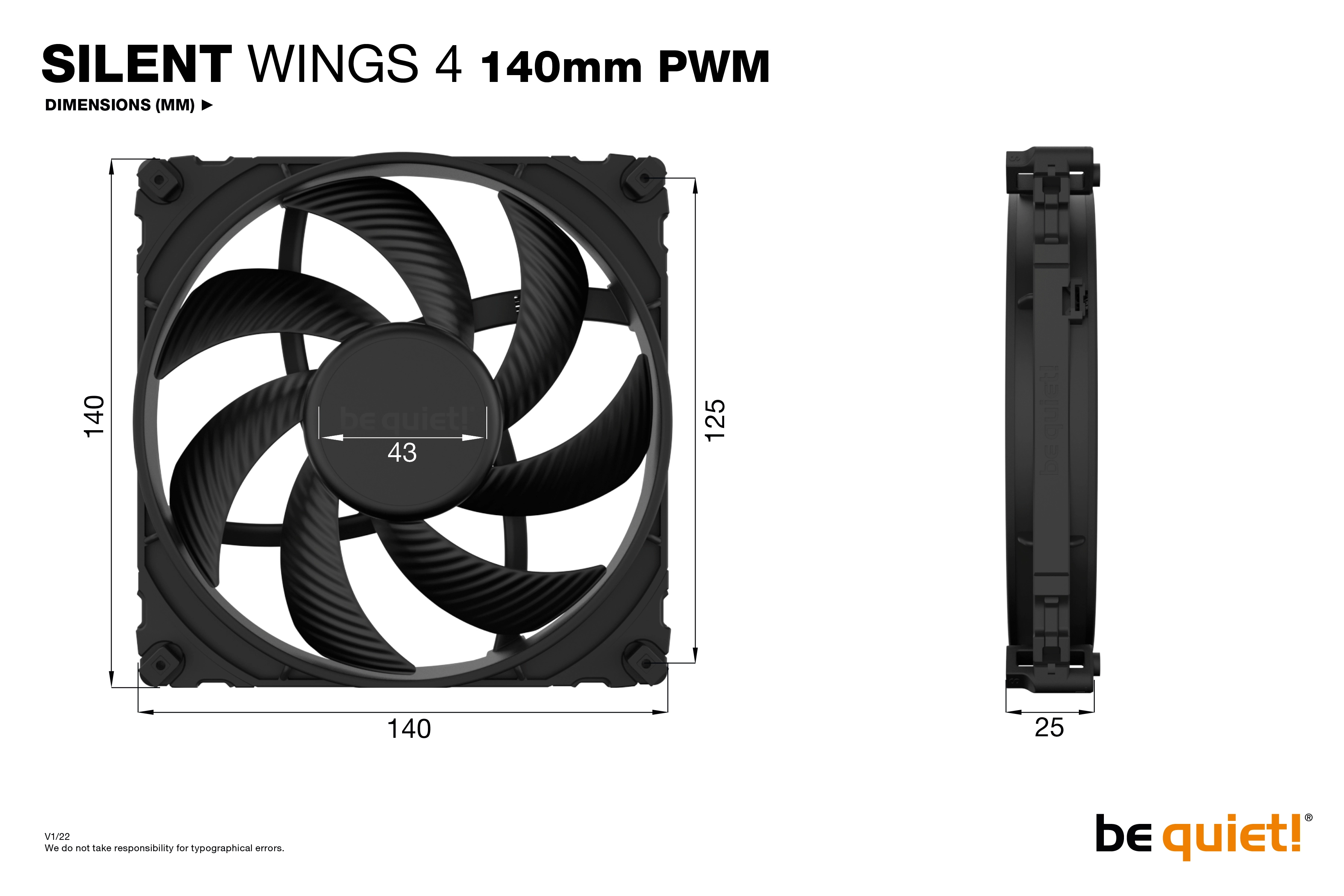

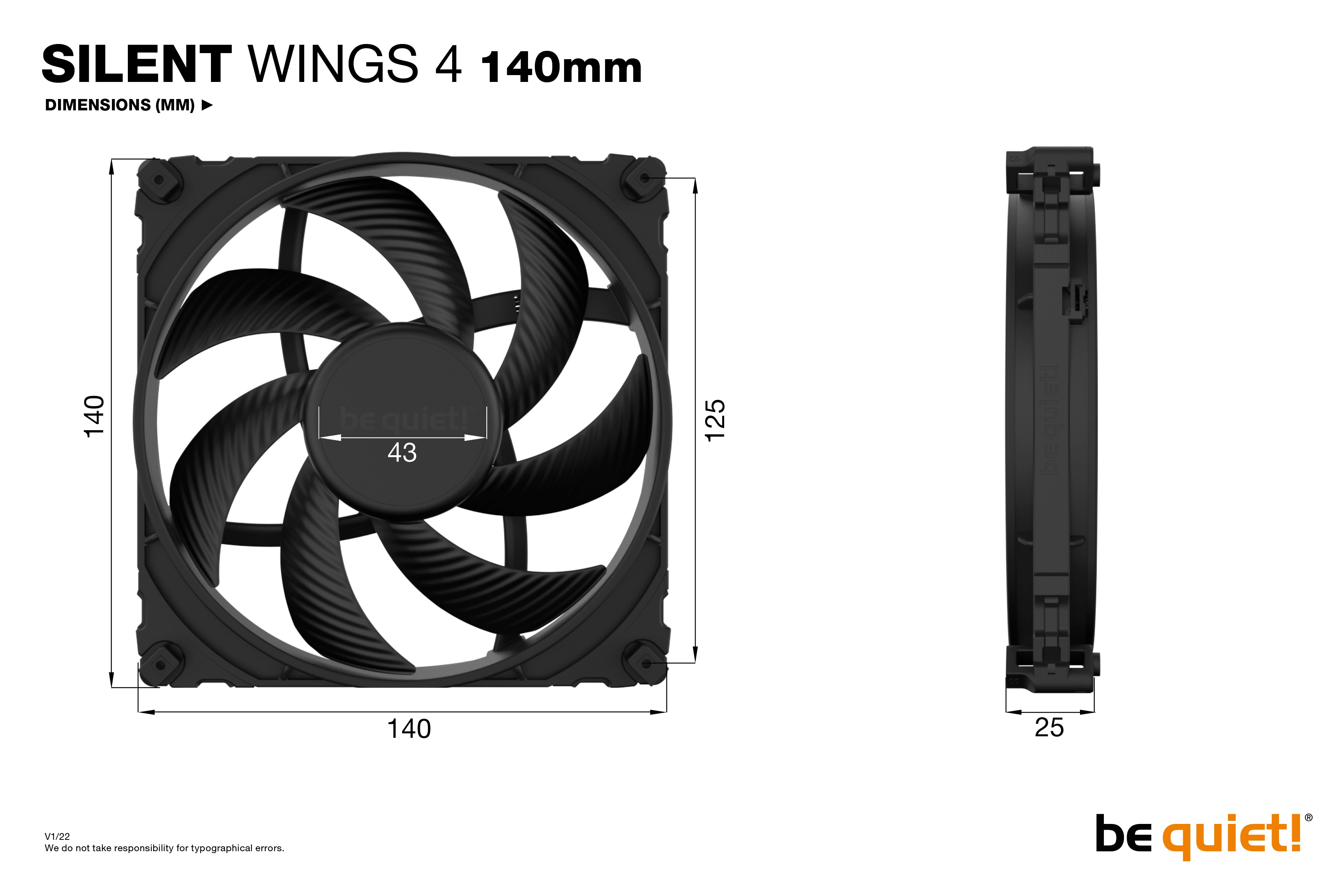

Fan dimensions (W x D x H)

140 x 140 x 25 mm

Power

Power consumption (typical)

3.60 W

Voltage

5 - 13.2 V

Maximum current

0.33 A

Rated current

0.30 A

Rated voltage

12 V

Fan power consumption

3.60 W

Other features

Airflow

133.2 m³/h, 165.5 m³/h, 87.16 m³/h, 87.2 m³/h

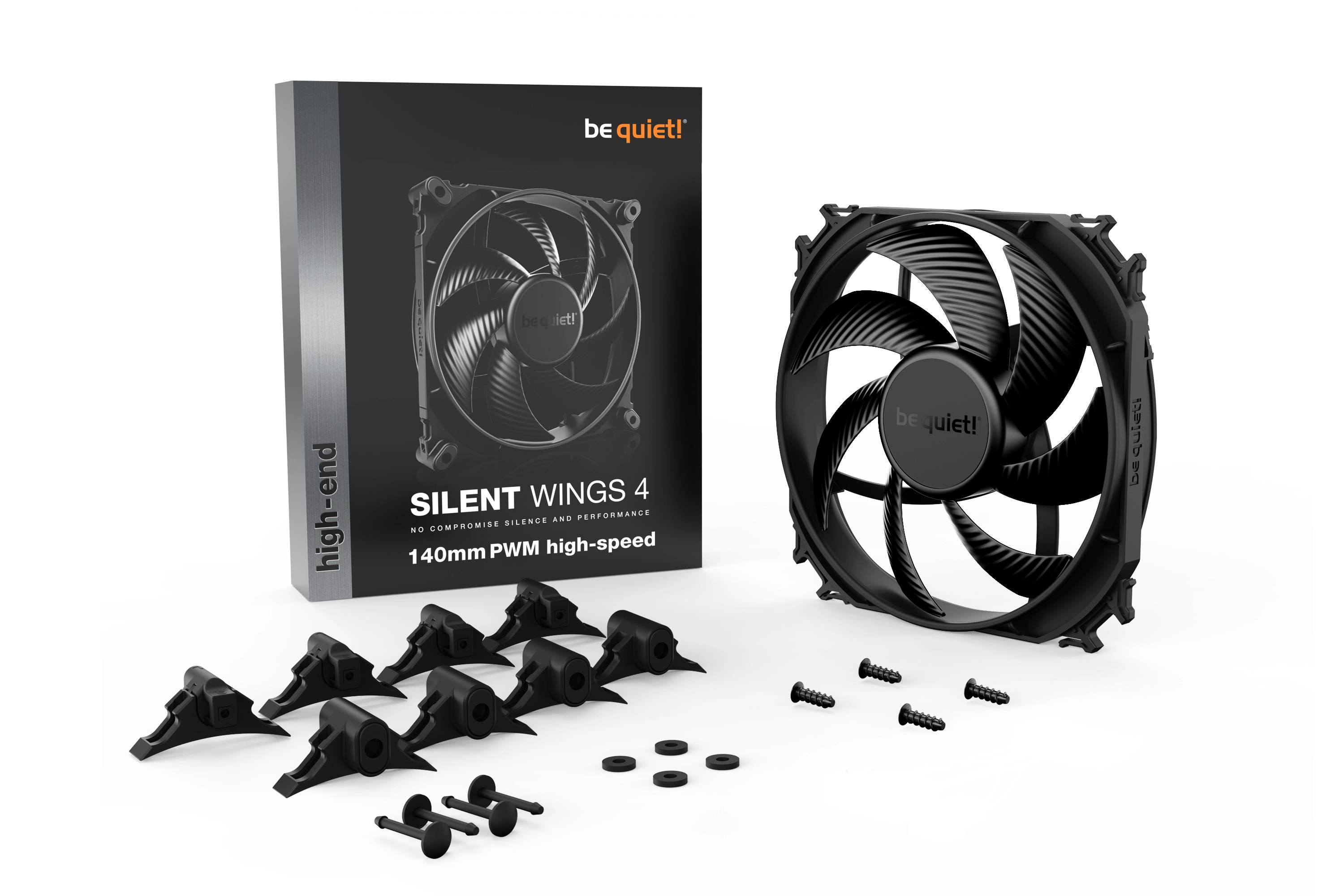

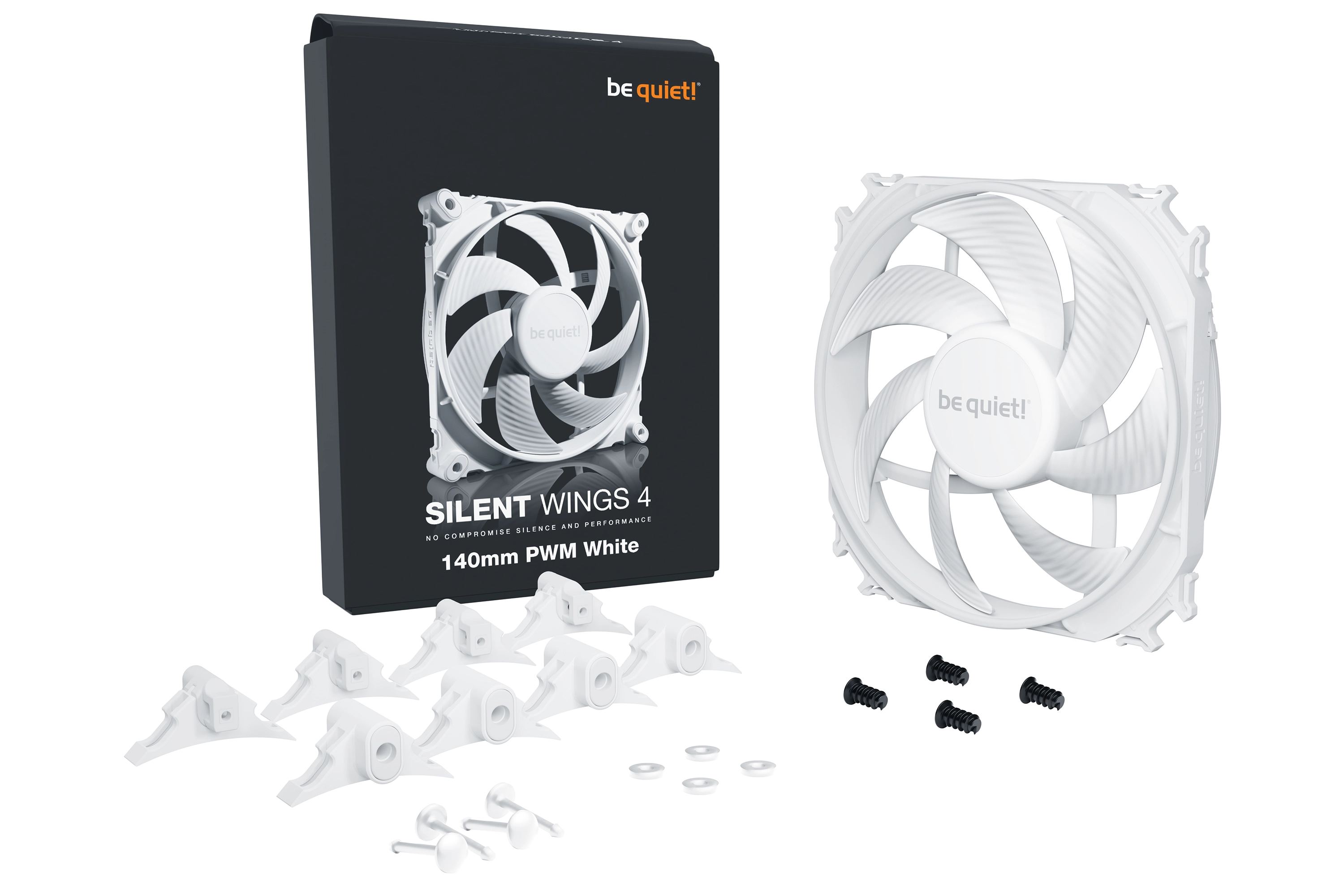

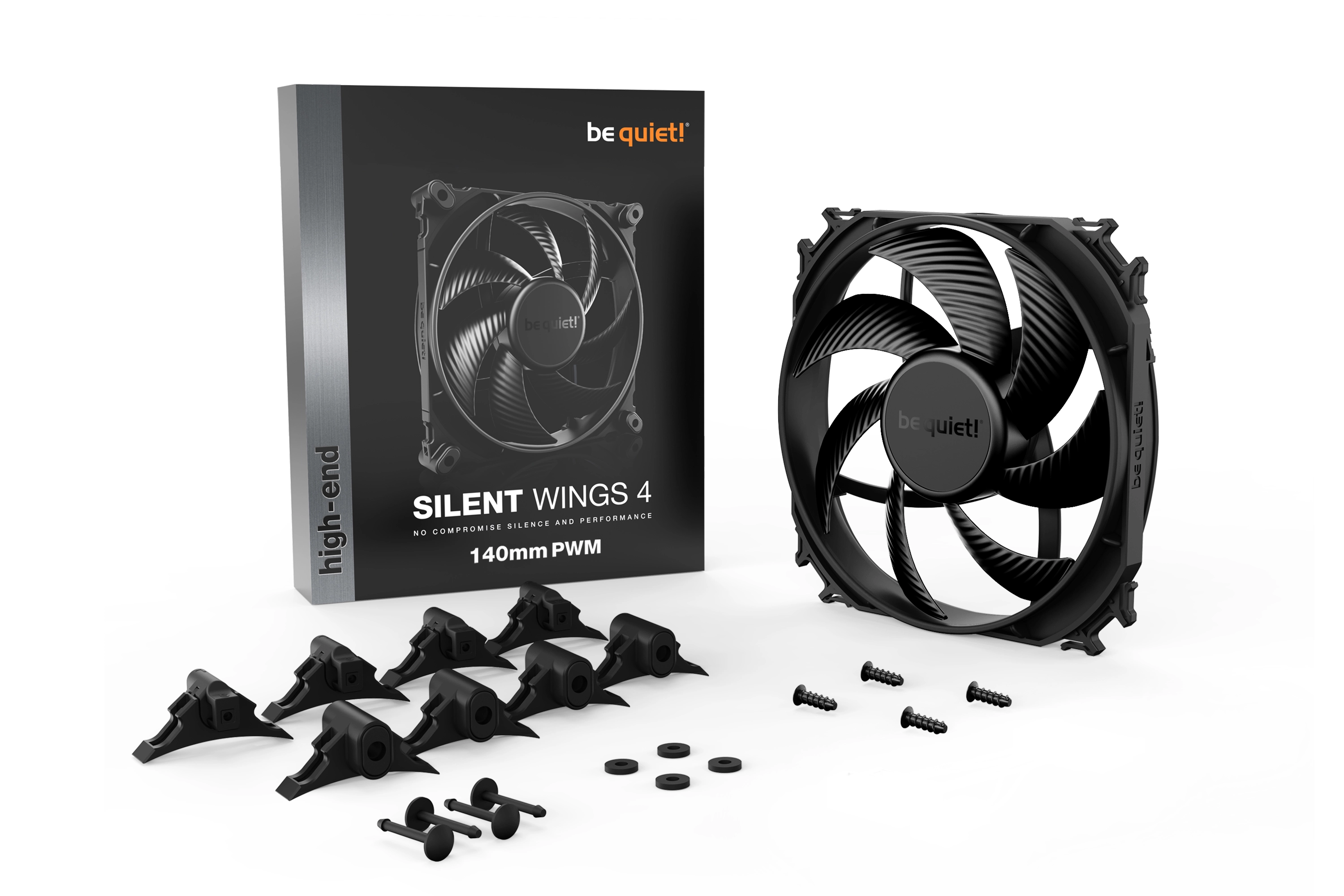

Packaging content

Number of screws

Number of clips

Ports & interfaces

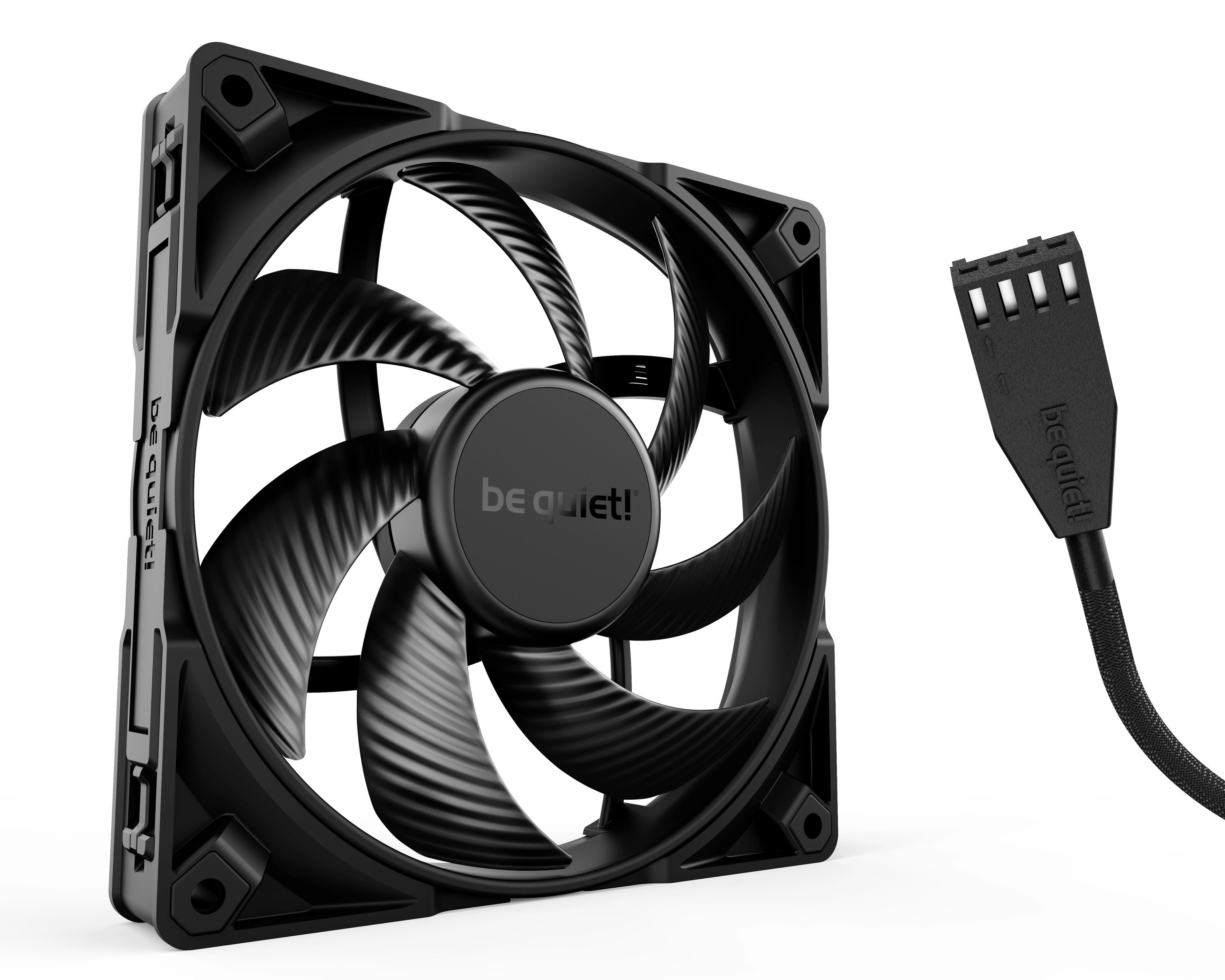

Fan connector

4-pin

Technical details

Sustainability compliance

✓

Certification

CE / ROHS / RU / UKCA / TÜV / WEEE

Sustainability certificates

Triman

Compliance certificates

CE, RoHS, UKCA, WEEE

Logistics data

Harmonized System (HS) code

84733080

Shipping (inner) case gross weight

13700 g

Shipping (inner) case height

388 mm

Shipping (inner) case length

463 mm

Shipping (inner) case width

317 mm

Product Details

No compromise silence and performance Silent Wings 4 140mm PWM high-speed White combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 140mm PWM high-speed White the perfect choice for the most demanding applications in high-end systems.

Files

User manual

mmo_100726715_1657032335_1249_19556.pdf

PDF• 876.4 KB

Product Brochure

mmo_100726715_1657032315_7147_19122.pdf

PDF• 2.8 MB

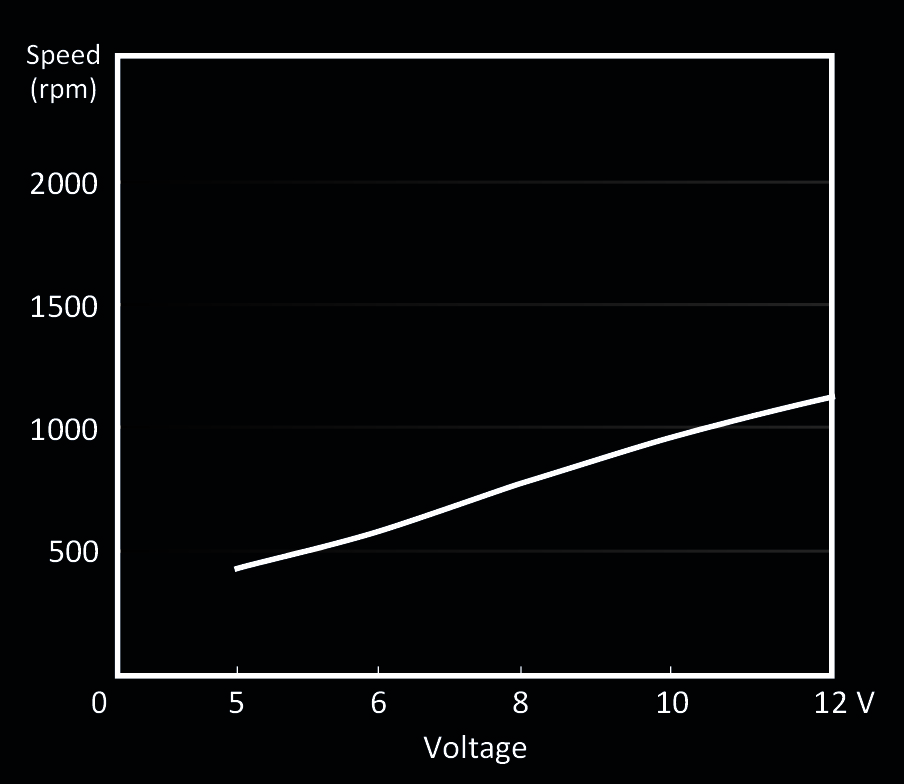

Performance curve


JPEG• 839.8 KB
