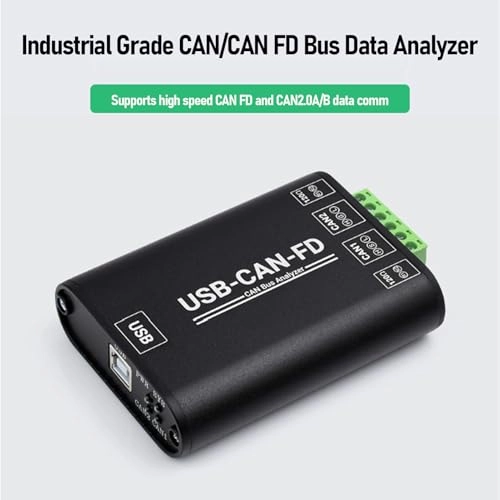

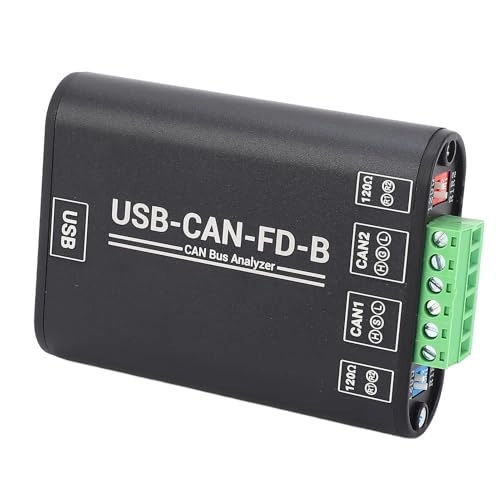

Ausla CAN FD Analyzer - OPEN6/KF2EDG 6P, spacing 5.08mm 2 channels USB B interface 3000VDC

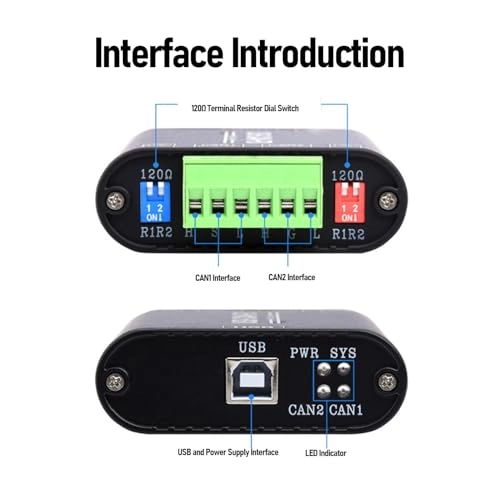

Spec: Item Type: CAN Bus Analyzer Material: Aluminum Alloy Industrial Grade: USB to CAN FD Interface Converter, CAN/CAN FD Bus Comm Interface Card, CAN/CAN FD Protocol Data Analyzer Operating Voltage: 5V (powered directly through USB port, no additional power supply needed) Interface Type: USB B interface CAN Channels: 2 channels, CAN1 and CAN2 (independent, full isolation, isolation voltage 3000VDC) Interface Type: Terminal interface (OPEN6/KF2EDG 6P, spacing 5.08mm) Matching Resistor: Each channel has two 120Q​ terminating resistors, can be enabled through switch Comm Speed: 10Kbps-1Mbps Protocol Support: CAN 2.0A and 2.0B, CANOpen, SAE J1939, DeviceNet​, iCAN​, ISO 15765 Data Receiving and Sending Capability: Each CAN channel can receive and send up to 8500 frames per second Data Receiving and Sending Buffer: Receive buffer for each channel is 2000 frames, send buffer is 1000 frames (automatic resend when sending fails) PWR: Power indicator SYS: System status indicator, normally off, on in case of error CAN1: CAN1 channel indicator (flashes when receiving or sending data) CAN2: CAN2 channel indicator (flashes when receiving or sending data) Compatibility: For Win​ ​>XP/7/8/10/11​ (32 bit and 64 bit), for :​ for RPi OS, for ,​ for VMware virtual machine, etc. Package List: 1 x CAN Bus Analyzer 1 x 1 x USB Cable 1 x Connecting Cable
