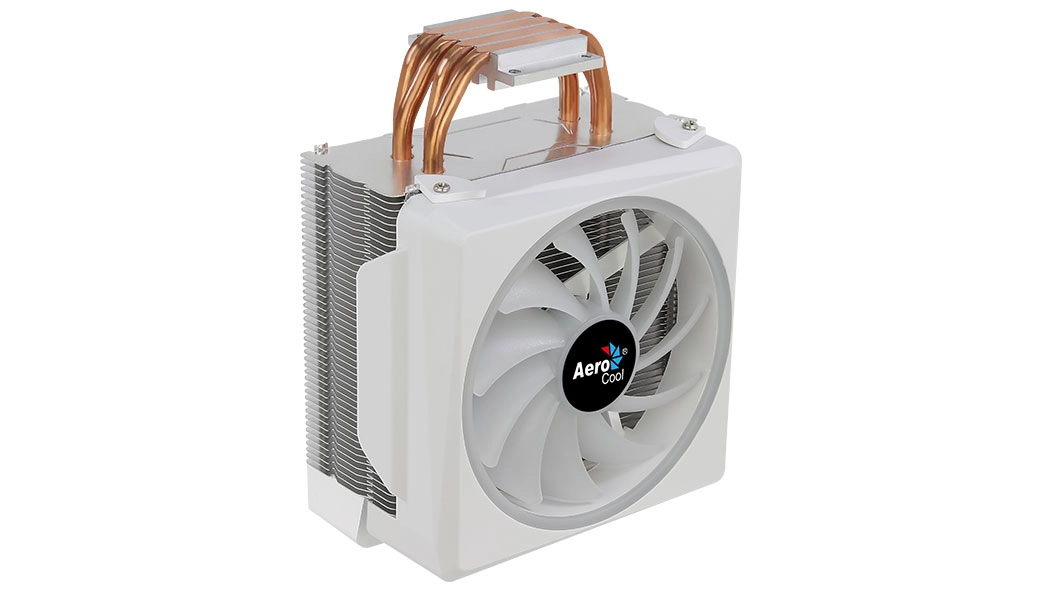

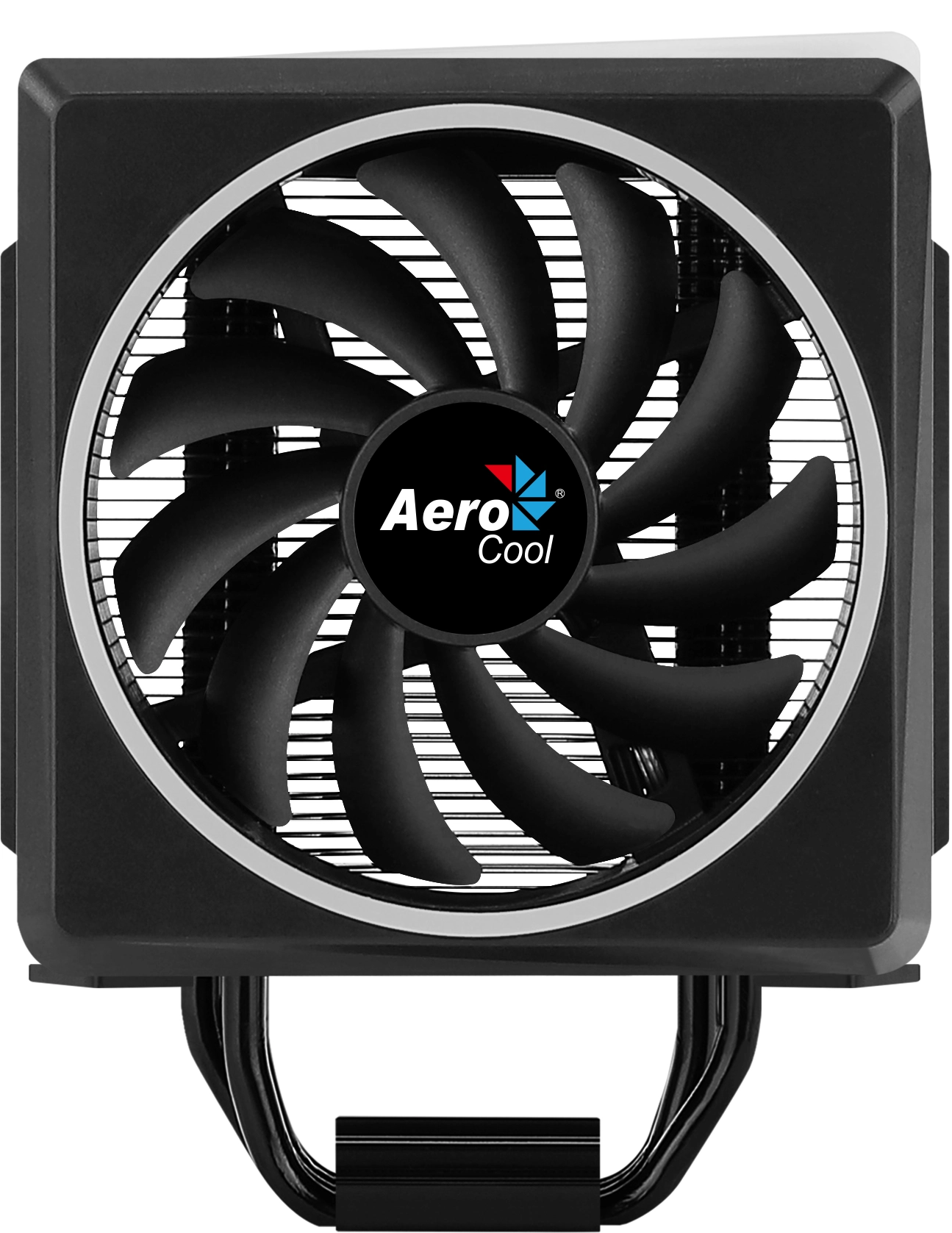

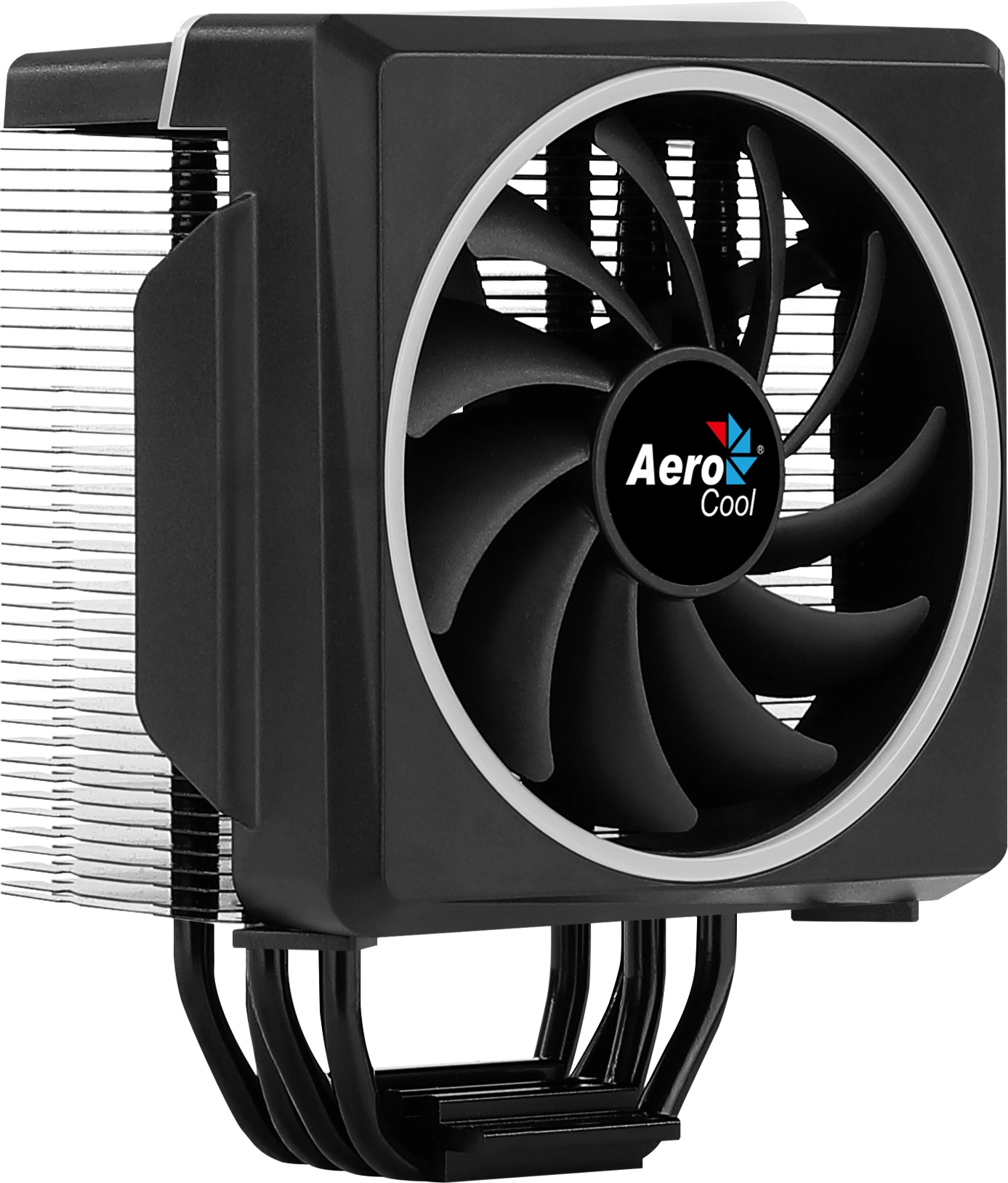

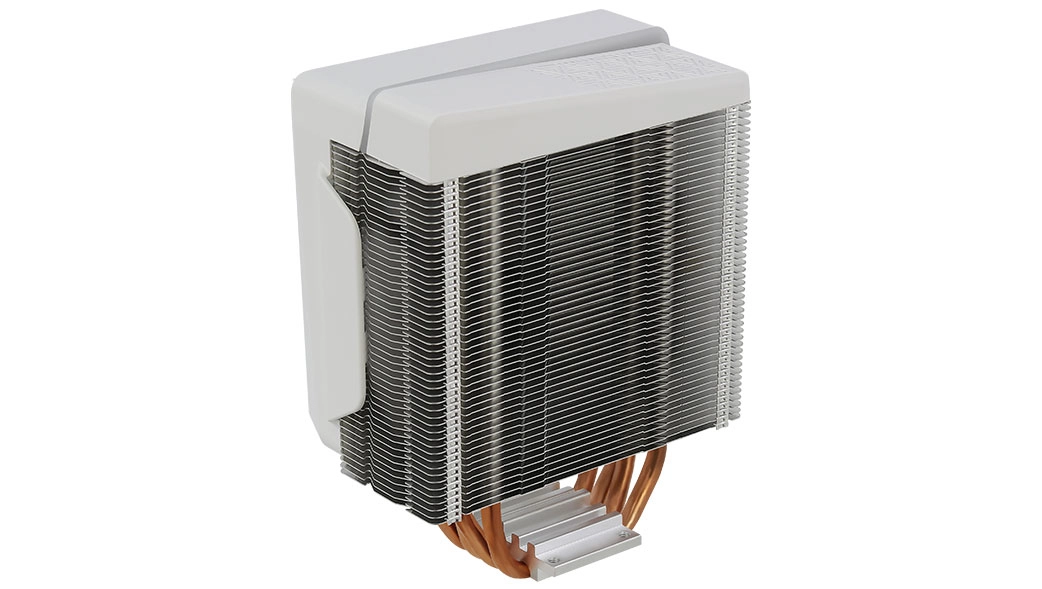

Aerocool Cylon 4F - 12cm

Name: Aerocool Cylon 4F - 12cm
Brand: Aerocool
SKU: 762652
Availability: InStock

Unavailable

Best offer

AED

119⁰⁰

Key Features

Minimum airflow (imperial): 26.1cfm
Fins material: Aluminium
Number of heat pipes: 4
Starting voltage: 5V
Fan dimensions (W x D x H): 120 x 120 x 25mm
Rotational speed (max): 1800RPM
Minimum air pressure: 0.72mmH2O
Maximum air pressure: 1.21mmH2O
Type: Cooler
Bearing type: Hydraulic
Noise level (low speed): 14dB
Illumination LED: Yes
Noise level (high speed): 26dB
Base plate material: Aluminium
Illumination colour: Blue, Green, Red

Specifications

Features

Mean time between failures (MTBF)

60000 h

Material

Aluminium

Pulse-width modulation (PWM) support

✓

Fan diameter

120 mm

Suitable location

Processor

Supported processor sockets

LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM1, Socket AM2, Socket AM3, Socket AM4, Socket FM1, Socket FM2

Product colour

Black

Rotational speed (max)

1800 RPM

Minimum air pressure

0.72 mmH2O

Maximum air pressure

1.21 mmH2O

Type

Cooler

Bearing type

Hydraulic

Noise level (low speed)

14 dB

Illumination LED

✓

Noise level (high speed)

26 dB

Base plate material

Aluminium

Illumination colour

Blue, Green, Red

Maximum airflow

52.50 cfm

Thermal Design Power (TDP)

145 W

Starting voltage

5 V

Weight & dimensions

Height

160 mm

Depth

76 mm

Width

126.50 mm

Heat pipes diameter

6 mm

Fan dimensions (W x D x H)

120 x 25 x 120 mm

Power

Power consumption (typical)

7.20 W

Rated current

0.60 A

Rated voltage

12 V

Performance

Minimum airflow (imperial)

26.10 cfm

Design

Number of heat pipes

Fins material

Aluminium

Ports & interfaces

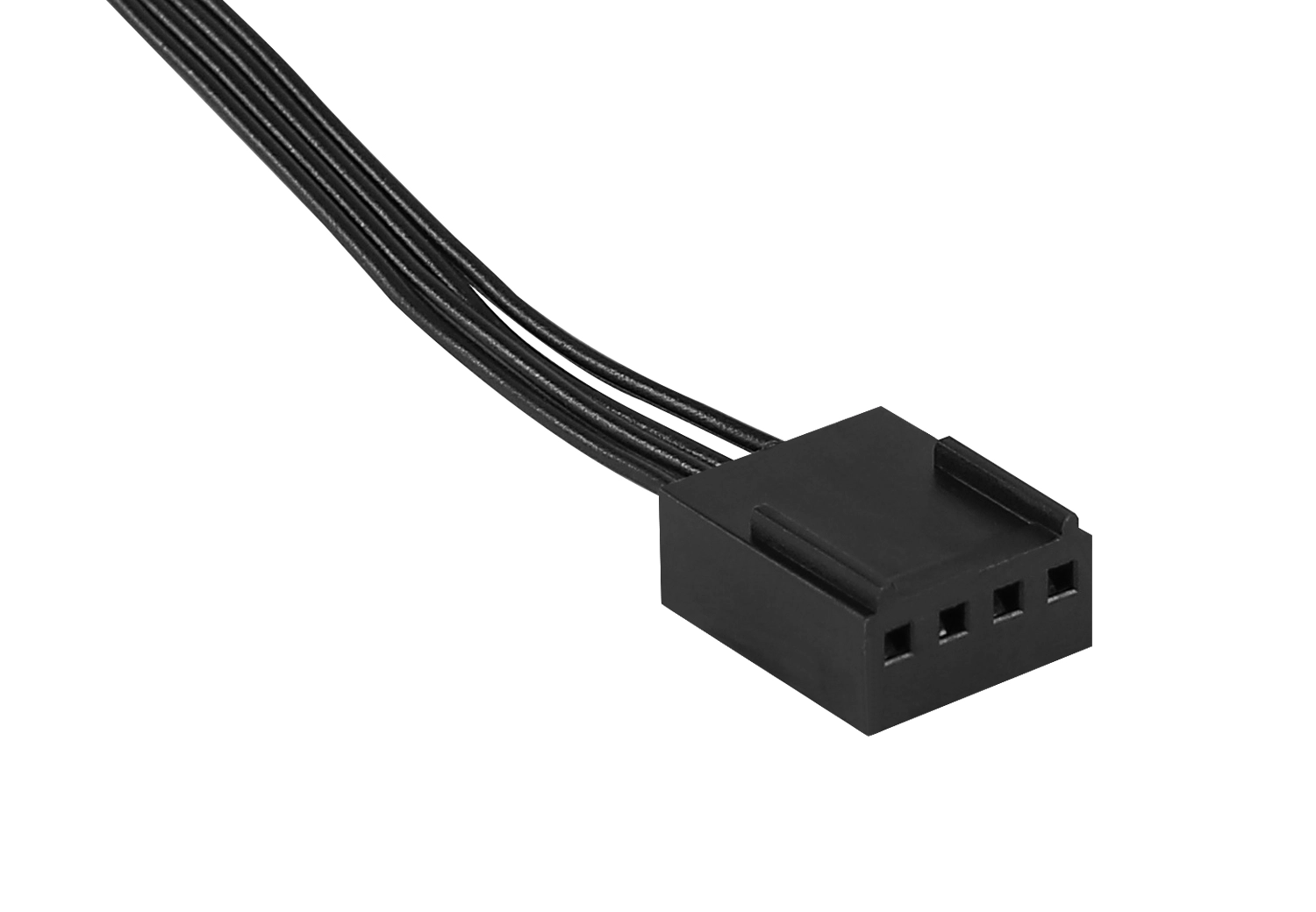

Fan connector

4-pin

Circular saw

Rotational speed (min)

800 RPM

Product Details

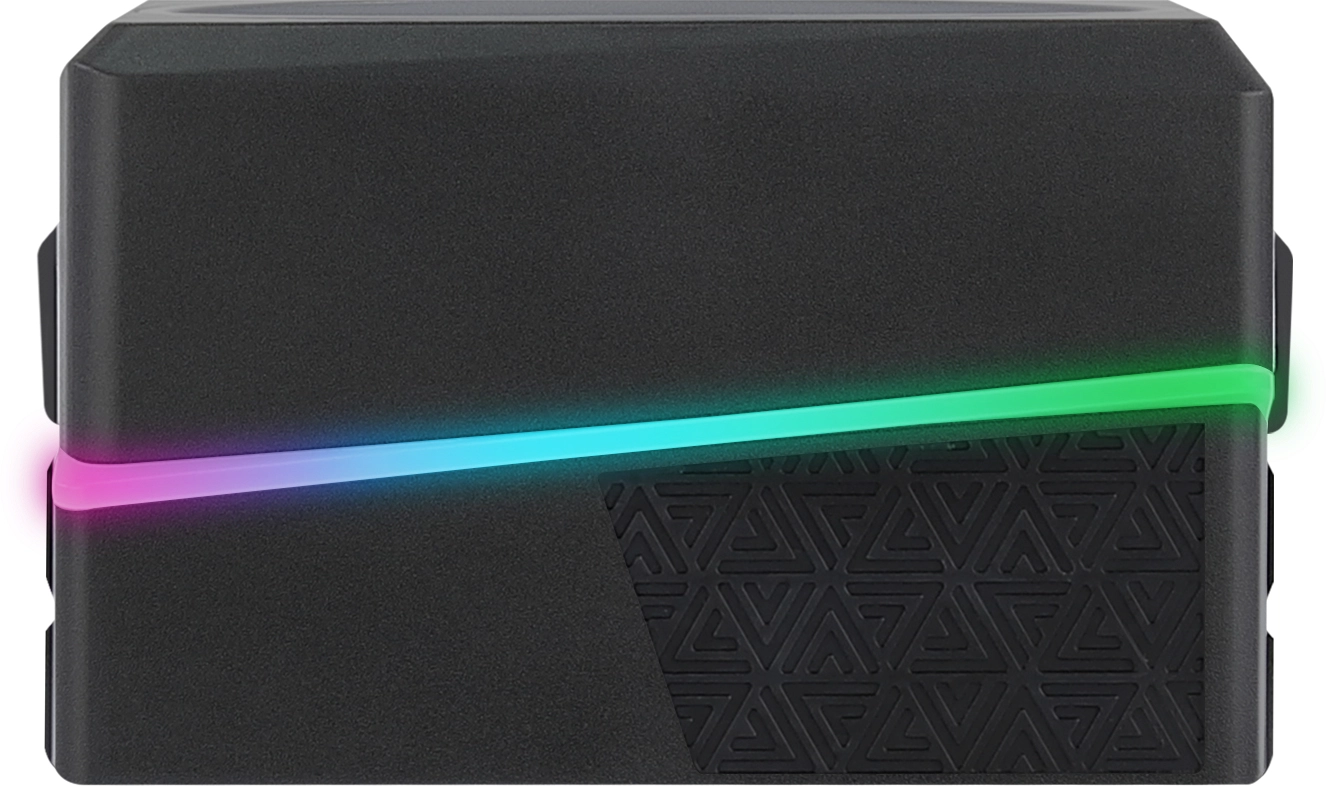

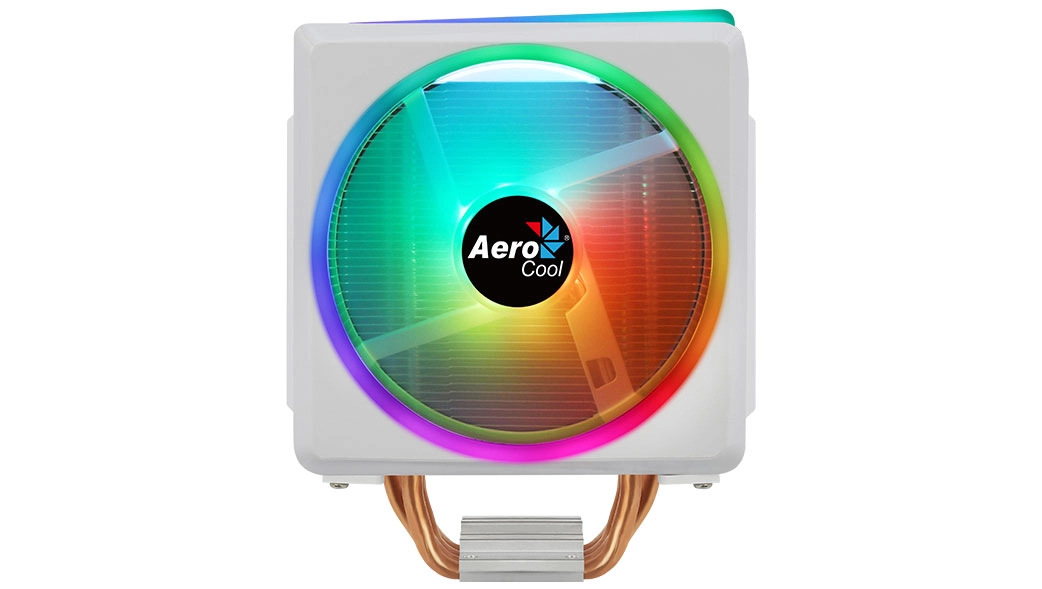

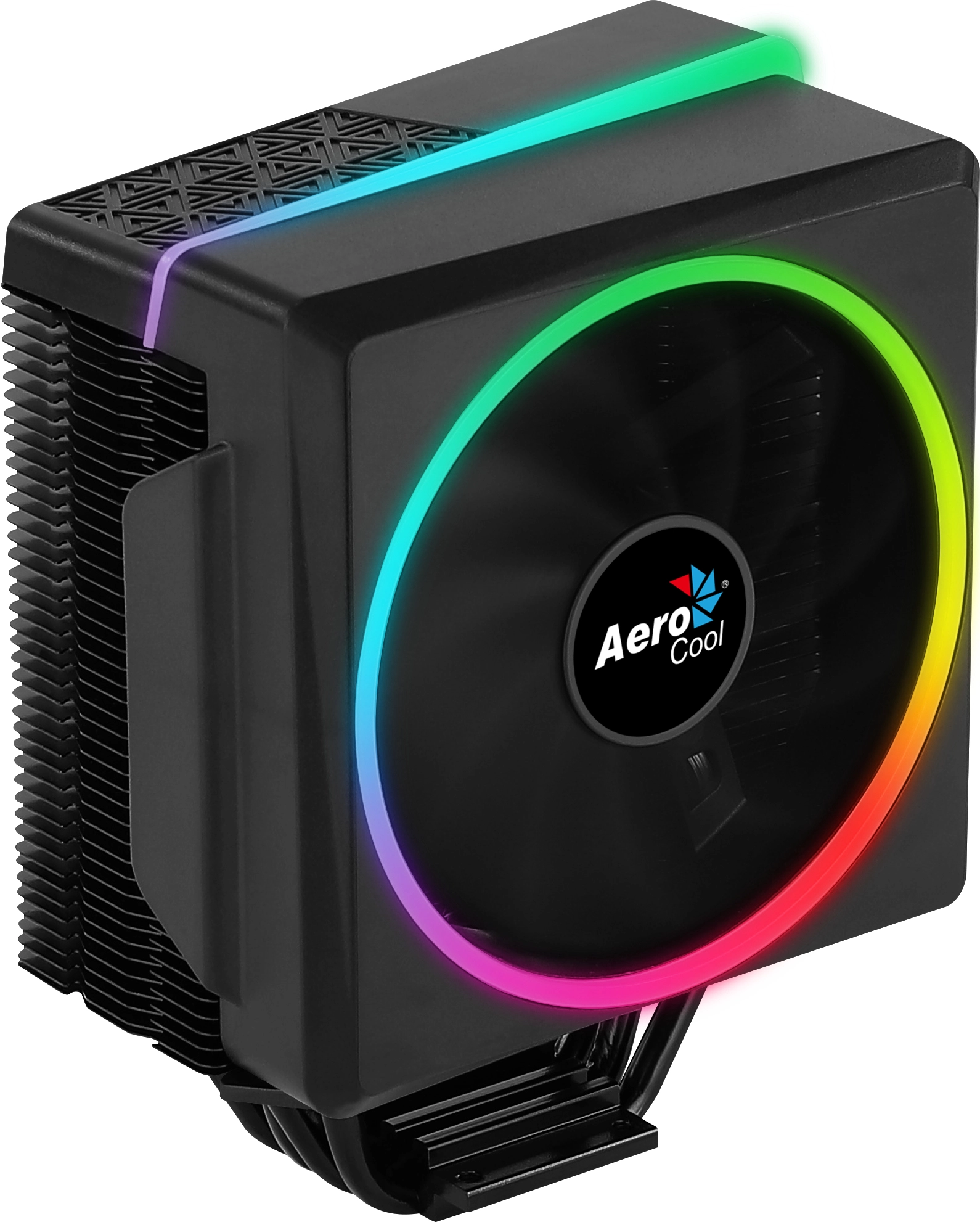

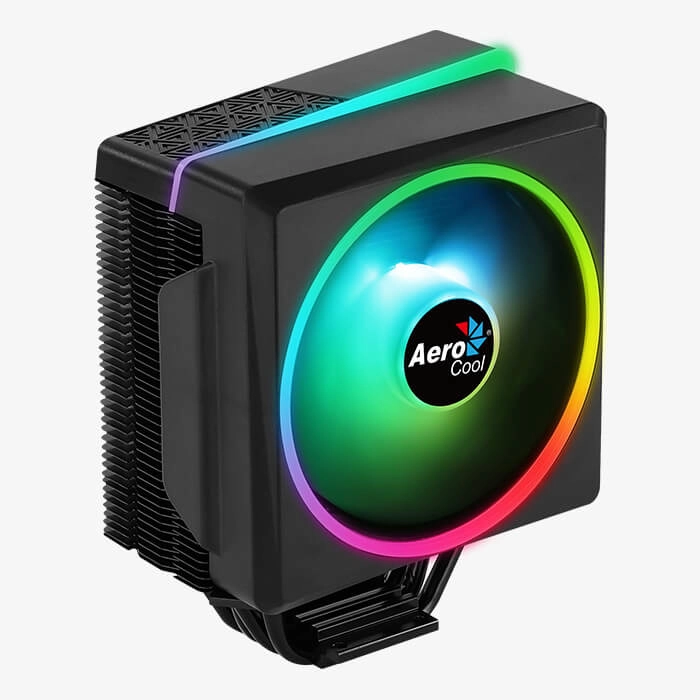

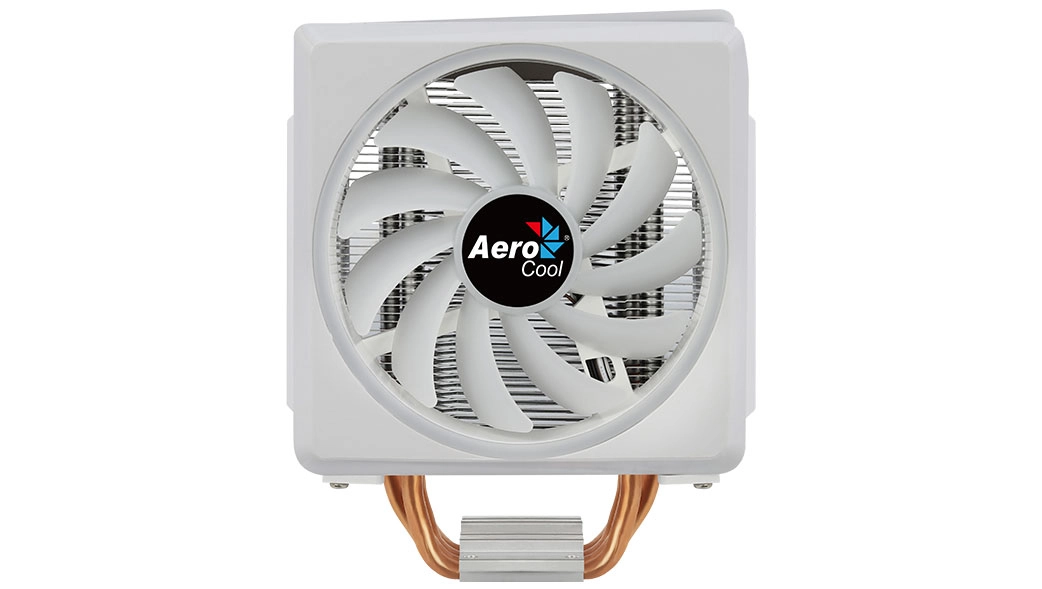

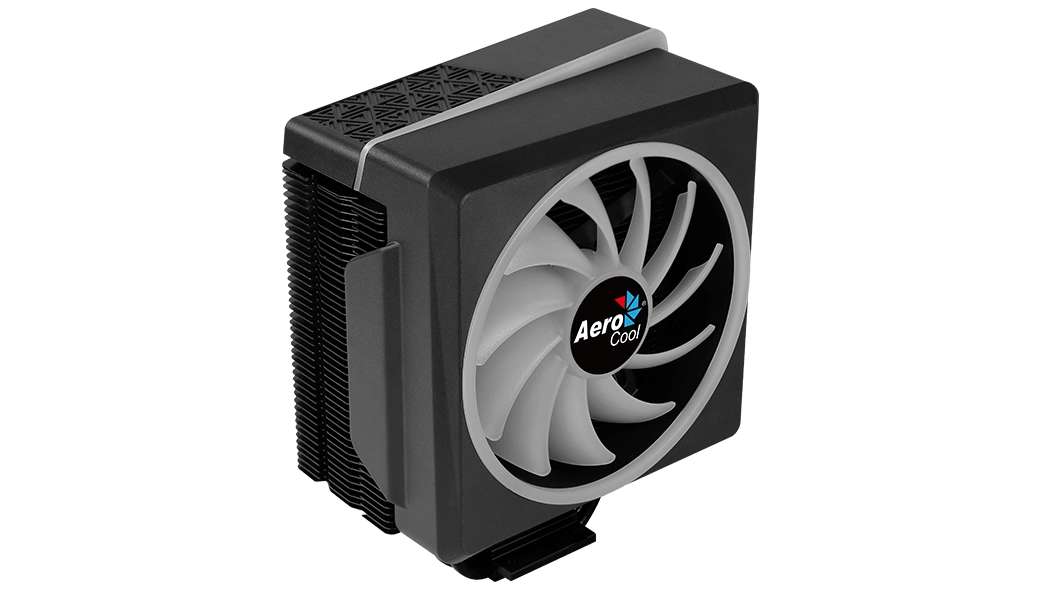

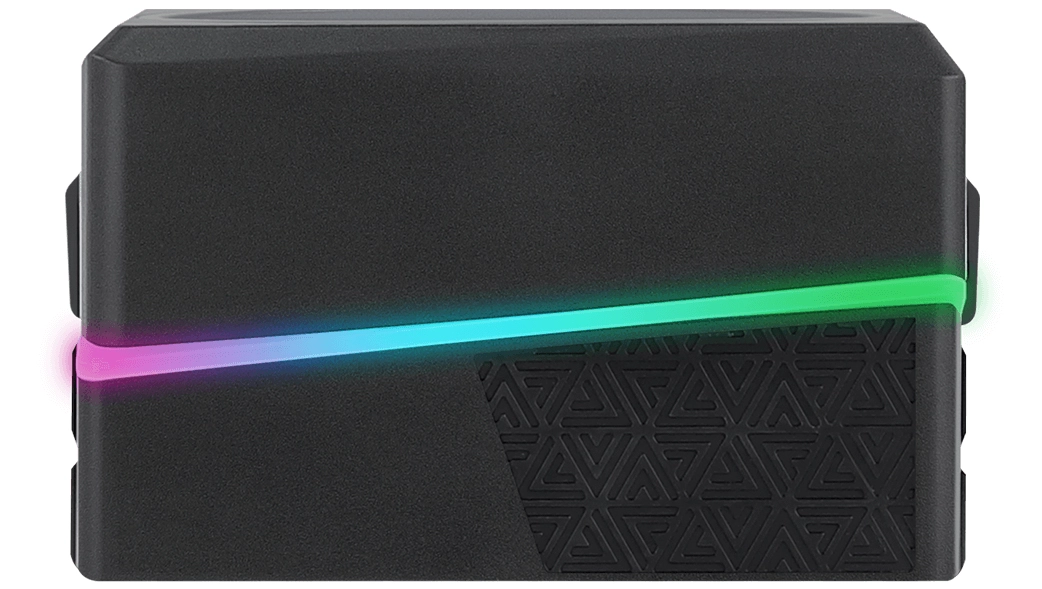

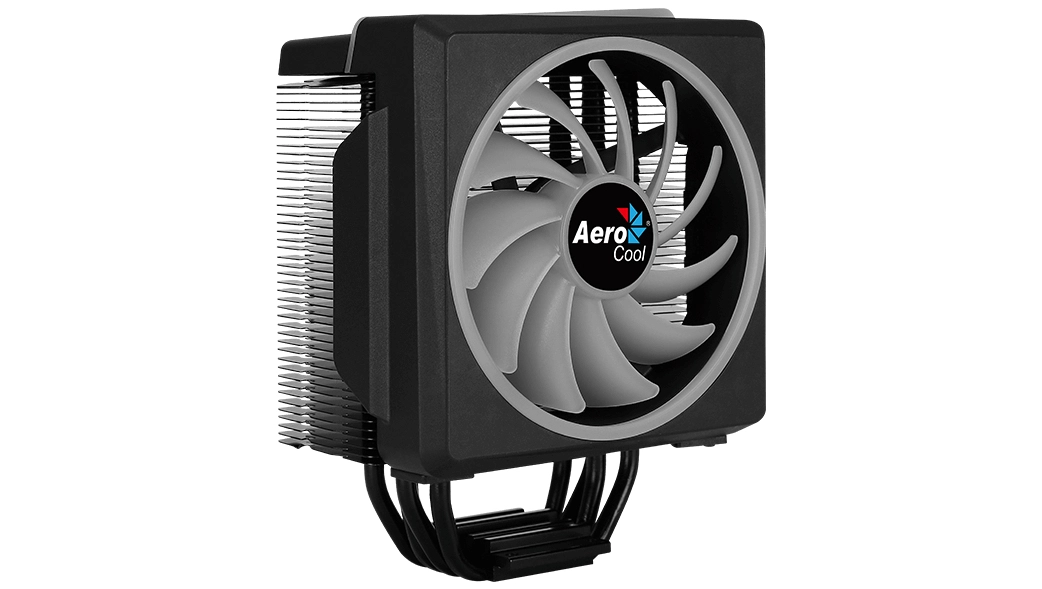

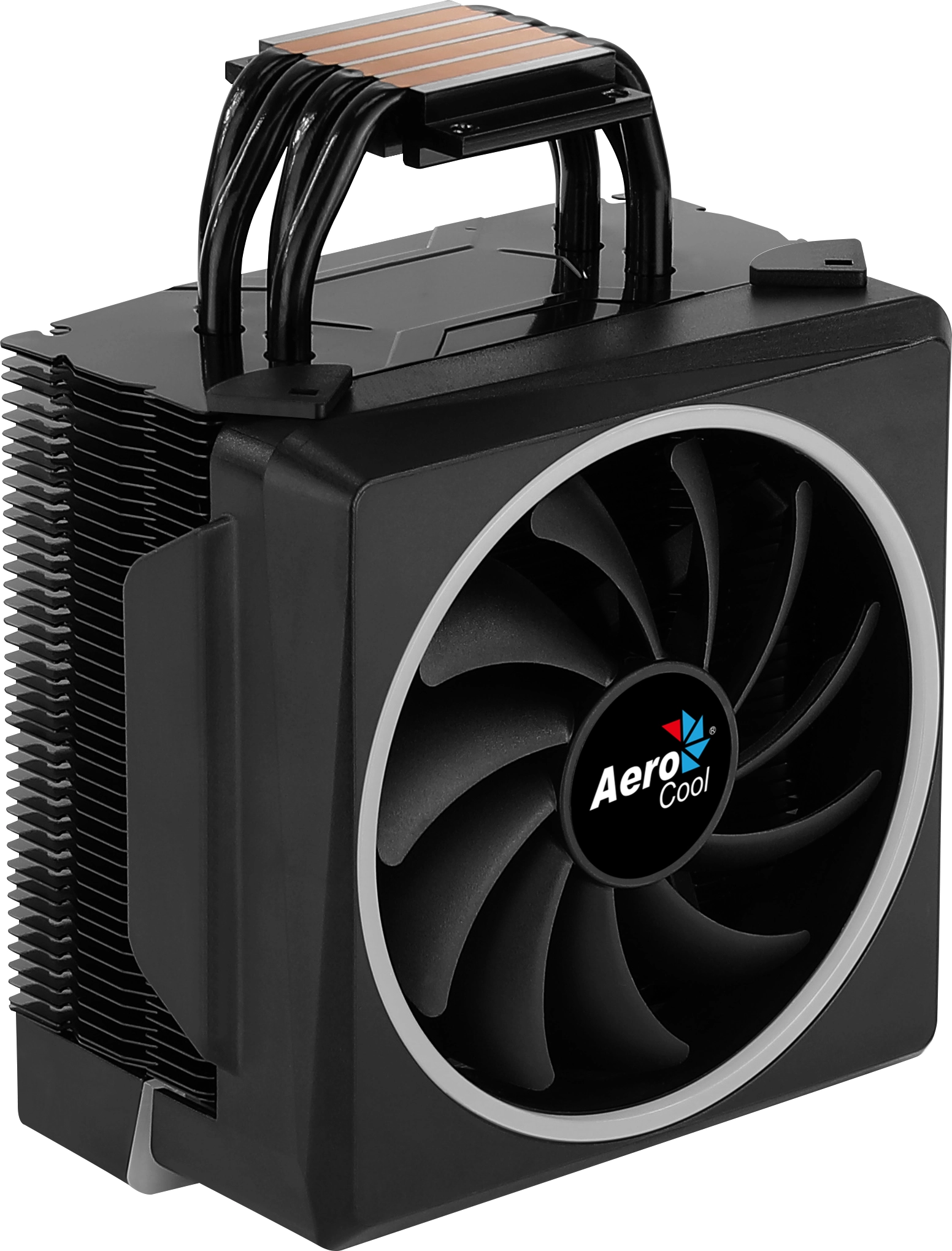

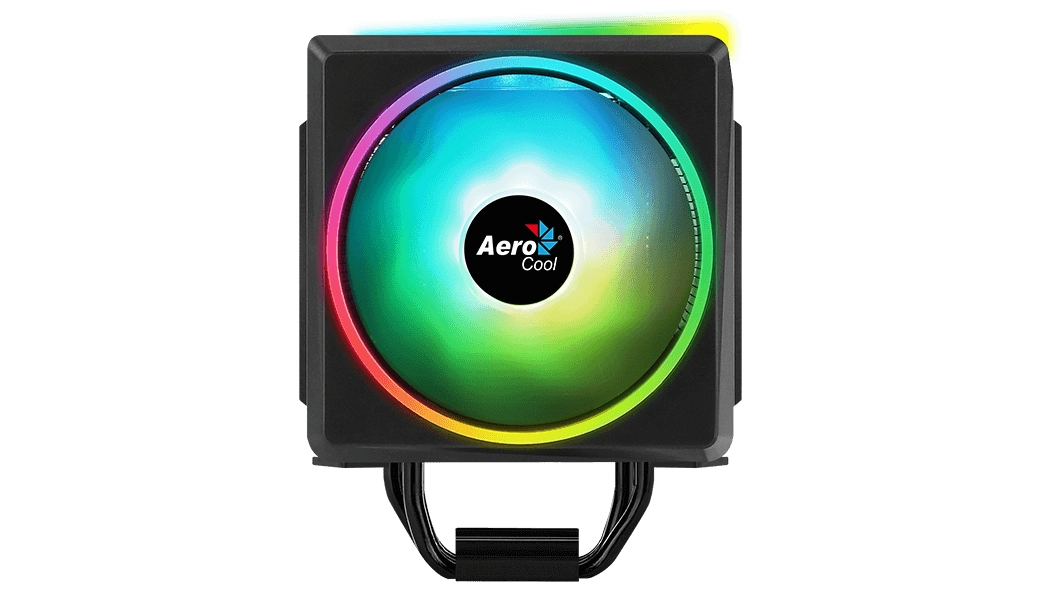

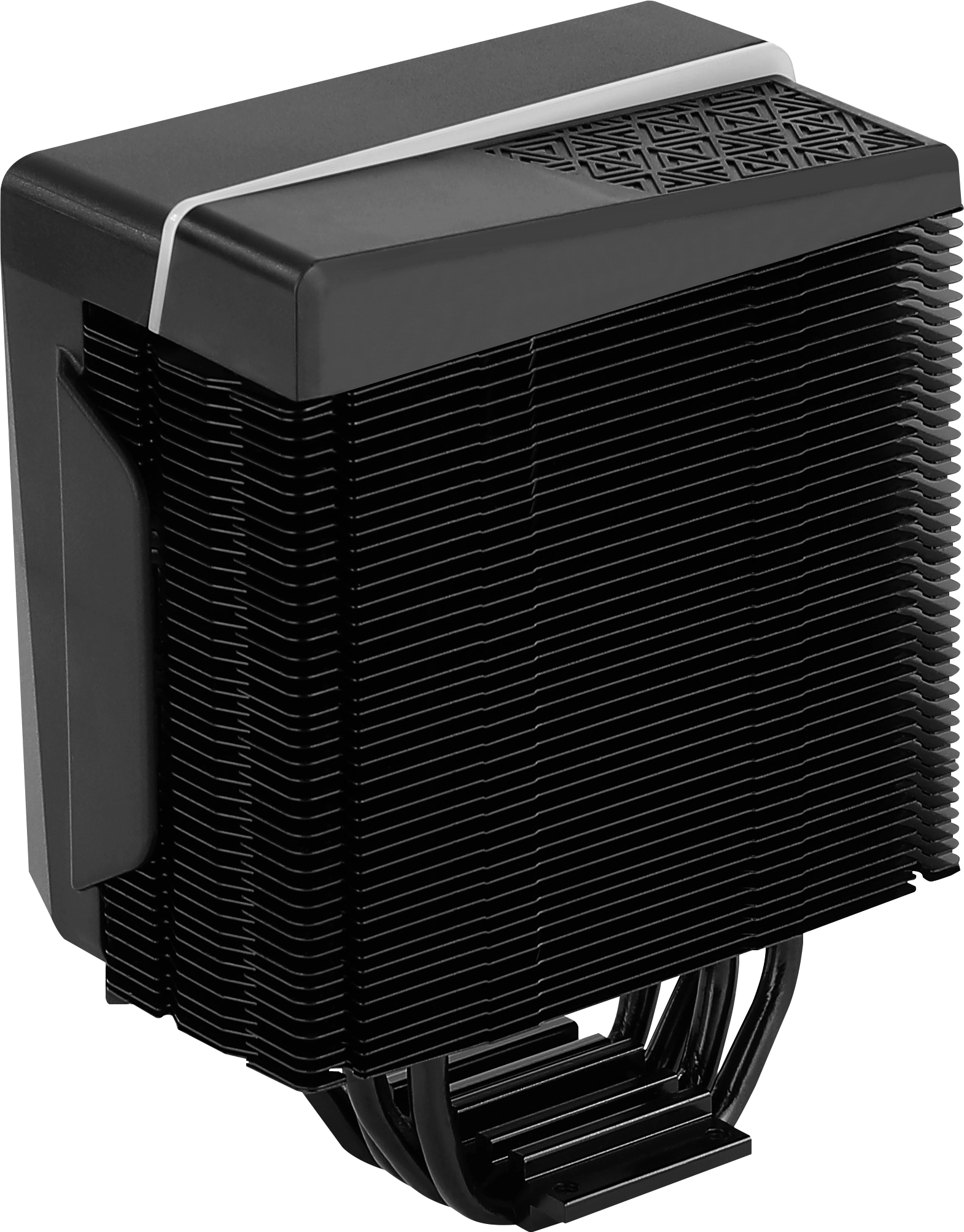

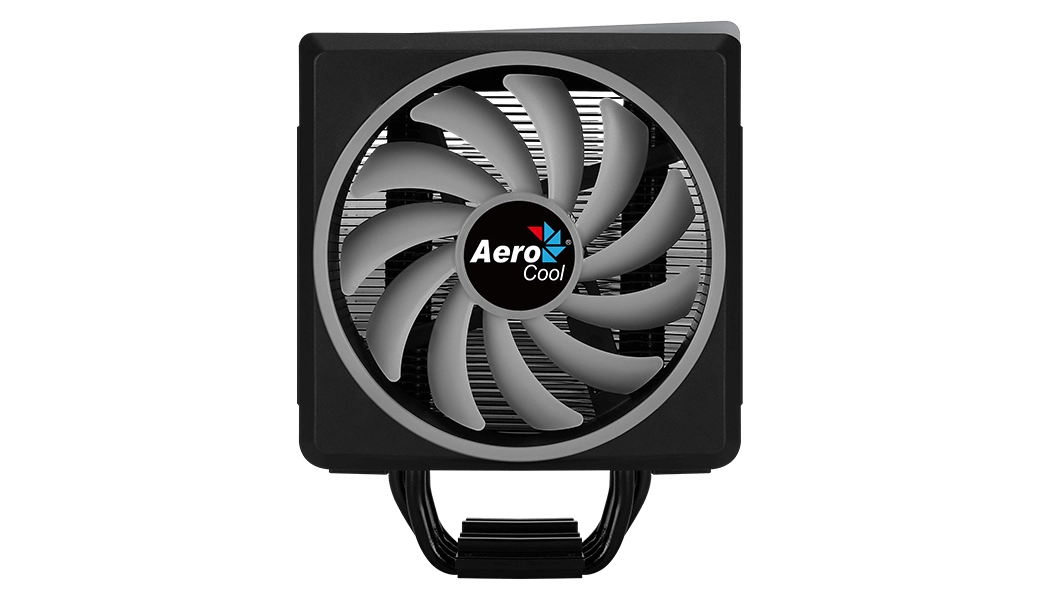

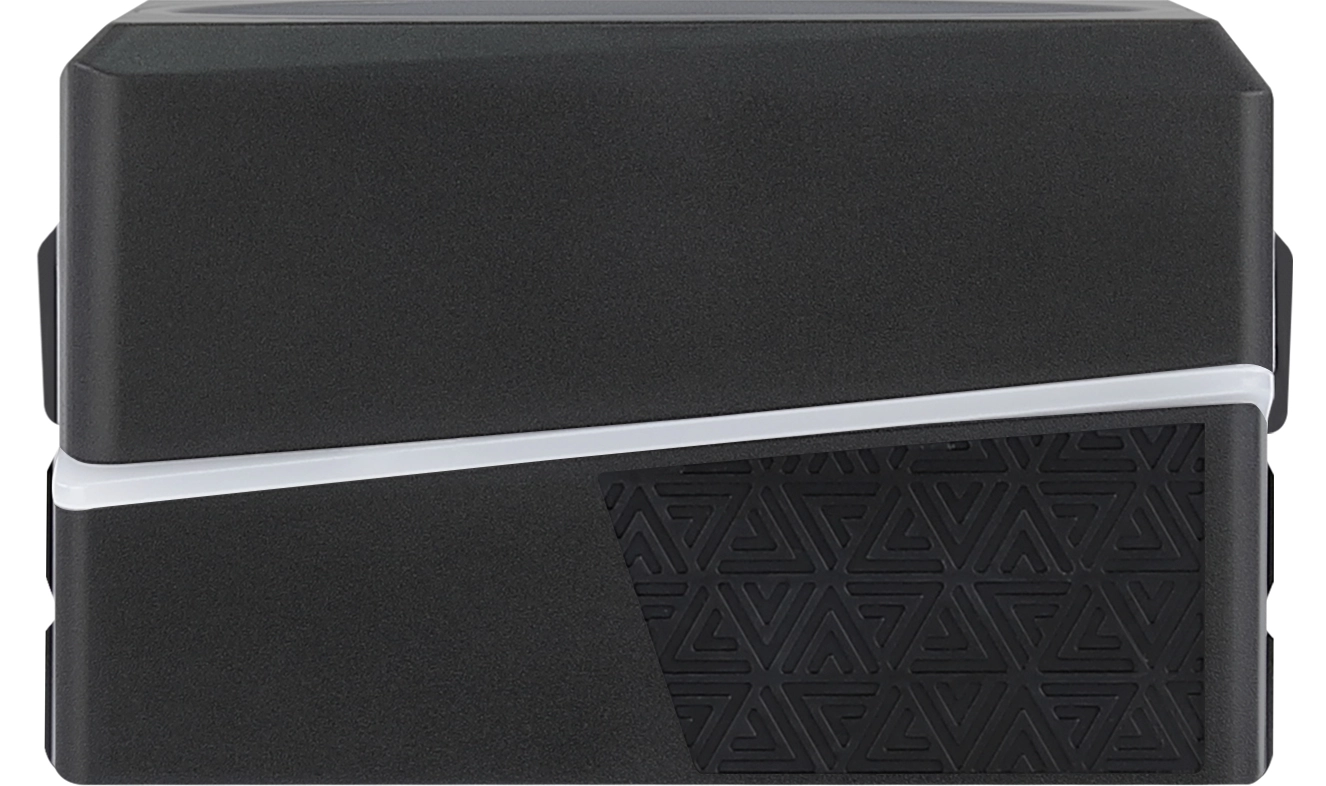

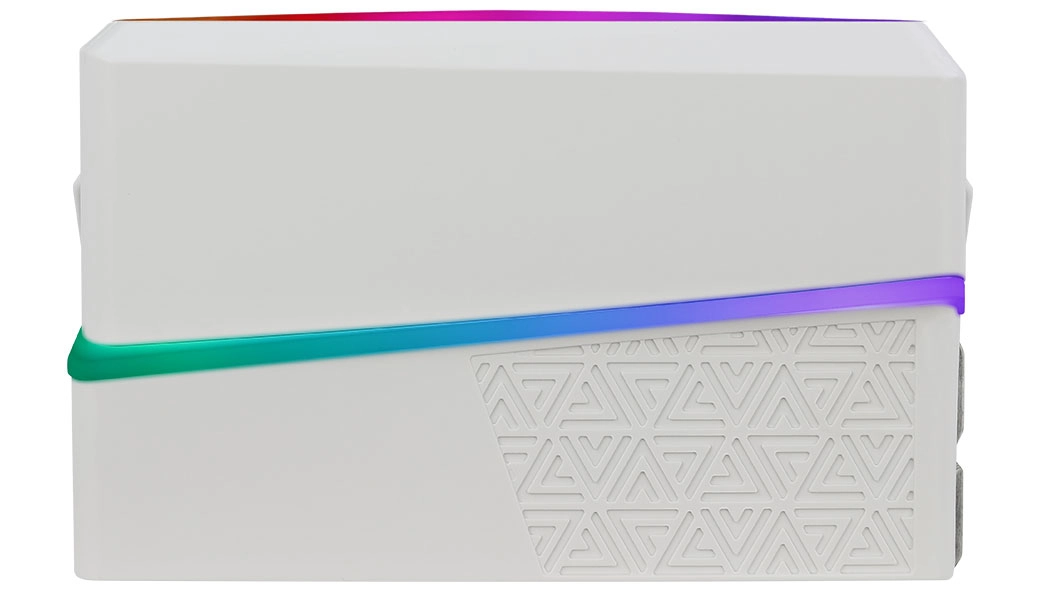

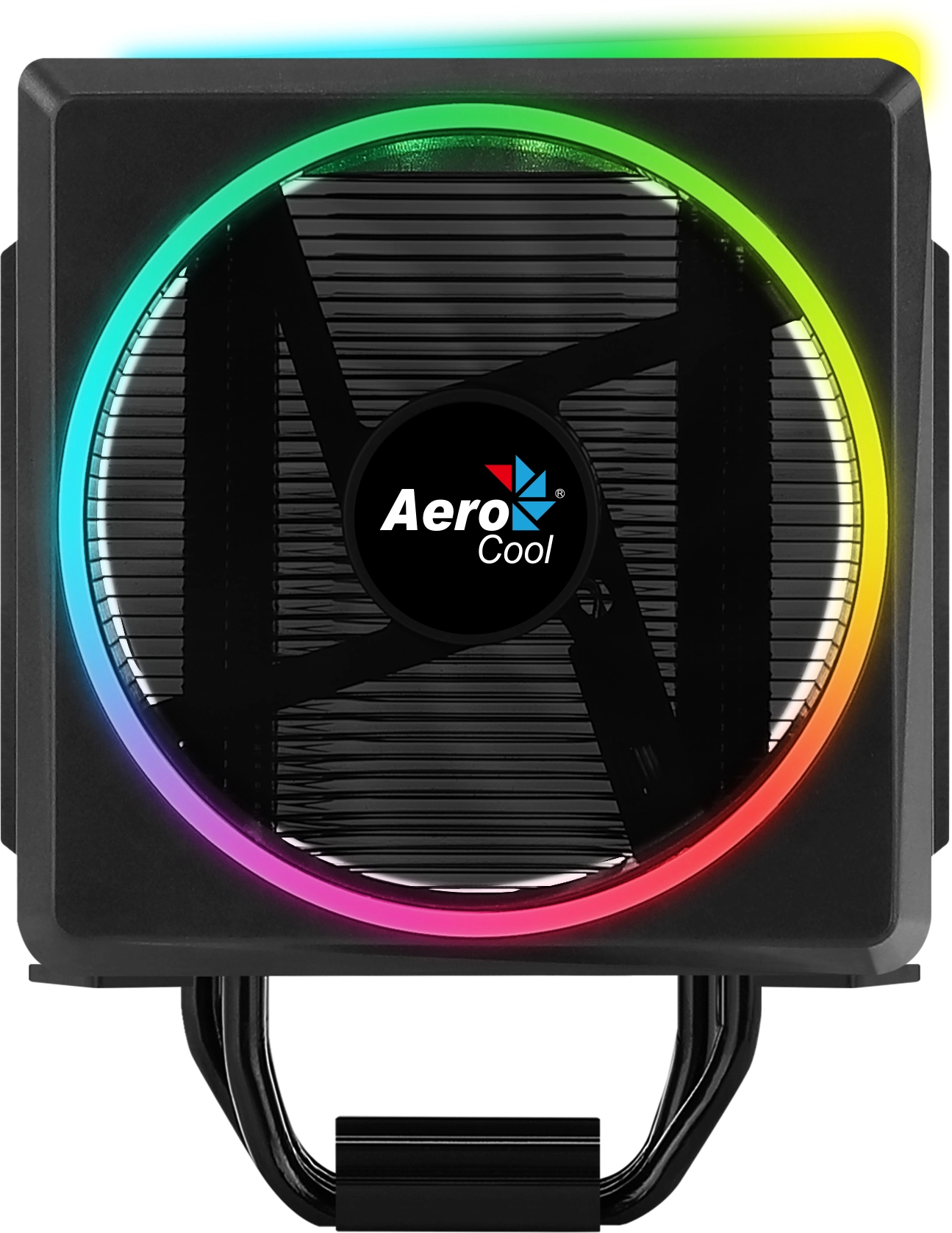

PWM air cooling solution with stylish Addressable RGB LED on the front and side of the air cooler. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increase heat dissipation area and improves efficiency of dissipation. Cover on the side of the air cooler achieves a unidirectional air flow, improving heat dissipation. Comes equipped with 12cm Addressable RGB fan with translucent fan blades that can be controlled using Addressable RGB motherboard or LED control button. DYNAMIC RGB LED DESIGN Featuring an RGB LED Ring on the front of the air cooler and a 12cm Addressable RGB fan with translucent fan blades, this cooler adds a stylish and dynamic effect to your rig. EQUIPPED WITH 12 CM ADDRESSABLE RGB FAN Comes equipped with 12cm Addressable RGB fan that can be controlled using Addressable RGB motherboard or LED control button. Translucent fan blades allow you to fully appreciate this fan’s beautiful RGB lighting. ADDRESSABLE RGB COMPATIBLE Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync and MSI Mystic Light Sync as well as Gigabyte RGB Fusion motherboards using 3-Pin XWD connector. TOP COVER FOR IMPROVED AIR FLOW Cover on the top of the air cooler with an RGB LED Slash design achieves a unidirectional air flow, allowing heat to dissipate more quickly and efficiently while delivering stylish flair. HEAT CORE TOUCH TECHNOLOGY (HCTT) 4 Heatpipes provide a perfectly flat and smooth surface to maximize contact surface area. This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation. PWM HIGH-PRESSURE FAN 120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster. HIGH EFFICIENCY FINS Upgraded high efficiency fins for maximum thermal performance. Black coating on fins allows for faster heat absorption, improving the efficiency of heat dissipation. COMPATIBILITY Compatible with most current motherboard designs. Socket compatibility: LGA 2066/2011/115X/775 AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
