MSI MAG CORELIQUID E240 CPU Liquid Cooler - Black | 306-7ZW5E17-C24
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The MAG CORELIQUID E Series’ circular shape represents the cyclical nature of time and the continuous flow of energy.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

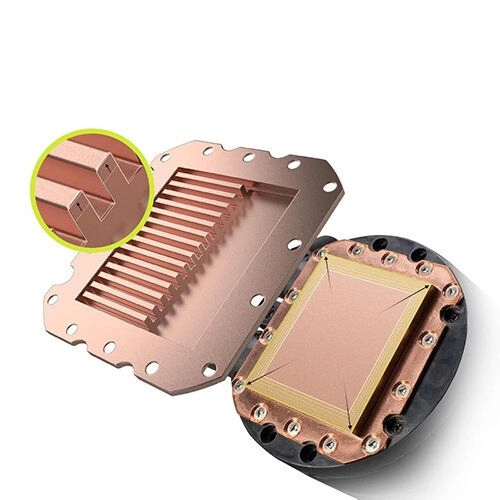

ACHIEVE FULL CPU COVERAGE
By enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E Series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.
Pump Cooling Design
PUMP COOLING DESIGN
Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.
HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.
EVAPORATION PROOF TUBING
The multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh.
FAN CONSTRUCTION
The fan's FDB bearing helps reduce noise level while minimizing vibrations.
INTEGRATING WITH THE SYSTEM ENVIRONMENT
With the MSI CENTER software, users can integrate MSI liquid cooling with MSI motherboard and adjust the speed of the cooling fan and pump through the motherboard. The MSI CENTER provides users with easy-to-use controls to fine-tune their hardware and achieve optimal computer performance.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
Radiator Size
- 240 mm
- Radiator Dimensions (WxDxH)
277 x 119.2 x 27 mm / 10.91 x 4.69 x 1.06 inches
- Radiator Material: Aluminum
- Water Cooling Tube Material: Black Rubber
- Number of Fans: 2
Fan Dimensions (WxDxH)
120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
Fan Air Flow
Fan Bearing
- Fluid Dynamic Bearing (FDB)
Fan Life Expectancy
Fan Rated Current
Fan Power Consumption
Yes
- Cable Length (PWM Cable)
- 500 mm
Fan Connector
RGB Connector
Pump Life Expectancy
- 200,000 hours in typical use
- Pump Noise Level
20 dBA (avg.)
Pump Rated Current
Pump Power Consumption
Pump Speed
Pump Connector
Copper
- Block Dimensions (WxDxH)
- 41±0.2 x 47.6±0.2 mm
Intel Socket Support
- LGA 1150/1151/1155/1156/1200/1700
AMD Socket Support
Accessories
- 1 x 1 to 2 Fan PWM cable
- 1 x Molex 4-Pin to 4-Pin fan cable
- 1 x Thermal paste
