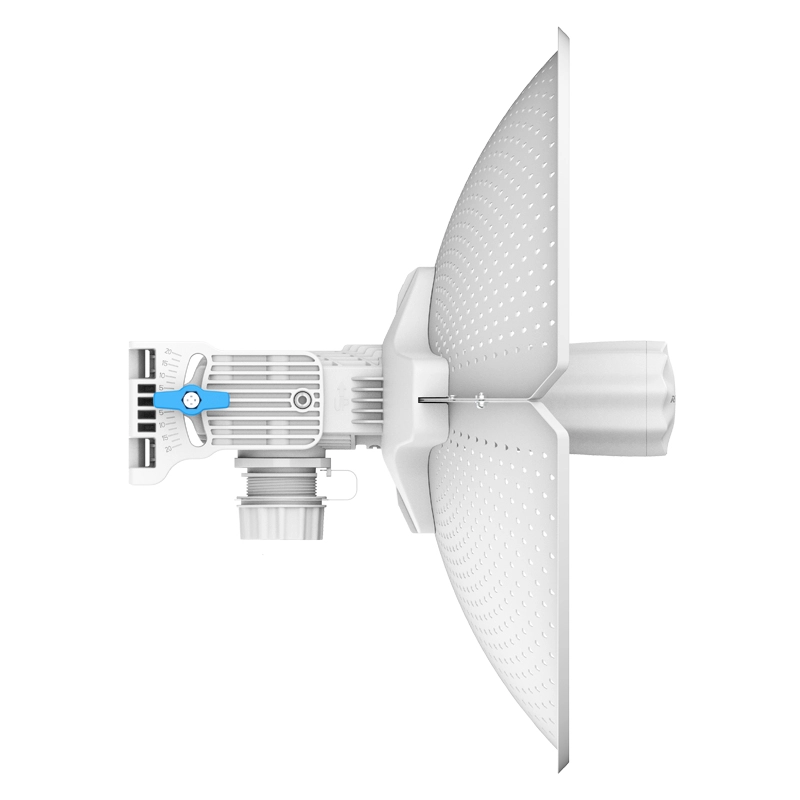

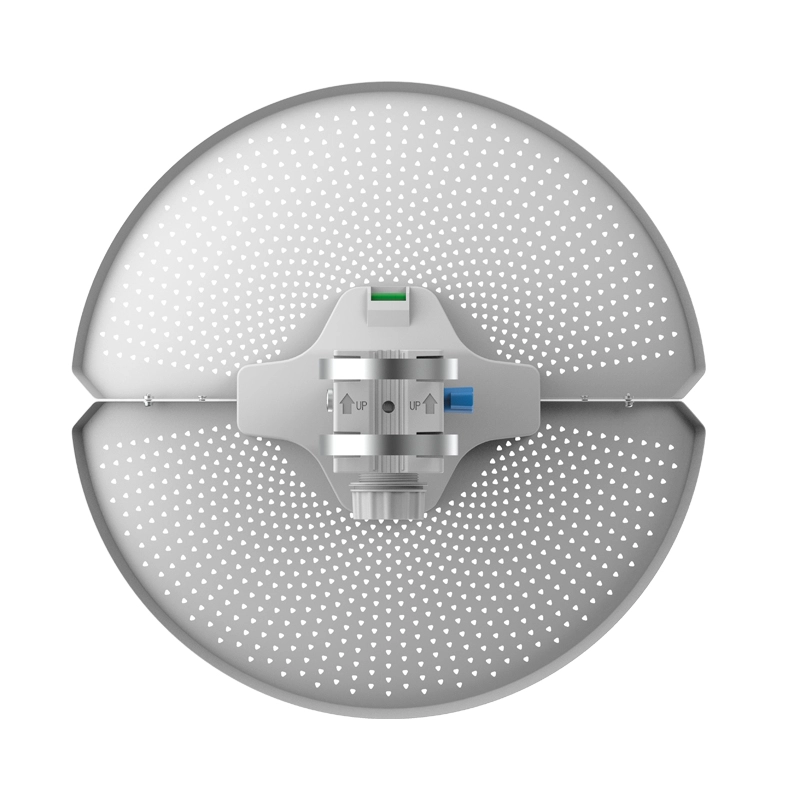

Ruijie Networks RG-AirMetro460F

Name: Ruijie Networks RG-AirMetro460F
Brand: Ruijie Networks
SKU: 755923
Availability: InStock

Best offer

AED

260⁰⁰

Key Features

Pan/tilt-axis range: 9°
PoE+ Injector(s): Yes
Ethernet LAN interface type: Fast Ethernet
Antenna gain level (max): 23dBi
Remote control function: Yes
Maximum data transfer rate: 867Mbit/s
Frequency band: 2.4 - 5 GHzGHz
DHCP server: Yes
Product type: Network bridge
Power over Ethernet (PoE) voltage: 24V
Surge protection: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Ethernet LAN: Yes
Ethernet LAN data rates: 10Mbit/s
Modulation: 256-QAM

Specifications

Features

Mean time between failures (MTBF)

400000 h

Maximum transfer distance

15000 m

Security algorithms

WPA2-PSK

Product colour

White

Antenna gain level (max)

23 dBi

Remote control function

✓

Maximum data transfer rate

867 Mbit/s

Frequency band

2.4 - 5 GHz

DHCP server

✓

Product type

Network bridge

Weight & dimensions

Height

271 mm

Depth

368.50 mm

Width

368.50 mm

Power

Power consumption (max)

9 W

Power over Ethernet (PoE)

✓

Power source type

PoE

Power over Ethernet (PoE) voltage

24 V

Performance

Surge protection

✓

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)

✓

Design

International Protection (IP) code

IP65

Reset button

✓

LED indicators

Yes

Packaging content

Manual

✓

Cables included

Power

Mounting bracket(s) included

✓

PoE+ Injector(s)

✓

Network

Ethernet LAN

✓

Ethernet LAN data rates

Ethernet LAN interface type

Fast Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Antenna

Pan/tilt-axis range

9 °

Receiver

Receiver sensitivity

Nominal Receive Sensitivity @20 MHz Channel MCS0=-95dBm TO MCS7=-77dBm Nominal Receive Sensitivity @40 MHz Channel MCS0=-91dBm TO MCS7=-73dBm Nominal Receive Sensitivity @80 MHz Channel MCS0=-89dBm TO MCS9=-64dBm

Radar

Modulation

256-QAM

Product Details

Signal Enhancement The Secret of Circular Grace Compared with Square Antenna: The total gain of the circular is increased; The gain in both horizontal and vertical directions is more balanced; Therefore, under the same coverage area, the signal of the circular antenna is stronger.

Files

User manual

mmo_122893377_1733142384_0592_2515770.pdf

PDF• 16.5 MB

Product Brochure

mmo_122893377_1733142371_479_3686270.pdf

PDF• 2.7 MB
