Trendnet TEW-840APBO2K

Name: Trendnet TEW-840APBO2K
Brand: Trendnet
SKU: 203578
Availability: InStock

Best offer

AED

1 420⁵⁰

Key Features

PoE+ Injector(s): Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Power over Ethernet plus (PoE+) ports quantity: 1
Antenna design: Internal
Signal strength: 23dBm
Antenna gain level (max): 14dBi
Maximum data transfer rate: 867Mbit/s
Channels quantity: 165channels
Frequency band: 5.725GHz – 5.850GHz, FCC: 5.150GHz – 5.250GHzGHz
Product type: Network bridge
Surge protection: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Quick installation guide: Yes
Wi-Fi band: Single-band (5 GHz)
Modulation: 16-QAM, 256-QAM, 64-QAM, BPSK, OFDM, QPSK

Specifications

Features

Quality of Service (QoS) support

✓

Security algorithms

AES, SNMPv2, SNMPv3, SSH-2, WEP, WPA2-Enterprise, WPA2-PSK

Connectivity technology

Wired & Wireless

Product colour

White

Signal strength

23 dBm

Antenna gain level (max)

14 dBi

Maximum data transfer rate

867 Mbit/s

Channels quantity

165 channels

Frequency band

5.725GHz – 5.850GHz, FCC: 5.150GHz – 5.250GHz

Product type

Network bridge

Weight & dimensions

Weight

268 g

Height

35 mm

Depth

100 mm

Width

185 mm

Management features

Web-based management

✓

Power

AC input voltage

100-240 V

DC input voltage

24 V

AC input frequency

50 - 60 Hz

Power consumption (max)

9.50 W

Power over Ethernet (PoE)

✓

Power source type

Performance

Surge protection

✓

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)

✓

Design

International Protection (IP) code

IP56

Reset button

✓

LED indicators

Yes

Packaging content

Mounting bracket(s) included

✓

Quick installation guide

✓

PoE+ Injector(s)

✓

Network

Wi-Fi

✓

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Wi-Fi band

Single-band (5 GHz)

Ports & interfaces

Ethernet LAN (RJ-45) ports

Power over Ethernet plus (PoE+) ports quantity

Operational conditions

Operating relative humidity (H-H)

0 - 90 %

Technical details

Certification

CE FCC

Antenna

Antenna design

Internal

Radar

Modulation

16-QAM, 256-QAM, 64-QAM, BPSK, OFDM, QPSK

Product Details

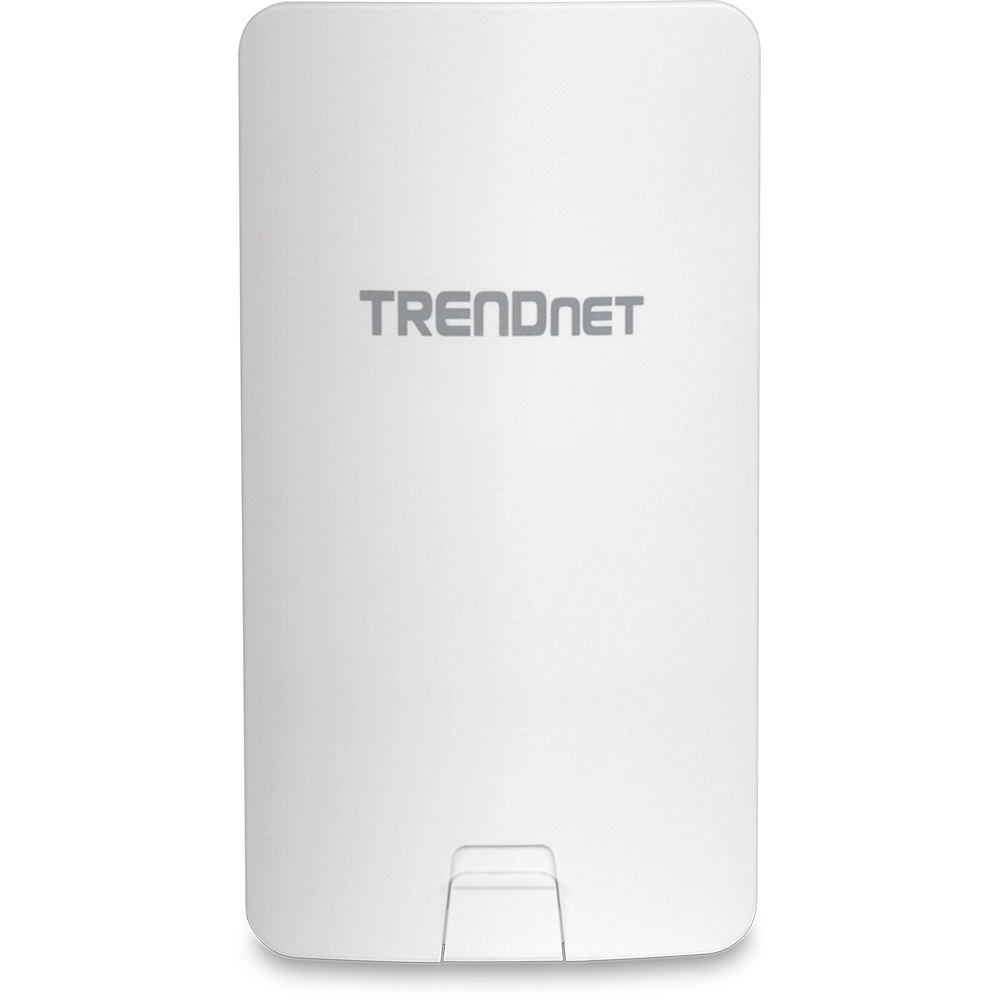

TRENDnet’s 14 dBi WiFi AC867 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-840APBO2K, provides longrange wireless AC867 point-to-point connectivity.This preconfigured outdoor WiFi bridge kit provides installers the simplest way to create a long-distance wireless point-to-point bridge. The outdoor WiFi bridge kit conveniently links two locations together with wireless AC speed and performance. The IP56 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware.

Files

Product Brochure

mmo_70036058_1614173288_997_104.pdf

PDF• 1.5 MB

User manual

mmo_70036058_1614173297_207_37.pdf

PDF• 2.6 MB
