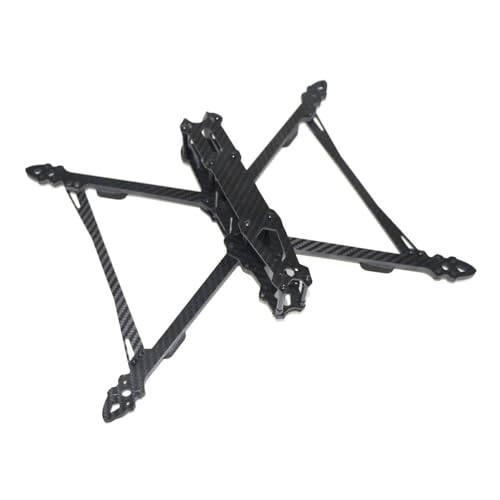

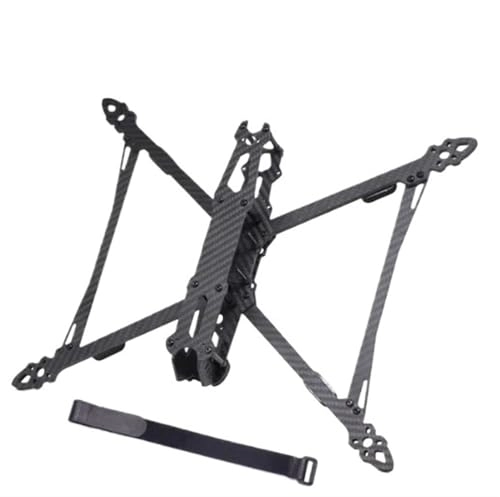

CTRXTGRL Mark4 V2 - 3K Carbon Fiber 367mm 387mm 427mm

Description : Mark4 V2 8" 367mm Carbon Fiber Frame Parameters: Frame structure: X-type Wheelbase: 367 mm Size: 230.1mm x 278.5mm Bottom Plate Thickness: 3mm Average plate thickness: 3 mm Top plate thickness: 2 mm Arm thickness: 6 mm. Connection plate: 2 mm Camera side plate thickness: 2.5mm Hole spacing Compatible with camera installation: 19mm Image transmission installation hole spacing: 20*20mm and 305*305mm Flight control installation hole spacing: 20*20mm and 305*305mm Interior space height: 35 mm Motor Installation Hole Position: 16 x 16mm and 1920mm Mark4 V2 9" 387mm Carbon Fiber Frame
