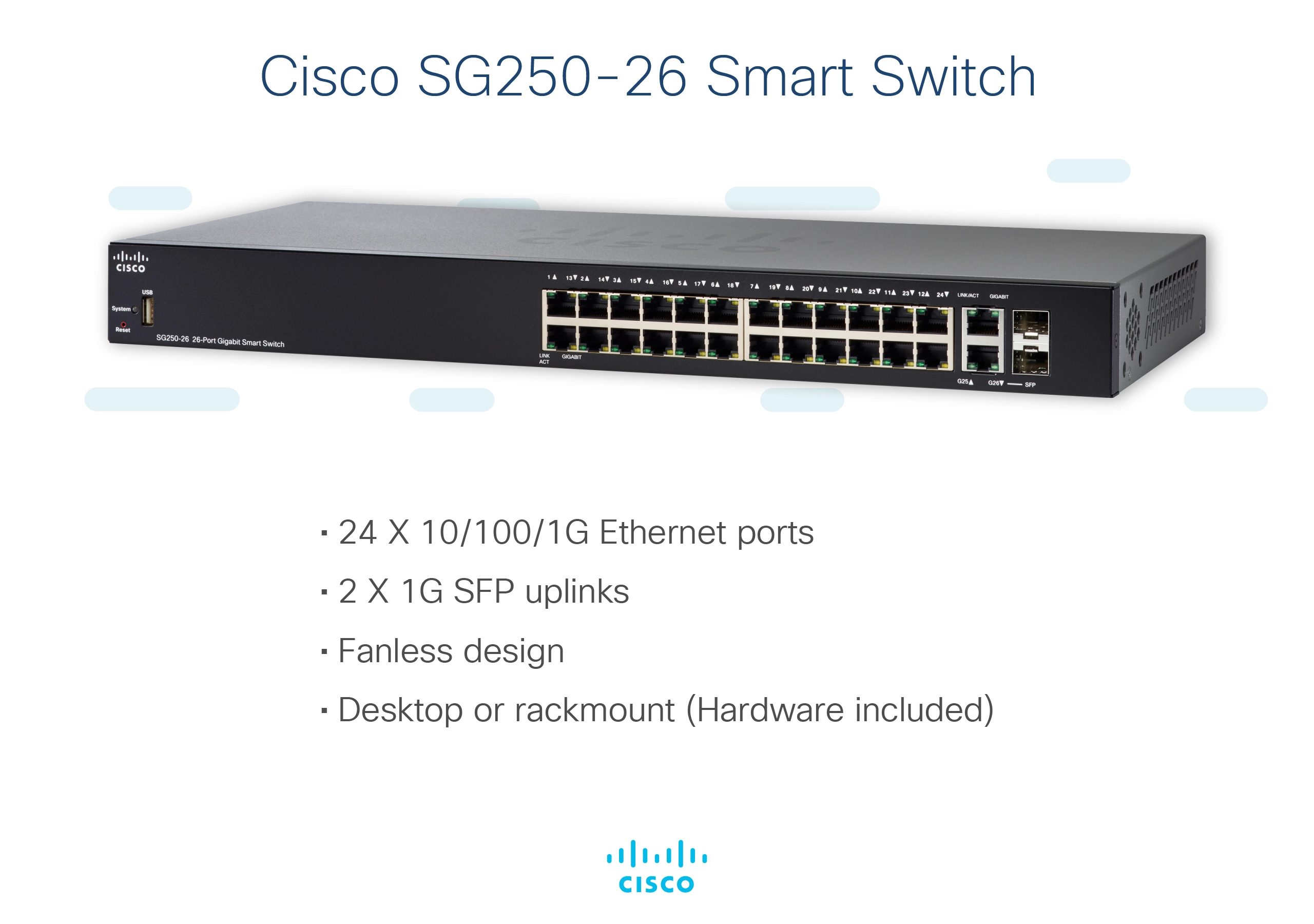

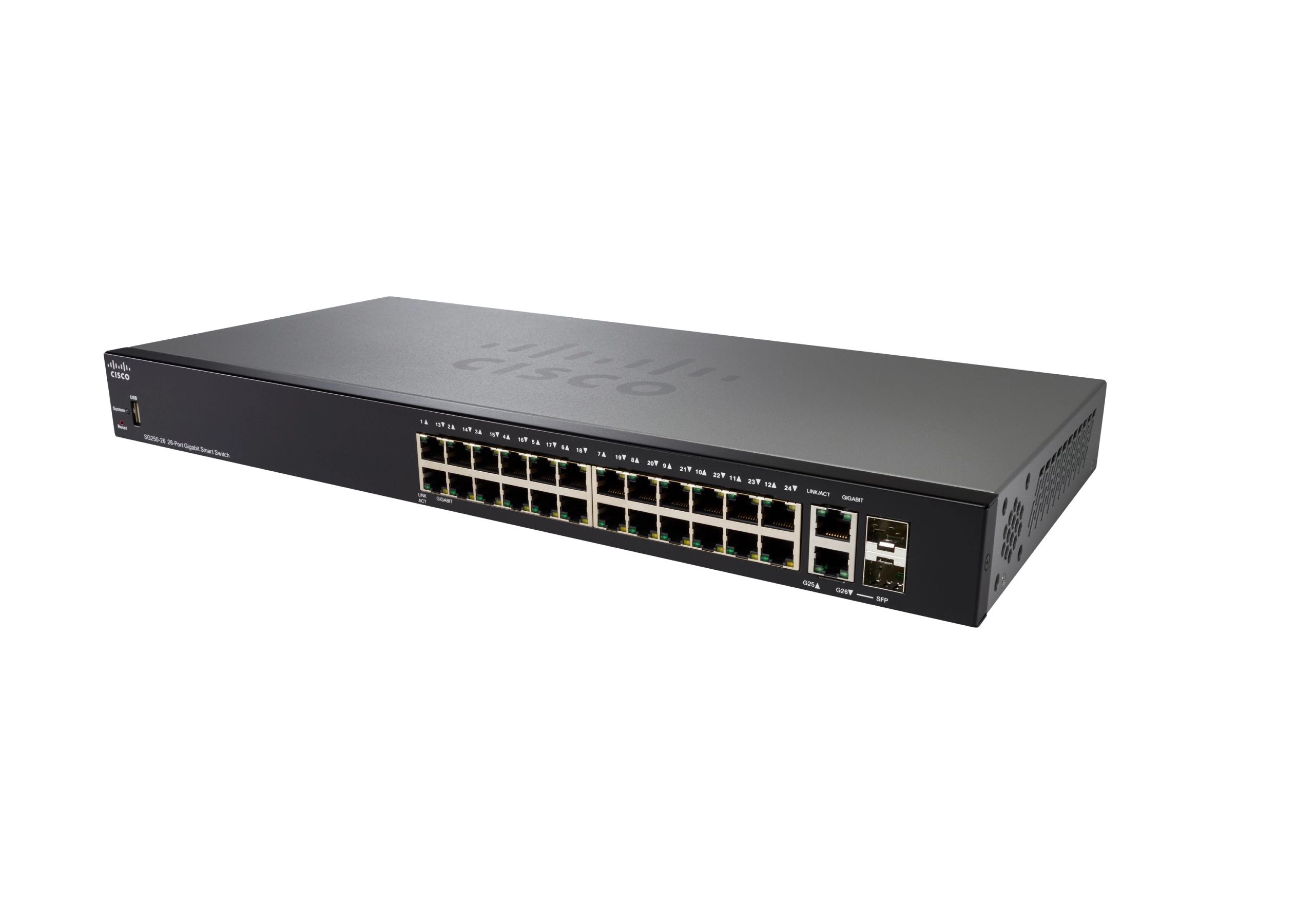

Cisco SG250-26 - 26-ports

Name: Cisco SG250-26 - 26-ports
Brand: Cisco
SKU: 708388
Availability: InStock

Best offer

AED

2 594⁵⁵

Key Features

Switch layer: L2/L3
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 38.69Mpps
DHCP features: DHCP client, DHCP relay, DHCP server
Uplink ports quantity: 2
Number of queues: 4
Number of static routes: 32
Number of IP interfaces: 16
Multicast Listener Discovery (MLD) snooping: MLD v1/2
Static route: Yes
Number of multicast groups filtered: 4000
Gigabit Ethernet (copper) ports quantity: 24
Port mirroring: Yes
Power over Ethernet plus (PoE+) ports quantity: 24

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

343592.66 h

Internal memory

512 MB

Processor frequency

800 MHz

Cloud-managed

✓

Quality of Service (QoS) support

✓

On/off switch

✓

Security algorithms

802.1x RADIUS, SSH, SSL/TLS

Rack mounting

✓

Noise level

37.50 dB

Stackable

✗

Virtual LAN features

Voice VLAN

Product colour

Black

Packet buffer memory

12 MB

Queue scheduling algorithms

Access Control List (ACL)

✓

Traffic classification

✓

Traffic shaping

✓

Access Control List (ACL) rules

512

Switching capacity

52 Gbit/s

MAC address table

8000 entries

Authentication type

IEEE 802.1x, RADIUS

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Forwarding rate

38.69 Mpps

Multicast support

✓

Static route

✓

Multicast Listener Discovery (MLD) snooping

MLD v1/2

Switch layer

L2/L3

Packaging data

Package weight

3860 g

Package height

108 mm

Package depth

545.10 mm

Package width

388.10 mm

Weight & dimensions

Weight

3810 g

Height

44 mm

Depth

440 mm

Width

257 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

Number of multicast groups filtered

4000

Power

Power plug type

Type C

AC input voltage

100 - 240 V

AC input frequency

50 Hz

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

100 W

Number of power supply units

Wireless LAN features

IGMP snooping

✓

Design

Reset button

✓

LED indicators

Activity, Link, PoE, Speed, System, Yes

Form factor

Redundant fans support

✓

Computer system

Built-in processor

✓

Packaging content

Quick Start guide

Quick start guide

✓

Cables included

Power supply included

✓

Rack mount kit

✓

Network

Switching protocols

IGMP 1/2/3

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

HTTP/HTTPS, IPv4/IPv6, MIB, RMON, SNMP v1/2c/3, SNTP, TFTP, Telnet

VLAN support

✓

Number of VLANs

256

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Ethernet LAN data rates

10, 100

Active link detection

✓

Cable length detection

✓

Flow control support

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

10G support

✗

Link aggregation

✓

Jumbo frames

9000

Port mirroring

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Cable types supported

Cat5e

USB 2.0 ports quantity

Combo SFP ports quantity

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

Uplink ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

461.32 BTU/h

Technical details

Sustainability compliance

✓

Certification

CE mark, CSA (CSA 22.2), FCC 15 (CFR 47) A, FCC Part 15 (CFR 47) Class A, UL (UL 60950)

Switch type

Managed

Compliance certificates

CE, WEEE

Memory

Flash memory

256 MB

Protocols

IPv4 & IPv6 features

Dual stack IPv4/IPv6

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of IP interfaces

Number of static routes

Number of queues

Throughput

38.69 Mpps

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

Authentication

Guest VLAN, Port-based authentication

DHCP features

DHCP client, DHCP relay, DHCP server

Product Details

The Cisco SG250-26HP Switch is a 24-port Gigabit with Power over Ethernet and 2-port Gigabit Copper/SFP combo with additional high-performance capabilities that deliver network connectivity and reliability for all businesses, without complexity. You can deploy and configure a complete business network in minutes with Smart Network Application, FindIT Network Manager, and Network Plug and Play (PnP) support. Energy-efficient capabilities are embedded, including energy detect and Energy Efficient Ethernet (EEE); all provide an eco-friendly and cost-effective solution without compromising performance. This switch is part of the Cisco small and midsize business portfolio and is an affordable smart switch equipped with security, performance, and ease of use to help build a solid business network.

Files

Product Brochure

mmo_32157816_1515659410_3629_3336.pdf

PDF• 668.9 KB

Videos

Portfolio Overview Video

MP4• 8.8 MB

Reviews
