Generico TAKER G4

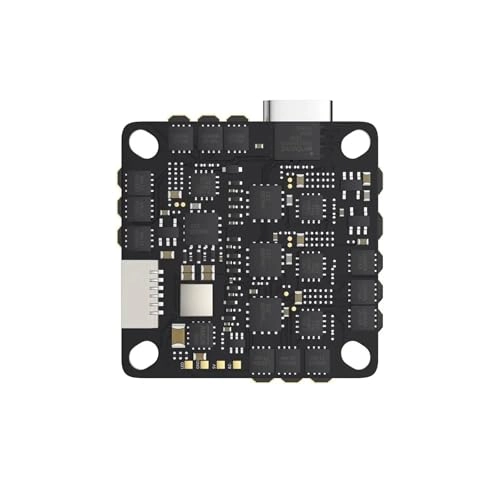

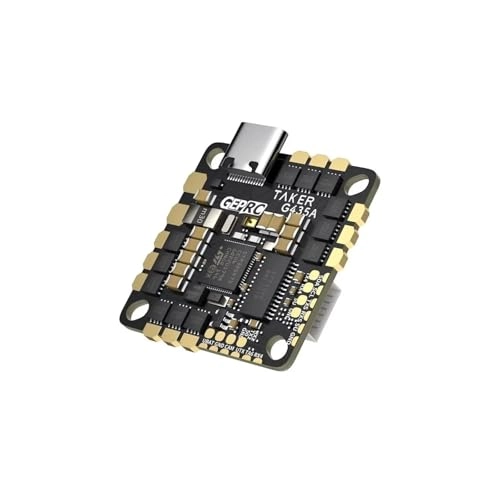

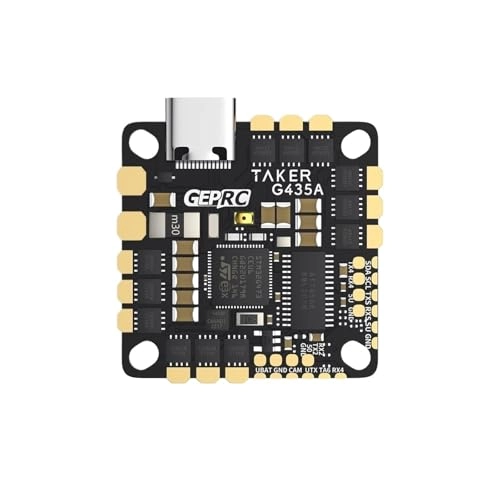

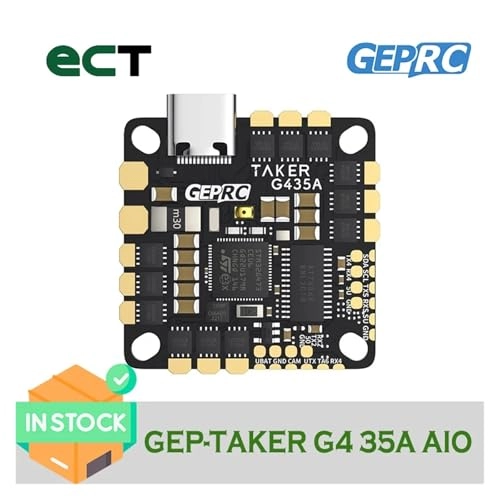

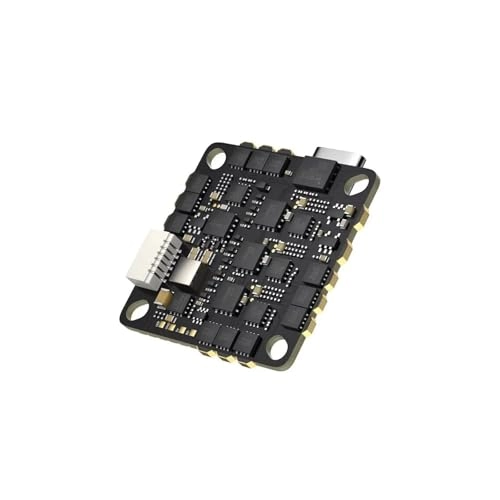

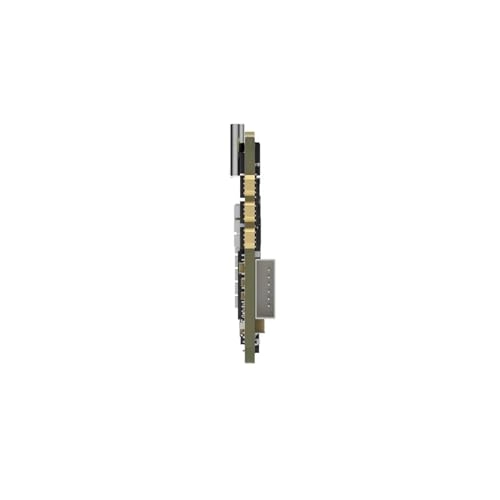

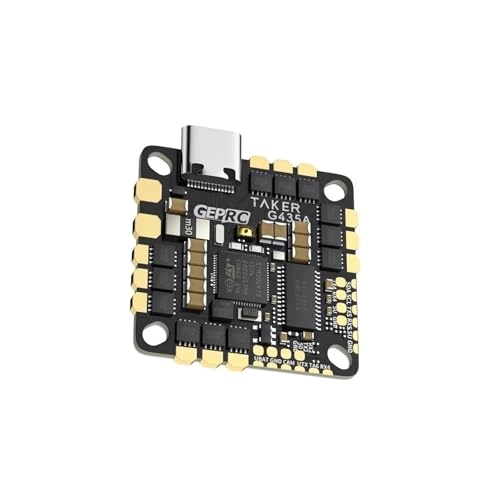

About this product TAKER G4 35A is a newly developed AIO flight control system developed by the GEPRC team. Adopts the G473 main control system and offers greater redundant computing power. In response to market demand, the TYPE-C interface has been updated and the feed pad and motor wire pad have been optimized to simplify welding. It is compatible with two 25.5-26.5mm mounting holes and can be compatible with multiple frames. We are committed to making flight controllers that are smaller, lighter and higher performance. Feature Compact size and compatible mounting holes make installation convenient. Lightweight, only 7.7g. G473 main control, 170MHz operating frequency, high computing power. Improved USB Type-C for added versatility. Specifications Model Name: TAKER G4 35A AIO MCU:STM32G473CEU6 IMU:ICM 42688-P Firmware target: TAKERG4AIO OSD: OSD Betaflight with AT7456Ev. Uart:R1 T1 / R2 T2 / R4 T4 / R5 T5. Buzzer: YES LED: YES USB: USB Type-C BEC Output: 5V to 3A ESC MCU: BB21F16G Continuous current: 35A Burst current: 45A (5) Input voltage: 2~4S (LIPO battery) Supports: Dshot600, Oneshot, Multishot Current meter: YES Lens:J-H-15 Size: board 33.4×34.4mm Installation hole: 25.5-26.5 3.05mm Weight: 7.6 g Includes 1 x GEP-TAKER G4 35A AIO 1 x Cable Set ========== Highly worrying chemicals: None Model Number:GEP-TAKER G4 35A AIO Accessory Type for Drones: Flight Controller
