JINWPXSR VR03 - 800*480px

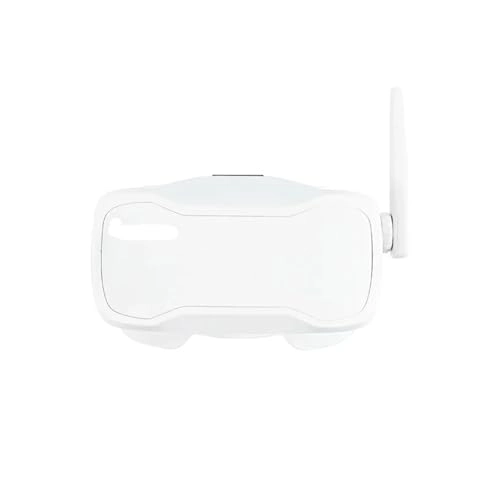

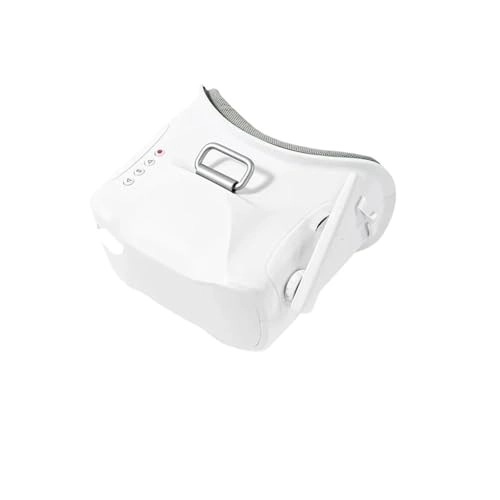

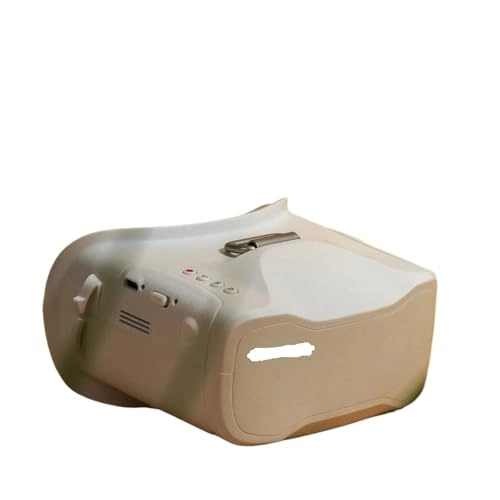

External 5.8G 3dBi antenna included. VR03 glasses are equipped with an omnidirectional antenna, which radiates and receives signals evenly in 360 degree horizontal directions, for stable video transmission and vivid images during flight. With a 4.3-inch high-brightness LCD and 800*480px resolution, VR03 glasses will show you a bright world without distorted and blurred images, specially designed for FPV racing or airplane models. By reserving a Micro SD card slot, riders can record videos and save them to the Micro SD card. In addition, the video can be played through VR03 glasses. Size: 130*145*90mm Weight: 300g (without straps) Video format: NTSC/PAL Channel supported: 48CH Screen size: 4.3 inches. Screen resolution: 800*480 Battery: 3.7V 2000mAh Working time: about 2 hours (normal mode)/1 hour 10 minutes (recording mode) Maximum charging current: 1A Antenna port: RP-SMA (whip antenna included) Charging port: Type-C Card Slot: Micro SD card (not included), support FAT32 system, supports up to 64GB storage space. Class 10 is recommended. Recording Resolution: 480P Recording Format: AVI VR03 FPV glasses are equipped with a frequency scan function and a quick automatic frequency search (only 3 seconds). Pilots can easily find a band and channel with a stronger signal, for a better flight experience. DVR Recording Function VR03 FPV glasses can record FPV moments perfectly. Furthermore, riders can enjoy saved playback via glasses or export videos to Micro SD card. As it turns out, the VR03 FPV goggles offer riders a truly exciting FPV experience. Diagram for VR03 The image below is the VR03 FPV glasses diagram. Note: Please make sure the battery is fully charged before use. The recommended voltage is more than 3.7V (short press the S button to verify). Wear the glasses properly and adjust the headband to a comfortable length. VR03 FPV glasses support 5.8G and 48 channels. Press and hold the search button for 2 seconds to activate the frequency scan, the result will be displayed after 3 seconds. The different colors on the screen indicate the current status of each frequency, as follows: How to record a video VR03 FPV glasses support video recording function: short press the recording button to start or stop video recording. Insert the Micro SD card into the Micro SD card slot (only supports FAT32 system and a maximum storage capacity of 64GB) After short press the record button, a red dot will appear in the upper left corner of the screen and you will hear a ''beep'' sound from the FPV glasses; Wait for 8 seconds: the red dot and the LED recording indicator will start flashing. Simultaneously, a line of red numbers will appear and the timer will start scrolling, indicating the start of recording; Short press the record button. After 2-3 seconds, the red dot in the upper left corner will stop flashing along with the timer, and the red LED recording will also turn off. This indicates that the glasses have stopped recording. Note: After pressing the record button, the recording function will take about 8-10 seconds to activate. Wait patiently. Note: The maximum duration of each recording is 10 minutes. When a recording exceeds 10 minutes, a new recording file will be created automatically. We recommend quadcopters and VTX Cetus Series Meteor Series A01 A02 A03 58G VTX M01, M02, M03 5.8G VTX or most analog VTX on the market. 1 * VR03 FPV Glasses 1 * Headband for the head 1 * Manual It is electric: without batteryMaterial: EVA VR02 FPV Headset: A first-person vision headset designed especially for beginners in the FPV world. With a 4.3-inch high-brightness LCD display and 800x480px resolution, you can enjoy a bright world without distorted or blurred images. It also adopts ergonomic design with a sponge face plate and a three-sided adjustable headband, weighing only 300g, it is very comfortable to wear and enjoy the FPV world. The VR02 FPV goggles are specially designed for those who are approaching the world of FPV drones for the first time. Thanks to the integrated antenna and 3 compact control buttons, the VR02 glasses weigh only 300 g and are easy to use. With 4.3 inch LCD display with HD resolution 800*480px, specially designed for FPV racing or airplane models. Thanks to the frequency scan function and automatic quick frequency search function (quick frequency search in only 2.5 seconds), pilots can easily find a stronger band to get a better flying experience. Thanks to the ergonomic design with a foam sponge face plate and an adjustable headband on three sides, these FPV glasses fit your face and head perfectly. Built-in 5.8 GHz 40 channel receiver with very high sensitivity, especially with RaceBand. Equipped with an advanced automatic search function and display of the working frequency on the screen. Dimensions: 126x143x86.3mm Weight: 300g with 2000mAh 2 hour battery Belt: Three way adjustable belt Screen size: 4.3 inchScreen resolution: 800*480 pxScreen brightness: 300 cd/m2 Viewing angle: 55° Type-C charging Voltage: 3.7V, device operating current of 500mA to 3.7V Current: 500mA Built-in 3.7V/2000mAh high capacity polymer battery, LED lights up while charging. After charging, the LED will turn off. Each full charge lasts about 2 hours of operationBand and channel selection BETAFPV VR02 FPV goggles are equipped with a frequency scan function and fast frequency automatic search function, which will help pilots find a stronger band to get a better flying experience. Frequency scan function can display the occupancy status of each channel in the current space so that pilots can fly with better band and improve flight White current band (RSSI higher in scan result) Riders can also use the quick frequency search function, which allows you to find a stronger band faster and easier. How to use the fast frequency search function? After power on, press and hold the ''S'' button for 1 second to start automatic frequency search. Automatic frequency search process takes 2.5 seconds. After the automatic frequency search is finished, the drone will beep two beeps and switch to the corresponding band of the drone. 1 x VR02 FPV Goggles 1 x adjustable strap. ========== Highly worrying chemical: None It is electric: without battery. Quantity: 1 pcs It is a battery/power supply: N It is a charger/adapter: N Batteries included: No Size: 130*145*90mm Model Number:VR03 For vehicle type: aircraft Tool Supplies: Assembly Category Remote control devices/devices: Other RC Parts & Accessories: Antennas Material: Metal Use: Remote control vehicles and toys Weight: 300g (without straps) Video format: NTSC/PAL Channel supported: 48CH Screen size: 4.3 inches. Screen resolution: 800480 Battery: 3.7V 2000mAh Working time: about 2 hours (normal mode)/1 hour 10 minutes (recording mode) Maximum charging current: 1A Antenna port: RP-SMA (whip antenna included) Charging port: Type-C Card slot: Micro SD card (not included), supports FAT32 system, supports max. 64GB storage - Class 10 is recommended Recording Resolution: 480P Recording Format: AVI
