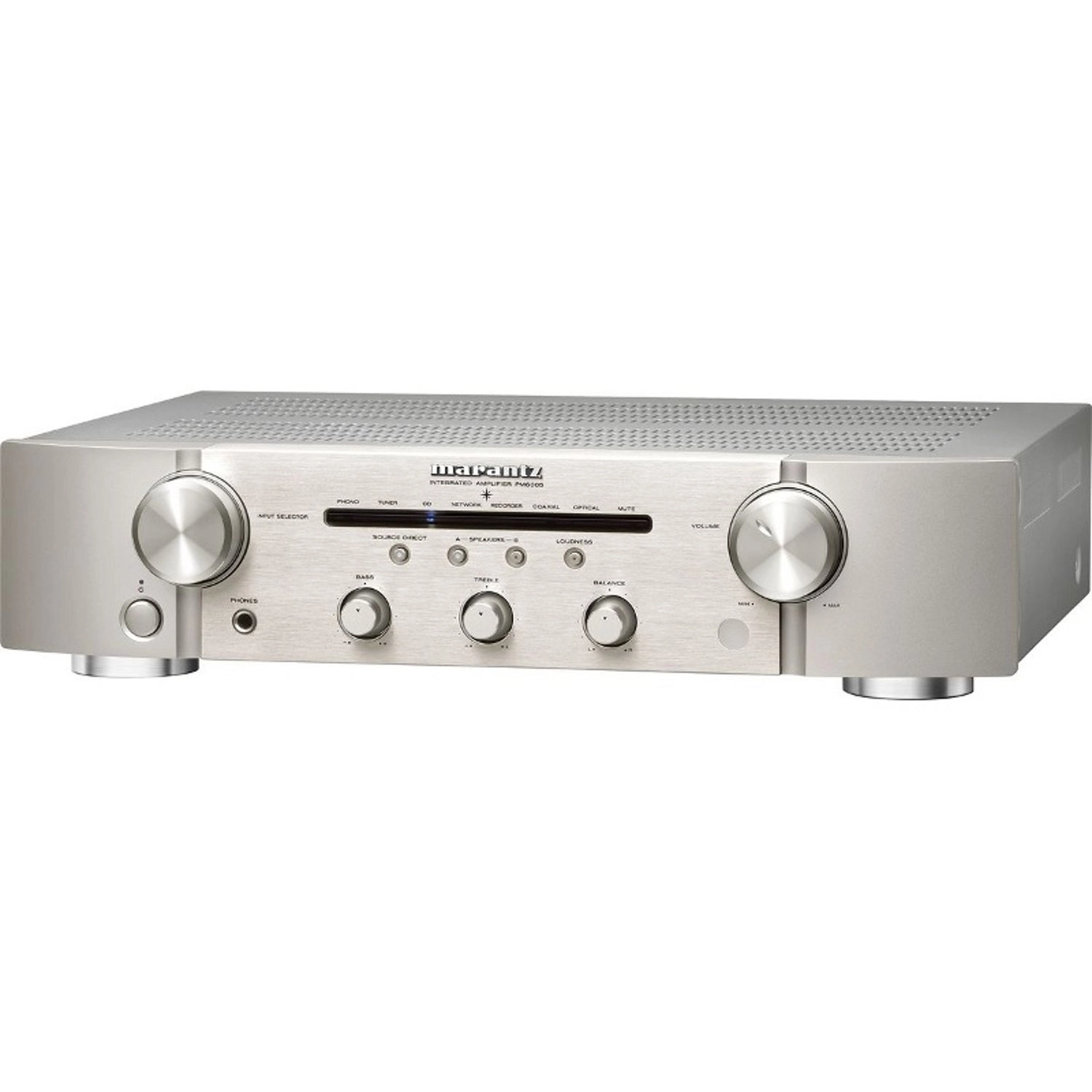

Marantz PM6005N1 - 2CH 60 Watts

Based on our award winning PM6005 integrated amplifier, the PM6005 adds digital audio decoding, via the reference class CS4398 24 bit/192 kHz high current D/A converter, along with our exclusive HDAM (Hyper Dynamic Amplifier Module) technology, which uses precision discrete components instead of conventional op-amp integrated circuits. The high current power supply features a high capacity shielded toroidal power transformer that provides high instantaneous burst current, essential when driving lower impedance speaker loads. The power supply also features large high current storage capacitors, and high current high speed Shottky Barrier Diodes for the cleanest power characteristics. The digital audio circuitry is housed in its own shielded subsection to eliminate interference with the analog audio circuit blocks. Multiple analog inputs include a dedicated phono input for MM turntables, and there are optical and coaxial digital audio inputs. Marantz HDAM TechnologyOur exclusive HDAM technology features precision discrete components that provide wide dynamic range with low distortion, outperforming conventional op-amp integrated circuit chips. HDAM modules are used in the digital audio converter stages as well as the critical analog audio stage.Fully Discrete High Current Output StagesEquipped with multiple high current wide range power transistors, the PM6005 features the ability to handle low impedance speakers, and is rated at 45 watts per channel into 8 ohms and 60 watts per channel into 4 ohms. The output stages feature current feedback (originated by Marantz) instead of voltage feedback, for the lowest distortion and highest stability.High Current Power SupplyFeaturing a high current high capacity shielded toroidal power transformer, the power supply section also employs high current high speed Shottky Barrier Diodes, along with high current storage capacitors that together provide wide dynamic range along with low impedance drive capability.Reference Quality D/A ConversionEquipped with the reference class CS4398 24 bit/192 kHz D/A converter technology, the PM6005 also employs our proprietary HDAM discrete modules in the critical I/V conversion stage. The digital audio section is housed in a shielded compartment to prevent interference with the analog audio circuit blocks.Fully Discrete Headphone AmplifierFor superb sound quality with the widest range of headphone types, the PM6005 features a fully discrete headphone amplifier that is able to handle just about any headphone type, regardless of impedance or sensitivity. The high quality gold plated ¼" headphone jack is compatible with audiophile and studio headphones and adapters.Gold Plated ConnectorsThe audio inputs and outputs, along with the speaker terminals and the coaxial digital input are gold plated for long life and optimum signal transfer integrity. Optical and Coaxial Digital Audio InputsBoth optical and coaxial digital audio inputs are provided, for compatibility with the widest range of digital audio sources.Multiple Inputs Including PhonoIn addition to multiple analog line level inputs, the PM6005 also features a dedicated phono input, for compatibility with moving magnet turntables.
