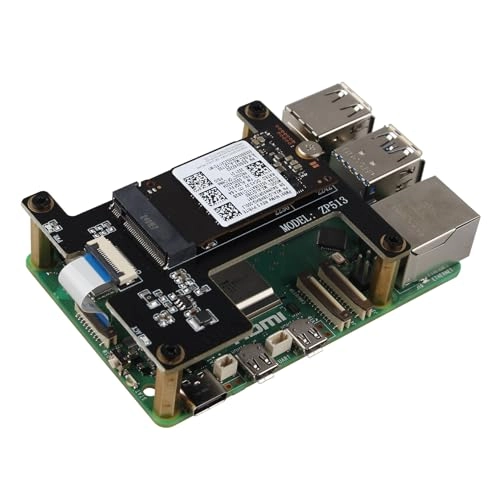

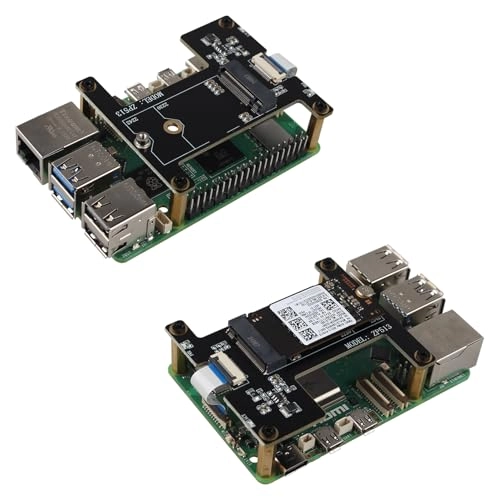

ZDE ZP513 - PCI Express x1 2230/2242

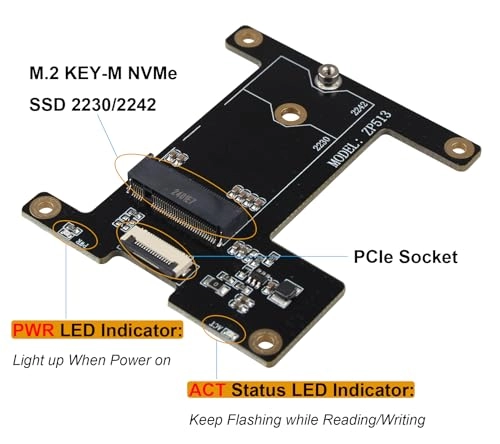

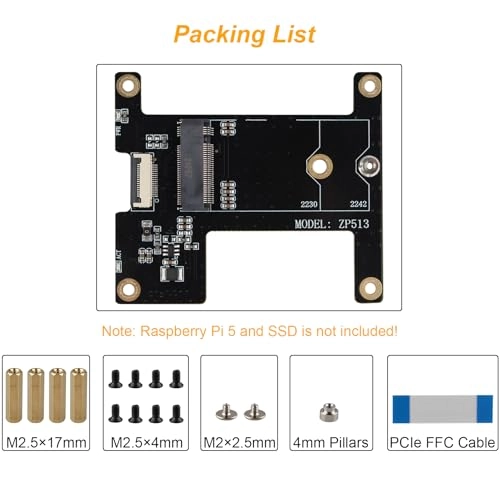

Features: Model: ZP513 ZDE ZP513 M.2 NVMe to PCIe Adapter Board is designed for the latest Raspberry Pi 5, which supports the installation of M.2 KEY-M NVMe SSD in 2230/2242 length. Equipped with PWR LED Indicator and ACT Status LED Indicator, practical design for real-time monitoring of the working status. Supports installation of official active coolers for heat dissipation. How to Power: Power the ZP513 shield directly from the FFC PCIe ribbon. The ZP513 hardware has no limit on NVMe SSD capacity, which depends on the Raspberry Pi OS. We don’t recommend to use NVMe SSD drives which is equipped with a Phison controller due to their proven incompatibility. New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer. Note: Make sure that the FFC cable is fully inserted in right direction. The PCIe Peripheral Board is compatible with M.2 KEY-M NVMe SSDs, not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices. Packing List: 1 x ZP513 PCIe Peripheral Board 1 x PCIe FFC Cable 1 x Screws Pack Accessories Note: Raspberry Pi 5 and SSD is not included.
