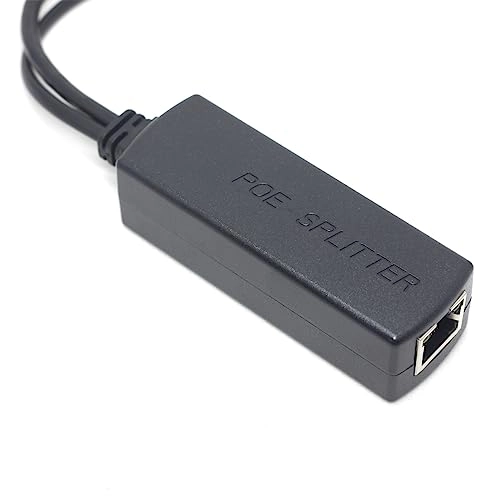

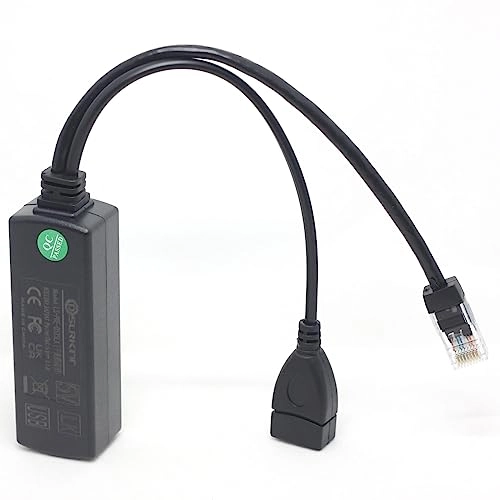

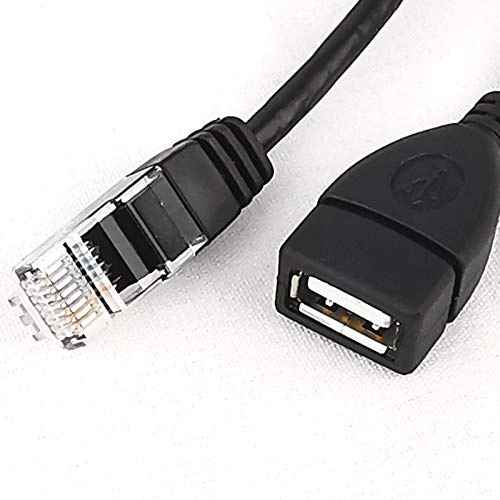

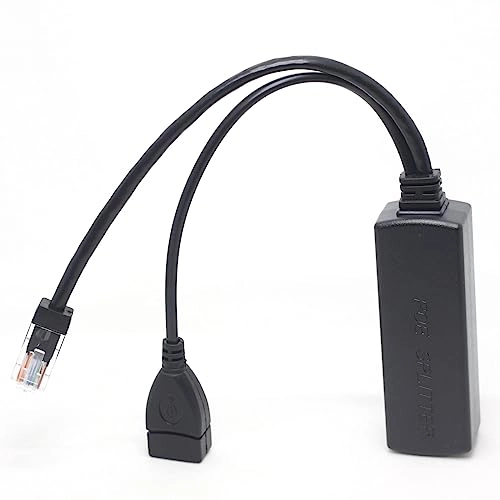

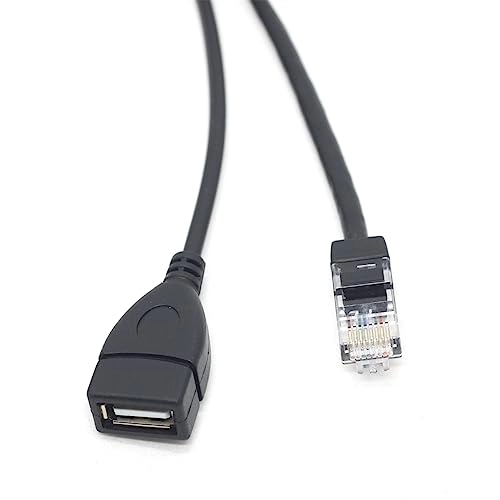

DSLRKIT PoE Splitter - 48V-55V IEEE802.3af/802.3at 10/100/1000Mbps

Specification: Compliant with IEEE802.3af Isolation: 2.5kV Power Input(RJ45 female): DC44~57V Power Output(USB TYPE A Female): DC5.2V 2.4A Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE) Data Output Port: RJ45 Male Power Output Port: USB TYPE A Female Data Transfer Rate: 10/100/1000Mbps Data Pin: RJ45 pin 1,2,3,4,5,6,7,8 Devices will be detected before poe input Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-) Body size: 80 x 27x 22 mm DC cable length£º165mm RJ45 Modular Plug cable length£º155mm Weight : 55g Operation Temperatue:-20¡æ ~ 45¡æ Storage Temperature:-30¡æ ~ 70¡æ RJ45 female INPUT Port: Support the IEEE 802.3af/802.3at the Power over Ethernet PoE Switch Support 48V-55V Unsolicited Power Over Ethernet PoE Switch Support 48V-55V Unsolicited Power Over Ethernet PoE injector Item Included: Gigabit Ethernet 5V2.4A Active PoE Splitter(USB TYPE A Female) x1 Note: Yellow LED(power) will be light up when USB connects to the device. Green LED(data) never light in any circumstances. This splitter allows data to input and output through its RJ45 port, but no indicator on this splitter indicates the status of the data transfer. Only one power indicator shows the working status of the POE. When using 80.3af/802.3at standard PoE switch (or injector) to connect this PoE splitter,and the Power Output Port (USB TYPE A Female) is not loaded (unconnected device), the PoE splitter will enter standby mode. Data Output Port (RJ45 Male) will not work at this moment.
