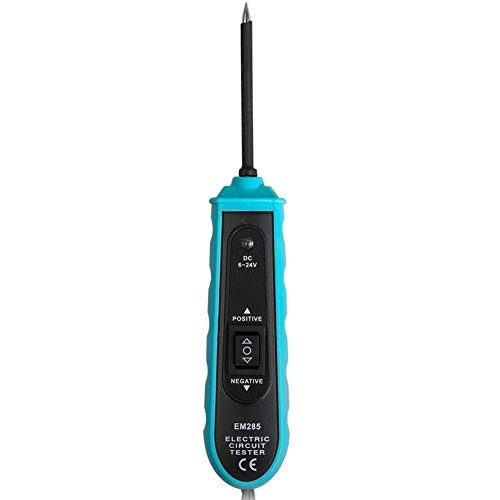

ihreesy Electric Probe Circuit Tester - 8A 6-24V Crocodile Clip

Specification:

Product Parameters:

Operating Voltage: DC 6-24V

Cable length: about 5m

Overload protection: 8A (when it exceeds 8A, will automatically disconnect the power supply.)

Weight: about 340 g

Product Use:

1. Testing Continuity

2. Test voltage polarity

3. Check the continuity of switches, relays, diodes, fuses and circuits

4. Test the polarity of the cable and plug

5. Track and locate short circuits

6. Poor test grounding

Connection method:

Disassemble the cable harness from the unit

The red clip is clipped to the positive terminal of the car battery

Attach the black clip to the negative terminal of the car battery

Instructions:

1. The project issues an alarm, indicating that the circuit breaker has triggered.

2. Once the circuit breaker is on, it automatically resets within 3-5 seconds.

3. After the alarm rings, if this item is still connected to the test object and you continue to press the switch, the circuit breaker will repeat the trigger process and reset automatically.

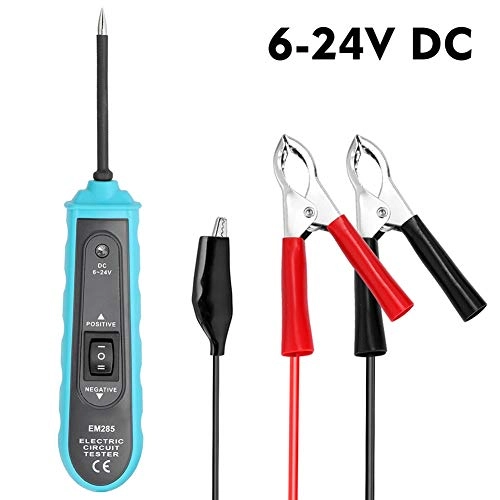

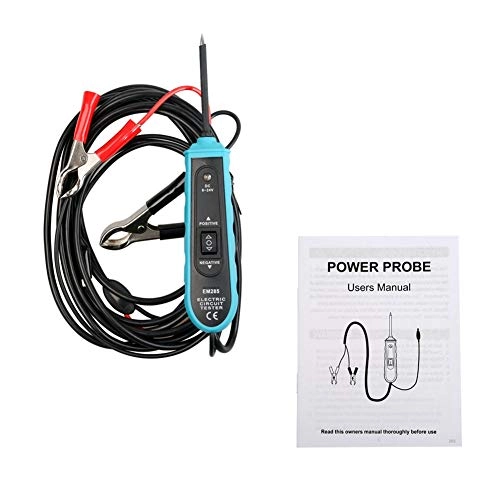

The package includes:

1 x Handle

1 x Host

1 x Crocodile Clip

1x probe

1 x Rear probe
