CAR REAR CAMERA CHOICE, 170 DEGREE FISHEYE WIDE ANGLE FOR EXTRAORDINARY VISION
Product Attributes
Colors: Black
Sizes: 1.13×0.91×0.91 inch
Weight: 4.98 oz
Material: Plastics + Hardware
Packaging:
1* Backup Camera
1* Video Cable (19.68 Ft)
1* DC Power Cord (3.28 Ft)
1* Installation Instructions
4* Screws
Product Manual
A: Specifications Compatible with Automotive Parking Sensors
Operating Voltage: DC12V
Detective Range: Front:0.3~1.0M Back:0.3~2.5M
B: Car Camera Specification
Sensor: CVBS /AHD
Signal System: PAL/NTSC/AHD
Operating Voltage: DC12V or 24V
Current:0.1~0.3A
IP Rating: lP68
C: Specifications Compatible with Car Monitor
Display Size: 4.3"/ 5" /7" /9"/10.1"
Video Formats: CVBS /AHD /IPS
Contrast: 400:1
Power: DC12V/24V
Pixel:480*272/ 800*480/ 1024*768
Installation Method: First use a screwdriver to follow the 4 screws in the package on the bracket in order to make it fixed. Then you can adjust the camera according to your need, after determining the angle, tighten the screws on both sides of the camera can be

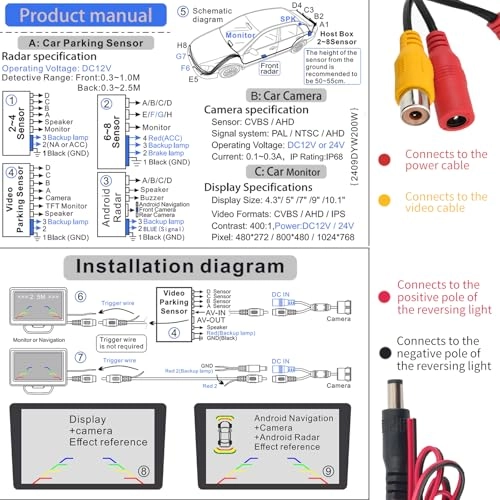

Wiring Method: the red head of the car camera connects to the power cable, the yellow head connects to the video cable, the red wire of the power cable connects to the positive pole of the reversing light, and the black wire connects to the negative pole of the reversing light. The other end of the video cable connects to the monitor screen (Please refer to the detailed installation instructions inside the package for the specific wiring procedure)
Precautions
1. Our products are suitable for screen systems with RCA inputs. Before ordering, please make sure to check the connector type of the screen carefully to avoid mismatch
2. The use of reversing camera requires that the car itself can support AHD function

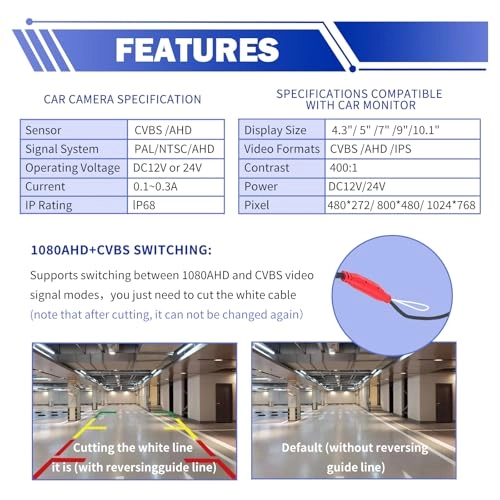

3. 1080pAHD+CVBS switching, the default is 1080pAHD mode when installing, you can cut the white line to switch to CVBS mode, but the switching is one-way switching, irreversible
Product Feature & Functions
1. 1080AHD+CVBS two modes easy to switch, adapt to different scenes
2. Built-in 1080P AHD chip, upgrading the image clarity, making the screen smoother and improving the color saturation
3. IP68 waterproof rating, ultimate protection. Whether it is in the pouring rain, vehicle washing or driving through the waterlogged road, it keeps working normally

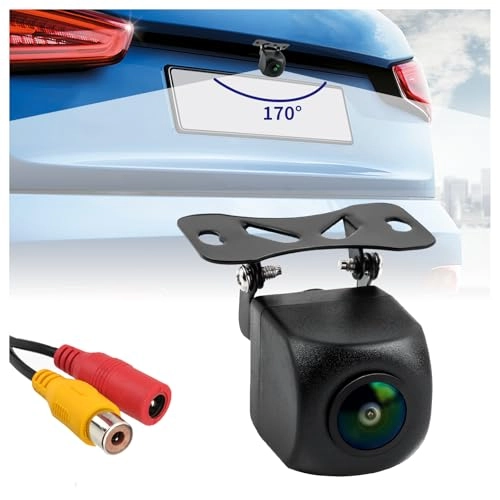

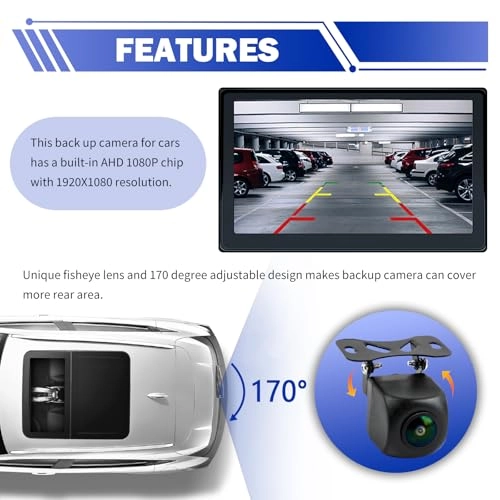

4. 170-degree fisheye wide-angle design, providing you with an unprecedented wide field of view
