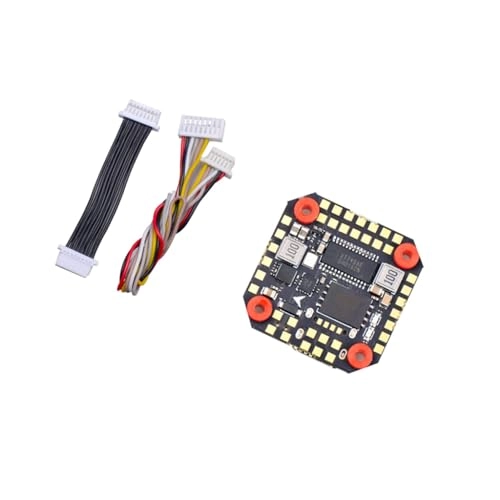

COOL RACING F405 - Baro OSD 16MB 20X20mm 3-6S LIPO

Name: COOL RACING F405 - Baro OSD 16MB 20X20mm 3-6S LIPO
Brand: COOL RACING
SKU: 408962
Availability: InStock

Best offer

AED

157⁸⁸

Key Features

Product colour: Black
Connectivity technology: USB

Specifications

Features

Connectivity technology

USB

Product colour

Black

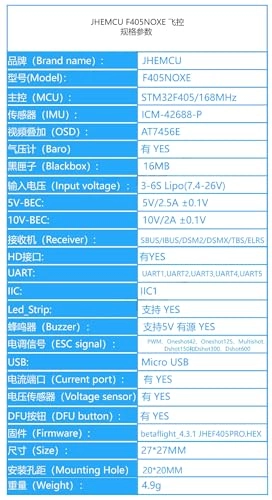

Product Details

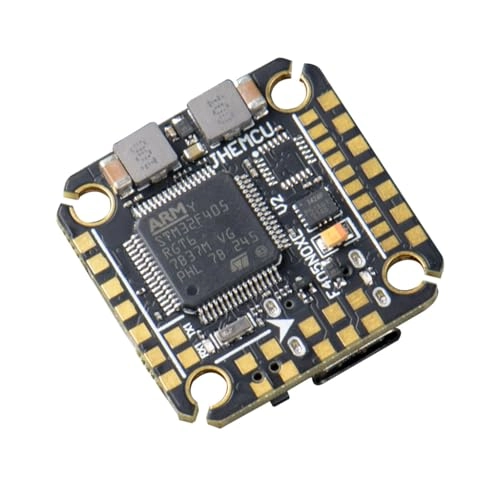

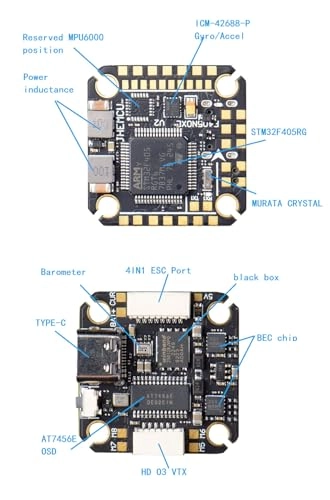

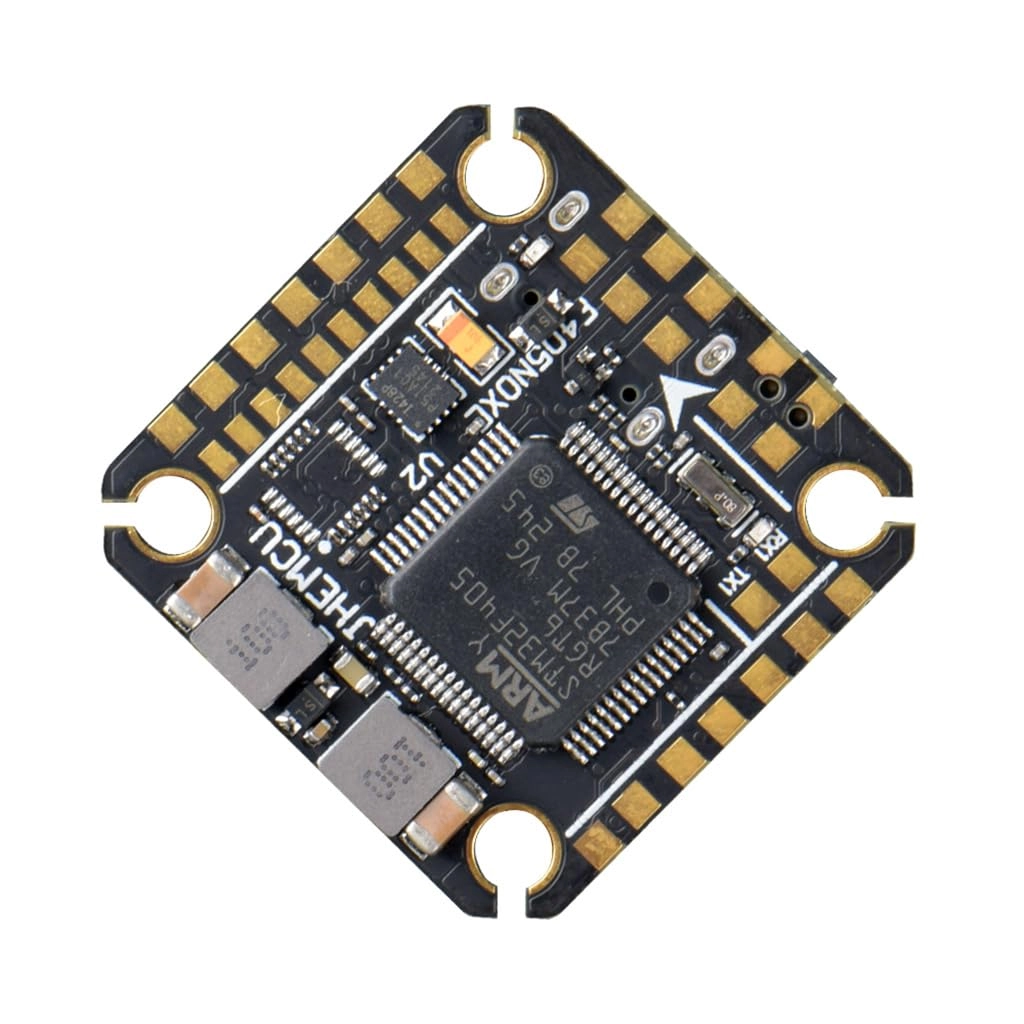

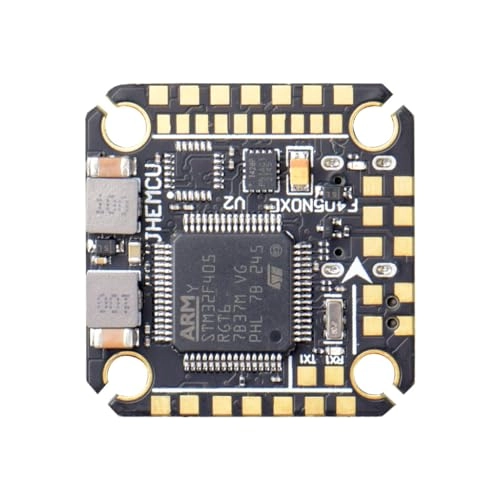

MCU: STM32F405/168MHZ

Inertial measurement device: gyroscope/accelerometer

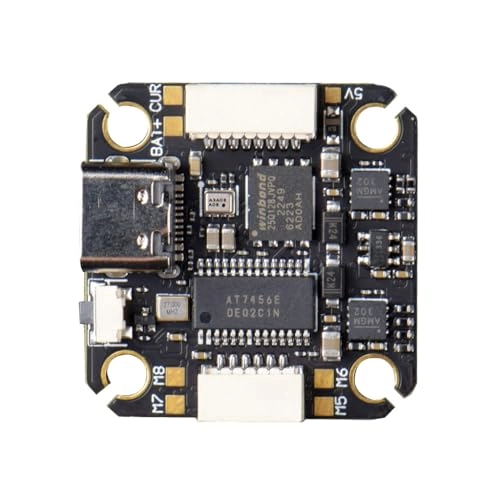

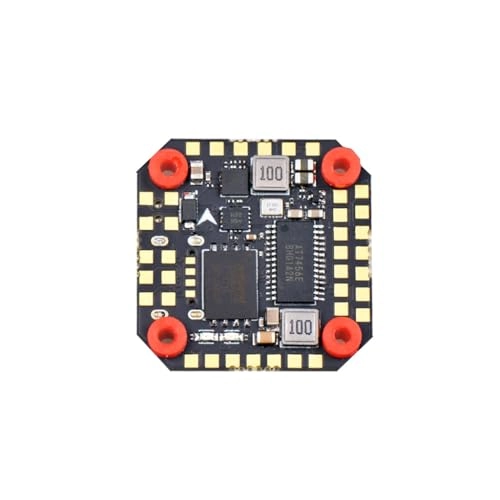

OSD: AT7456E

Baro: YES

Blackbox: 16MB

Input voltage: 3S-6S(11.5V-26V)

5V-BEC: 5V/2.5A ±0.1V

10V-BEC: 10V/2A ±0.1V

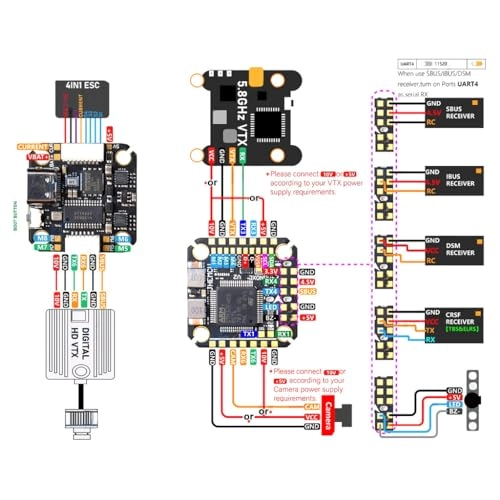

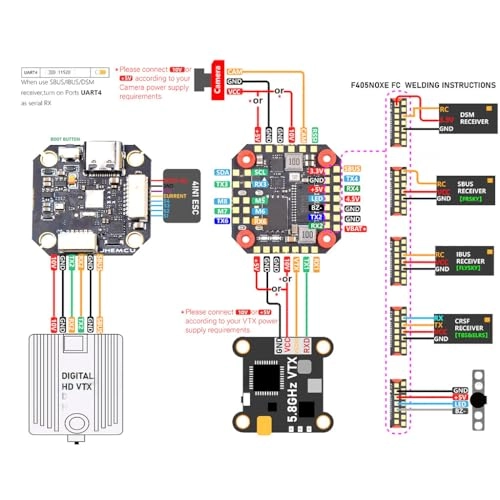

Receiver: ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX

GPS: YES

Compass: YES

HD O3: YES

USART: UART1,UART3,UART4,UART6

IIC: IIC1

Led_Strip: YES

Buzzer: 5V

ESC signal: Dshot150, Dshot300, Dshot600

USB: Micro USB

Current port: YES

Voltage sensor: YES

DFU button: YES

FC Firmware: betaflight_4.4.2 JHEF405PRO.HEX

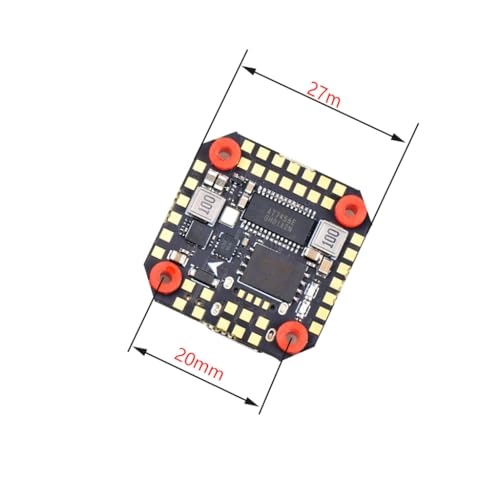

Size: 27*27MM

Mounting Hole: 20*20*3MM

Weight: 4.6g
