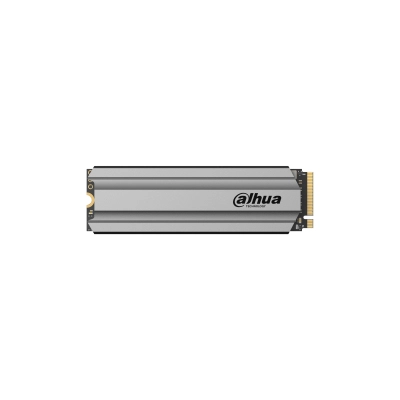

Dahua Technology C900N - 256GB M.2

Key Features

NVMe version: 1.3
Random read (4KB): 90000, 100000IOPS
Random write (4KB): 190000, 280000IOPS
Sequential read speed (ATTO): 2000, 3000MB/s
Sequential write speed (ATTO): 1050, 1450MB/s
Sequential read speed (CDM): 90000, 100000MB/s
Sequential write speed (CDM): 190000, 280000MB/s
Component for: PC
S.M.A.R.T. support: Yes
Power consumption (idle): 0.488, 0.528W
NVMe: Yes
SSD capacity: 256GB
SSD form factor: M.2
Compliance certificates: CE, Federal Communications Commission (FCC), WEEE
TRIM support: Yes

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

1500000 h

S.M.A.R.T. support

✓

Power consumption (idle)

0.49W, 0.53W

Component for

Sequential write speed (CDM)

190000MB/s, 280000MB/s

Sequential read speed (CDM)

90000MB/s, 100000MB/s

Sequential write speed (ATTO)

1050MB/s, 1450MB/s

Sequential read speed (ATTO)

2000MB/s, 3000MB/s

Packaging data

Package height

15.50 mm

Package depth

105.50 mm

Package width

140.50 mm

Weight & dimensions

Weight

8 g

Height

2.25mm, 4.80mm

Depth

22mm, 23mm

Width

80 mm

Power

Power consumption (max)

2.60W, 2.93W, 2.95W

Performance

Maximum operating temperature

70 °C

Minimum operating temperature

0 °C

Other features

TBW rating

128

Storage

NVMe

✓

SSD capacity

256 GB

SSD form factor

M.2

Ports & interfaces

Interface

PCI Express 3.0

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Operating relative humidity (H-H)

5 - 95 %

Operating vibration

0.50G, 3.08G

Operating shock

1500 G

Technical details

Sustainability compliance

✓

Compliance certificates

CE, Federal Communications Commission (FCC), WEEE

Memory

ECC

✓

Security

TRIM support

✓

Hardware encryption

✗

Solid state drive

Memory type

3D TLC

Read speed

2000MB/s, 3000MB/s

Write speed

1050MB/s, 1450MB/s

Random write (4KB)

190000IOPS, 280000IOPS

Random read (4KB)

90000IOPS, 100000IOPS

NVMe version

1.3

Product Details

As a new generation of NVMe SSD product launched by Dahua, C900 PLUS series adopts high-quality 3D NAND wafer level chip and advanced Shasta+ IG5216 controller from InnoGrit. It supports Gen3.0 and 4-channel high-speed broadband transmission with read speed up to 3400 MB/s and write speed up to 3,000 MB/s. The SSD is equipped with aluminum cooling plate to reduce temperature, and ensure stability and efficiency of the controller and flash memory chip for a longer time in high-load read and write. As a consumer-grade NVMe M.2 SSD, the product is designed for techsavvy high-end users, gamers and professionals, and is applicable to high workloads such as video production/editing and simulation.

Files

User manual

mmo_106183493_1669109839_3158_1258.pdf

PDF• 9.6 MB

Product Brochure

mmo_106183493_1669109850_5597_1538.pdf

PDF• 420.4 KB
