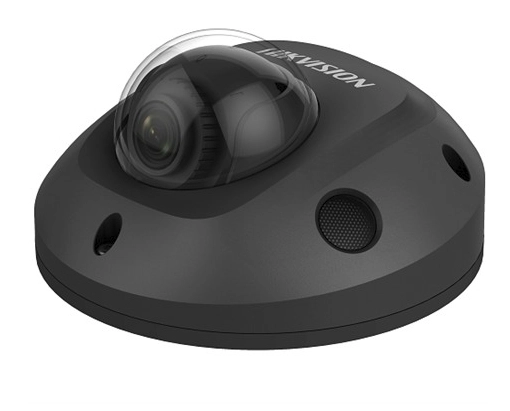

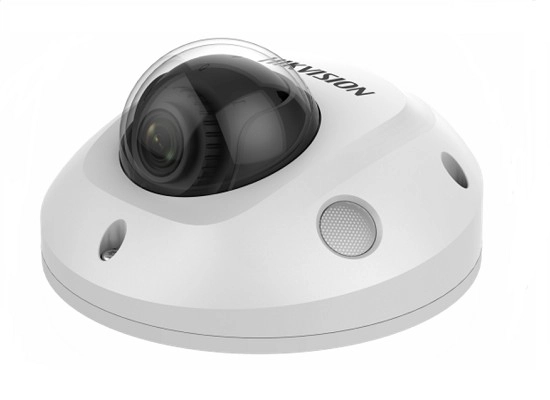

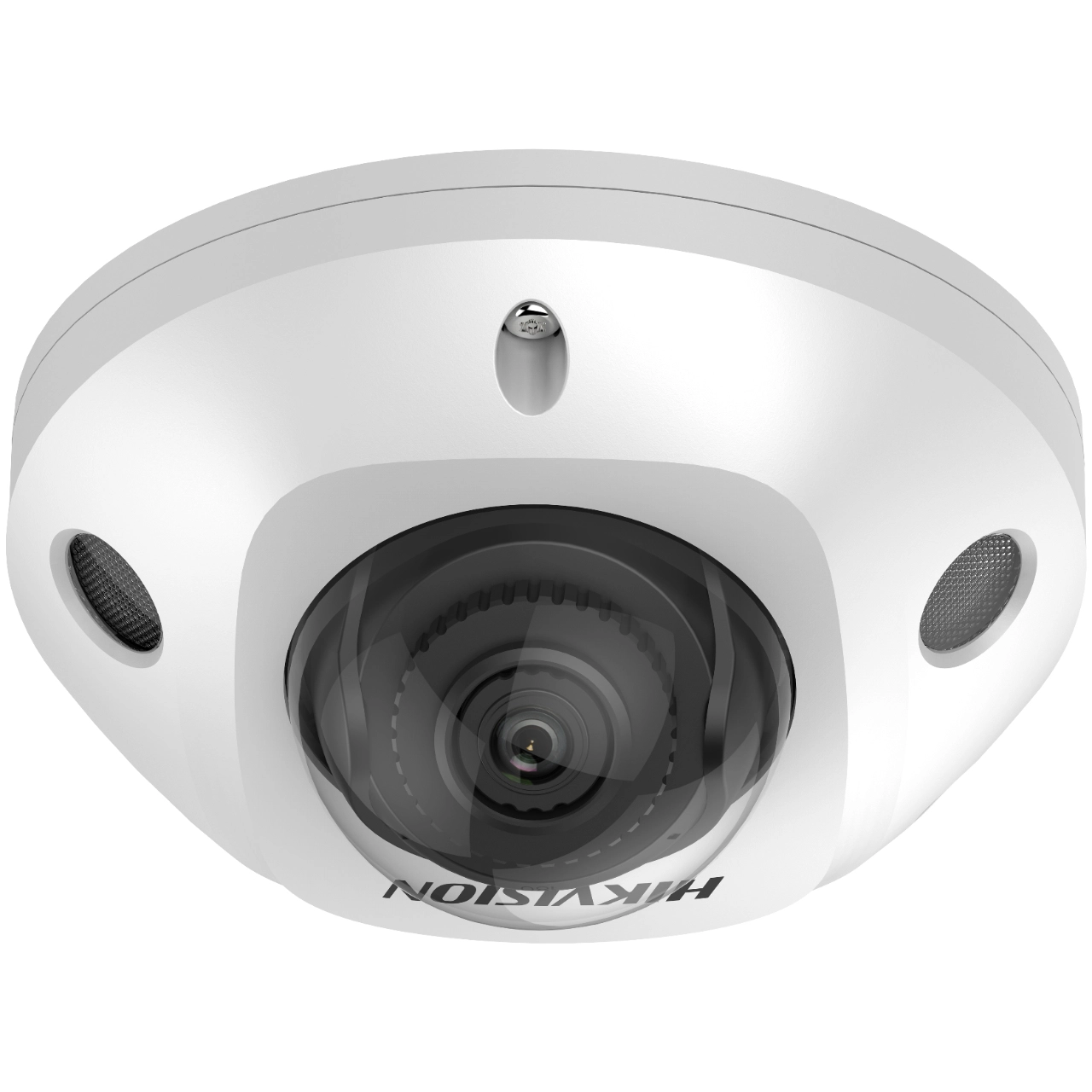

Hikvision DS-2CD2523G2-I(S)

Name: Hikvision DS-2CD2523G2-I(S)
Brand: Hikvision
SKU: 357397
Availability: InStock

Best offer

AED

299⁰⁰

Key Features

Camera tilt control: Yes
Detect distance: 44m
Observe distance: 17m
Recognize distance: 8m
Camera pan control: Yes
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 62°°
Lens viewing angle, diagonal: 135°°
Power consumption (Power over Ethernet (PoE)): 6.5W
Identify distance: 4m
Infrared (IR) cut-off filter: Yes
User access level: User
Digital watermark: Yes
Type: IP security camera
Active tampering alarm: Yes

Specifications

Features

Web browser

✓

Voice codecs

G.711, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2

Weatherproof

✓

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Card reader integrated

✓

Quality of Service (QoS) support

✓

Maximum memory card size

128 GB

Password protection

✓

Video motion detection

✓

Security algorithms

EAP-LEAP, EAP-MD5, EAP-TLS, WPA, WPA2

Languages support

Multi

Number of languages

Connectivity technology

Wired, Wired & Wireless

Product colour

White

Video streaming

✓

Digital watermark

✓

Type

IP security camera

Active tampering alarm

✓

Mirror

✓

Sample rate

48 kHz

Frequency band

2.412 - 2.4835 GHz

Supported graphics resolutions

1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 320 x 240, 352 x 240, 640 x 360, 640 x 480 (VGA)

Detect distance

44 m

Packaging data

Package weight

615 g

Package height

108 mm

Package depth

134 mm

Package width

134 mm

Weight & dimensions

Weight

400 g

Height

56.40 mm

Diameter

110 mm

Management features

Web-based management

✓

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Power

Power consumption (max)

8.50 W

DC output current

0.70 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

6.50 W

Performance

Camera pan control

✓

Other features

I/O ports

1x line in, 1x line out

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP66

IK code

IK08

Housing material

Aluminium, Metal, Plastic

Placement supported

Indoor/Outdoor, Outdoor

Reset button

✓

Mounting type

Ceiling/Wall

Form factor

Dome

Network

Client interoperability

Hik-Central, Hik-Connect, iVMS-4200

Wi-Fi

✗

Bluetooth

✗

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

802.1X, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, TCP/IP, UDP, UPnP

Cabling technology

10/100Base-T(X)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Interface

RJ-45, RJ-45/WLAN

Ethernet LAN (RJ-45) ports

Microphone in

✓

Alarm input channels

Alarm output channels

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Certification

CB: IEC 62368-1: 2014+A11, CE-EMC: EN 55032: 2015, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, EN 50130-4: 2011 +A1: 2014, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, FCC: 47 CFR Part 15, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, Reach: Regulation (EC) No 1907/2006, Subpart B, WEEE: 2012/19/EU

Anti-flicker

✓

Lens system

Lens mount interface

M12

Maximum aperture number

Number of lenses

Fixed focal length

2.80 mm

Identify distance

4 m

Noise reduction technology

3D noise reduction

Recognize distance

8 m

Observe distance

17 m

Video

Video compression formats

H.264, H.265, M-JPEG

Frame rate

30 fps

Image quality adjustment

Brightness, Contrast, Mirror, Saturation, Sharpness

Privacy masking

✓

Security

IP address filtering

✓

Privacy protection

✓

Heartbeat

✓

Automatic Network Replenishment (ANR)

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Back Light Compensation (BLC)

✓

Camera shutter speed

1/3 - 1/100000 s

3D NR (Noise Reduction)

✓

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Region of Interest (ROI) encoding

✓

Total megapixels

2 MP

Number of cameras

Bit rate

32 Kbps - 8 Mbps

Analog signal format system

PAL

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

114°

Progressive scan

✓

Full HD

✓

Wide Dynamic Range (WDR)

✓

Intelligent Video Surveillance (IVS) system features

Crossing line, Face detection, Intrusion, Region entrance detection, Region exiting detection

Alarm input/output

✓

Highlight Compensation (HLC)

✓

Lens viewing angle, diagonal

135°

Lens viewing angle, vertical

62°

Camera tilt control

✓

Amplifier

Sample rates

8 - 48 kHz

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

1920 x 1080 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

Night vision distance

10 m

Infra-red wavelength

850 nm

Product Details

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Files

User manual

mmo_100694471_1664225923_3561_15761.pdf

PDF• 11.3 MB

Quick Start Guide

mmo_100694471_1664225940_2092_15761.pdf

PDF• 2.6 MB

Product Brochure

mmo_100694471_1664225949_8229_18407.pdf

PDF• 1.2 MB
