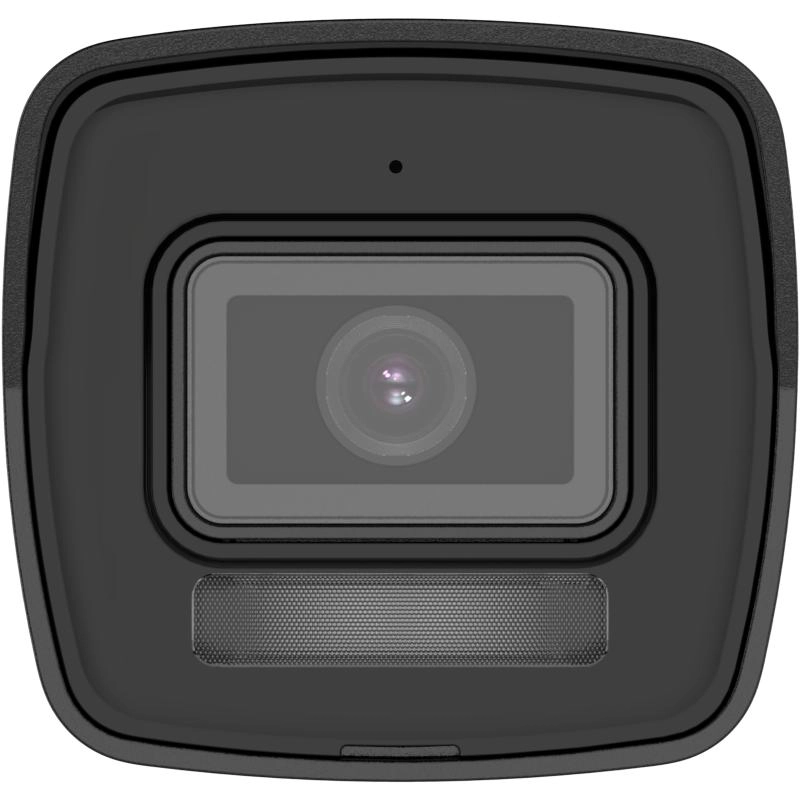

Hikvision DS-2CD1043G2-LIU

Name: Hikvision DS-2CD1043G2-LIU
Brand: Hikvision
SKU: 357182
Availability: InStock

Best offer

AED

160⁰⁰

AED

169⁰⁰

-5%

Key Features

Detect distance: 53m
Observe distance: 21m
Recognize distance: 10m
Noise reduction technology: 3D noise reduction
Lens viewing angle, vertical: 57°°
Lens viewing angle, diagonal: 123°°
Power consumption (Power over Ethernet (PoE)): 6.5W
Identify distance: 5m
Infrared (IR) cut-off filter: Yes
User access level: User
Type: IP security camera
Mirror: Yes
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 640 x 360, 640 x 480 (VGA)
DC output voltage: 12
Angle of rotation: 360°

Specifications

Features

Number of sensors

Built-in microphone

✓

Audio formats supported

AAC-LC, G.711 A-law, G.711 μ-law, G.722, G.722.1, G.726, MP2L2, PCM

Card reader integrated

✓

Maximum memory card size

512 GB

Password protection

✓

Video motion detection

✓

Number of languages

Connectivity technology

Wired

Product colour

White

Type

IP security camera

Mirror

✓

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 640 x 360, 640 x 480 (VGA)

Detect distance

53 m

Packaging data

Package weight

250 g

Package height

75 mm

Package depth

75 mm

Package width

150 mm

Weight & dimensions

Weight

175 g

Height

57.90 mm

Depth

138.80 mm

Width

60.90 mm

Diameter

110 mm

Power

Power consumption (max)

5 W

DC output current

0.40 A

Power source type

PoE

DC output voltage

Power consumption (Power over Ethernet (PoE))

6.50 W

Other features

Noise reduction

✓

Ergonomics

Angle of rotation

360 °

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in HDD

✗

Design

International Protection (IP) code

IP67

Housing material

Metal, Plastic

Placement supported

Indoor/Outdoor

Mounting type

Ceiling, Ceiling/Wall

Form factor

Bullet

Built-in light

✓

Packaging content

Mounting kit

✓

Manual

✓

Network

Networking standards

IEEE 802.3af

Supported network protocols

DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv6, NTP, QoS, RTP, RTSP, SMTP, TCP/IP, UDP

Ethernet interface type

Fast Ethernet

Ethernet LAN

✓

Live view

✓

Number of simultaneous live view channels

6 channels

User access level

User

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Technical details

Sustainability compliance

✓

Compliance certificates

BIS, CB, CE, REACH, RoHS, UL, WEEE

Lens system

Maximum aperture number

Number of lenses

Fixed focal length

2.80 mm

Identify distance

5 m

Noise reduction technology

3D noise reduction

Recognize distance

10 m

Observe distance

21 m

Video

Video compression formats

H.264, H.265

Video formats supported

H.264, H.265

Frame rate

25 fps

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Video recording

✓

Privacy masking

✓

Supported video modes

1080p, 1440p, 360p, 480p, 720p

Security

Audit log

✓

Heartbeat

✓

Password reset via email

✓

Digest authentication

✓

HTTPS encryption

✓

Camera

Day/night mode

✓

Back Light Compensation (BLC)

✓

Number of Privacy masking areas

Camera shutter speed

1/100000 - 1/3 s

Total megapixels

4 MP

Number of cameras

Signal-to-Noise Ratio (SNR)

52 dB

Sensor type

CMOS

Lens viewing angle, horizontal

104°

Progressive scan

✓

White balance

Auto

Wide Dynamic Range (WDR)

✓

Highlight Compensation (HLC)

✓

Digital Wide Dynamic Range (DWDR)

✓

Lens viewing angle, diagonal

123°

Lens viewing angle, vertical

57°

Amplifier

Sample rates

8 - 16 kHz

Pan-tilt unit

Tilt angle range

0 - 75 °

Pan range

0 - 360 °

Image sensor

Maximum resolution

2560 x 1440 pixels

Dynamic range

120 dB

Minimum illumination

0 lx

Infrared (IR) cut-off filter

✓

Night vision

✓

LED type

IR/White

Night vision distance

40 m

Infra-red wavelength

850 nm
