Allware

TP-Link OC200

Best offer
AED
24177
AED
26000
-7%

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: No, Yes
  • Maximum data transfer rate (2.4 GHz): 300, 450Mbit/s
  • Maximum data transfer rate (5 GHz): 867, 1300Mbit/s
  • Automatic channel scanning: Yes
  • Antenna features: Integrated antenna
  • Number of SSID supported: 8, 16
  • Antenna direction type: Omni-directional
  • PoE adapter included: Yes
  • Service Set Identifier (SSID) features: Multiple SSIDs
  • Antenna gain level (max): 4, 5dBi
  • Maximum data transfer rate: 300, 1200, 1317, 1750Mbit/s
  • Access Control List (ACL): Yes
  • Placement: Ceiling, Wall
  • Band steering: Yes

Specifications

Features

Compatible operating systems
Microsoft Windows XP, Windows 10, Windows 7, Windows 8, Windows Vista
Antennas quantity
2
Quality of Service (QoS) support
Security algorithms
128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MIMO
Virtual LAN features
SSID-based VLAN assignment
Product colour
Grey, White
Antenna gain level (max)
4dBi, 5dBi
Maximum data transfer rate
300Mbit/s, 1200Mbit/s, 1317Mbit/s, 1750Mbit/s
Access Control List (ACL)
Placement
Ceiling, Wall
Band steering
Frequency band
2.4, 2.4 - 2.4835 GHz, 5 GHz
Maximum data transfer rate (5 GHz)
867Mbit/s, 1300Mbit/s
Maximum data transfer rate (2.4 GHz)
300Mbit/s, 450Mbit/s
5 GHz
2.4 GHz

Packaging data

Package type
Box

Weight & dimensions

Height
29.50mm, 37mm, 143mm
Depth
19.70mm, 172.30mm, 182mm
Width
86mm, 189.40mm, 206mm

Management features

Web-based management
Syslog
Automatic channel scanning

Power

AC input voltage
24 V, 48 V
Power consumption (typical)
2.80W, 9W, 12.30W, 12.60W
Input current
1.5 A
Power consumption (max)
25.50 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE

Performance

Transmitting power
21dBmW, 27dBmW
Wi-Fi roaming
Airtime Fairness (ATF)

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)

Design

Reset button
LED indicators
Yes
Cable lock slot
Antenna direction type
Omni-directional

Computer system

Antenna type
Internal

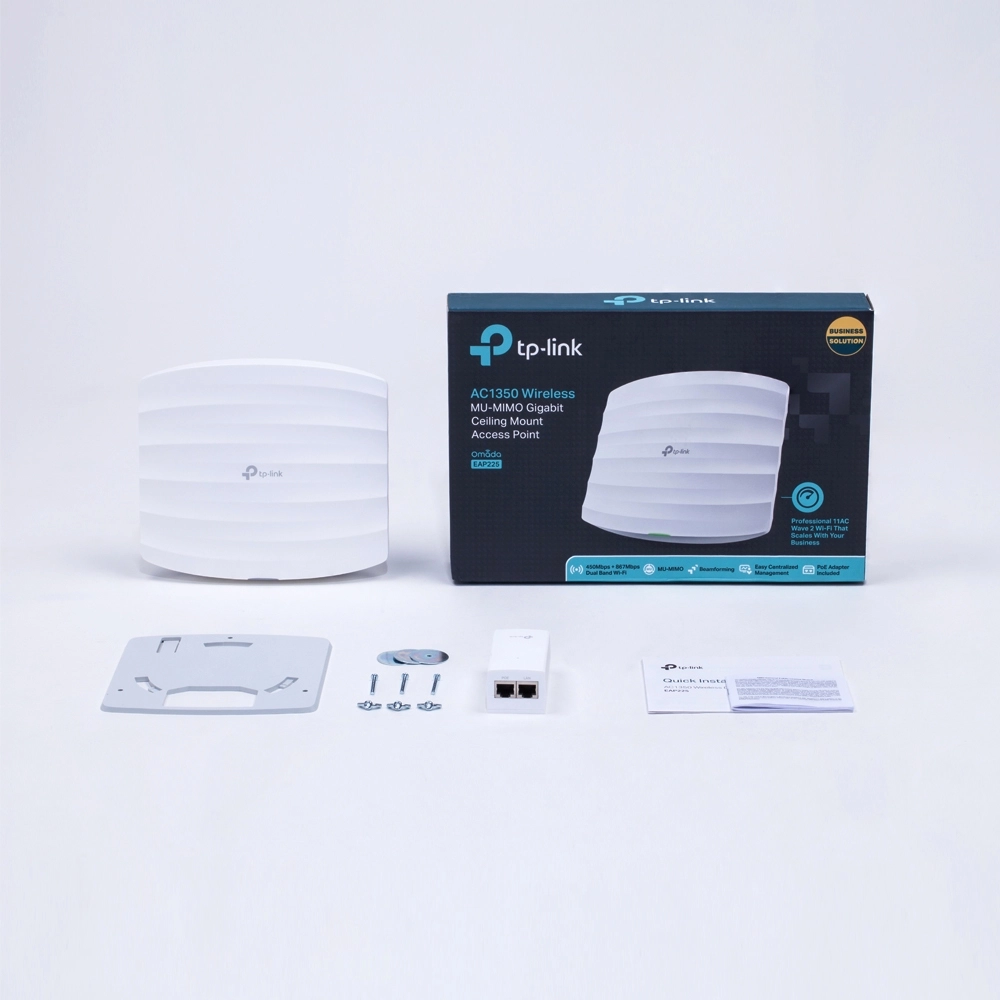

Packaging content

Quick start guide
Mounting kit
Cables included
AC
AC adapter included
PoE adapter included

Network

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Management protocols
SNMP
VLAN support
Cabling technology
10/100/1000Base-T(X), 10/100Base-T(X)
Rate limiting
Ethernet LAN data rates
10, 100
Wireless isolation
MIMO type
Multi User MIMO
Automatic channel selection

Ports & interfaces

DC-in jack
Ethernet LAN (RJ-45) ports
1, 2, 3

Operational conditions

Operating temperature (T-T)
[object Object],[object Object]
Operating relative humidity (H-H)
[object Object],[object Object]
Storage relative humidity (H-H)
5 - 90 %

Technical details

Certification
CE, FCC, FCC CE RoHS, RoHS

Security

MAC address filtering
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
8, 16

Antenna

Antenna features
Integrated antenna

Receiver

Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Product Details

Complete In Room Wi-Fi Coverage An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network. Effortless Deployment and Scalability With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go. Installation Made Easy Upgrade Ethernet wall jacks to high-performance Wi-Fi access points. The EAPs can be fitted to existing EU or US wall junction boxes, making installation quick and non-disruptive. Three Ethernet Jacks, One PoE Outlet More than just a wireless access point, EAP225-Wall acts as a switch and provides three standard Ethernet jacks together with a Power over Ethernet outlet, capable of powering wired devices such as IP phones, IP cameras, intercoms and more. Perfectly Formed The EAP225-Wall blends seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness. Gigabit Wi-Fi Speeds with MU-MIMO Technology EAP225-Wall delivers combined dual-band speeds of up to 1200Mbps. Armed with the latest 802.11ac Wave 2 MU-MIMO technology, it can exchange data with multiple clients at the same time to allow more devices to connect without any slowdown to the network. Free Cloud Centralized Management - Anytime, Anywhere Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself. Easy Management with the Omada App Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. Meet Our New Hero Product! The OC200 Omada Cloud Controller is dedicated to provide centralized management for the whole Omada network.
