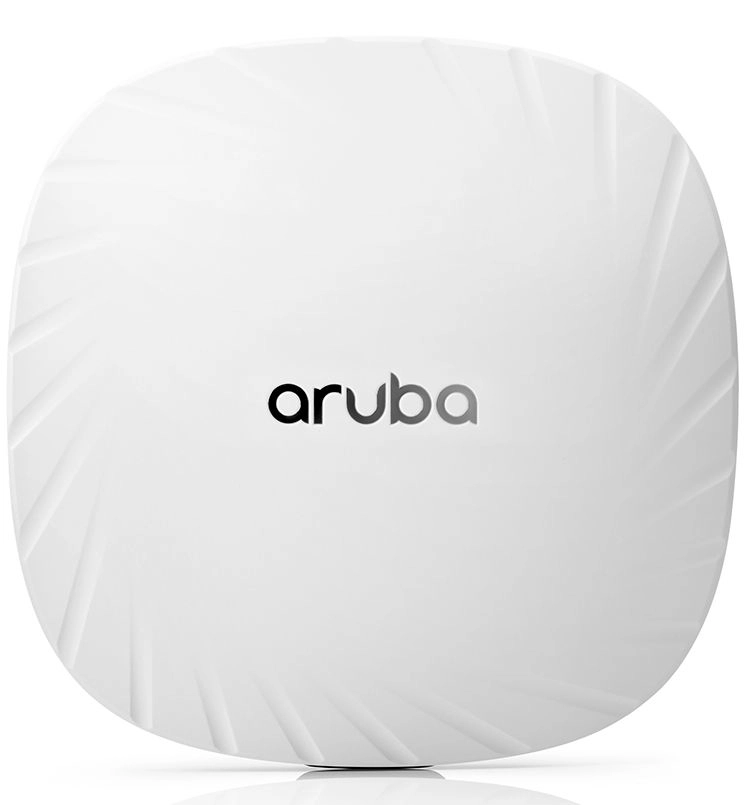

HPE AP-505H

Best offer
AED
1 61075

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • 6 GHz: No
  • Maximum data transfer rate (2.4 GHz): 287, 574Mbit/s
  • Maximum data transfer rate (5 GHz): 1200Mbit/s
  • Antenna features: Integrated antenna
  • Antenna direction type: Omni-directional, Semi-directional
  • Antenna gain level (max): 5.4dBi
  • Maximum data transfer rate: 1487, 1774Mbit/s
  • Placement: Ceiling, Table, Wall
  • Antenna connector type: RP-SMA
  • Antenna type: Internal
  • Auto MDI/MDI-X: Yes
  • MIMO type: Multi User MIMO
  • Ethernet LAN data rates: 10, 100, 1000Mbit/s
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Antennas quantity
2
Trusted Platform Module (TPM)
✓
Security algorithms
WPA, WPA2, WPA3
Bluetooth version
5.0
MIMO
✓
Product colour
White
Antenna gain level (max)
5.40 dBi
Maximum data transfer rate
1487Mbit/s, 1774Mbit/s
Placement
Ceiling, Table, Wall
Antenna connector type
RP-SMA
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Maximum data transfer rate (2.4 GHz)
287Mbit/s, 574Mbit/s
5 GHz
✓
6 GHz
✗
2.4 GHz
✓

Packaging data

Package weight
645 g
Package height
63 mm
Package depth
183 mm
Package width
193 mm

Weight & dimensions

Weight
360g, 500g
Height
37mm, 150mm
Depth
47mm, 161mm
Width
86mm, 160mm

Power

Power consumption (max)
16.50W, 50W
Power over Ethernet (PoE)
✓

Other features

Cable lock slot type
Kensington

Design

Cable lock slot
✓
Antenna direction type
Omni-directional, Semi-directional

Computer system

Antenna type
Internal

Network

Bluetooth
✓
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Auto MDI/MDI-X
✓
MIMO type
Multi User MIMO
Ethernet LAN data rates
10, 100, 1000

Ports & interfaces

USB connector type
USB Type-A
Ethernet LAN (RJ-45) ports
1, 4, 5
USB 2.0 ports quantity
1

Operational conditions

Operating temperature (T-T)
[object Object],[object Object]
Operating relative humidity (H-H)
5 - 93 %
Storage relative humidity (H-H)
5 - 93 %

Technical details

Certification
None
Spread spectrum method
DSSS, OFDM, OFDMA
Compliance certificates
Low Voltage Directive (LVD)

Antenna

Antenna features
Integrated antenna

Logistics data

Harmonized System (HS) code
85176990

Radar

Modulation
1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK

Product Details

HPE Aruba Networking 500H Series Unified Hospitality Access Points delivers cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.5 Gbps maximum combined speed, Zero Touch Provisioning, and wired ports, the 500H Series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H Series is Wi-Fi CERTIFIED™ and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500H Series includes a limited lifetime warranty. What is new supporting point: The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security. Cost-effective Wi-Fi 6 hospitality access points provide up to 1.5 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices. Zero Touch Provisioning that provides ease of implementation in branch offices and remote sites, without on-site technical expertise. You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support. Dynamic Segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across all networks, enhancing user and device security. The AP provides IoT-ready Bluetooth 5 and Zigbee support.
Wi-Fi 6 Performance for Hotels, Dorms, and Remote Offices

Wi-Fi 6 Performance for Hotels, Dorms, and Remote Offices

HPE Aruba Networking 500H Series Unified Hospitality Access Points deliver a maximum combined data rate of 1.5 Gbps with 2 spatial streams to meet the needs of low and medium density environments. The AP provides Wi-Fi CERTIFIED™ with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives the best radio signal.

Flexible Deployment and Unified Management

Flexible Deployment and Unified Management

The HPE Aruba Networking 500H Series Unified Hospitality Access Points can be installed on a wall for hotel or residence hall environments or installed with optional desktop stand for tabletop deployment. The AP manages with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard. The AP-503H model has three 1 Gbps Ethernet ports (1 x 1 Gbps uplink, 2 x 1 Gbps downlink). The AP-505H model has five Ethernet ports (1 x 2.5 Gbps uplink, 4 x 1 Gbps downlink), supports PoE out on two ports, and includes a USB port. Product bundles for remote desktop use include access point, desk mount, power adapter, and power cord (US and EU only). Zero Touch Provisioning provides ease of implementation in branch offices and remote sites, without on-site technical expertise.

Ready for IoT

Ready for IoT

The HPE Aruba Networking 500H Series Unified Hospitality Access Points support <sup>[1]</sup> Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio. The AP-505H model also has an integrated USB port to support a range of IoT devices. The AP simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors. HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Simple and Secure Access

Simple and Secure Access

The HPE Aruba Networking 500H Series Unified Hospitality Access Points offer enhanced security with Dynamic Segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs and subnets by dynamically assigning policies and keeping traffic protected and separated. It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF). WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity. Trusted Platform Module (TPM) secures credentials, keys, and boot code.

Files

Guide

mmo_130716746_1751666856_5575_3500312.pdf

PDF• 337.7 KB

Data Sheet

mmo_130716746_1752741525_937_1263712.pdf

PDF• 1.1 MB

Customer Reference

mmo_130716746_1752741526_0915_1263712.pdf

PDF• 289.2 KB

Quickspecs

mmo_130716746_1753960769_1006_25109.pdf

PDF• 1.1 MB

Aruba 500H Series Hospitality Access Points

mmo_79062435_1595573735_3892_3013.pdf

PDF• 867.8 KB

QuickSpecs

mmo_79062435_1595575339_8458_27747.pdf

PDF• 278.5 KB

Aruba 500 Series Campus Access Points

mmo_75738382_1572259974_1472_22310.pdf

PDF• 842.6 KB
