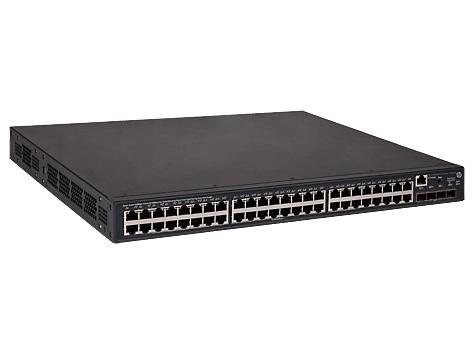

HPE 48G 4SFP+ PoE 370w 48-ports

Best offer
AED
2 86477

Key Features

  • Switch layer: L2, L3
  • Physical stacking (units): 8
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Throughput: 77.3Mpps
  • MLD entries: 1024
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
  • Latency (10-100 Mbps): 7µs
  • Latency (1 Gbps): 1.9µs
  • Latency (10 Gbps): 1.8µs
  • Gigabit Ethernet (copper) ports quantity: 48
  • Port mirroring: Yes
  • USB Type-A ports quantity: 1
  • Power over Ethernet plus (PoE+) ports quantity: 48
  • Half duplex: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Internal memory
8192 MB
Processor frequency
1016 MHz
Cloud-managed
✓
MIB support
Y
Quality of Service (QoS) support
✓
Noise level
54.60 dB
Rack mounting
✓
Stackable
✗
Product colour
Grey
Packet buffer memory
12.38 MB
Wall mountable
✓
SFP+ module slots quantity
4
Switching capacity
104 Gbit/s
Full duplex
✓
MAC address table
8192 entries
Access Control List (ACL)
✓
Airflow direction
Side-to-side airflow
Authentication type
RADIUS, TACACS+
Auto-sensing
✓
Jumbo frames support
✓
Multicast support
✓
Switch layer
L2, L3

Weight & dimensions

Weight
5000 g
Height
44 mm
Depth
305 mm
Width
442 mm

Management features

Web-based management
✓

Power

AC input voltage
100 - 240 V
Power consumption (typical)
54.80 W
AC input frequency
50 - 60 Hz
Input current
10 A
Power consumption (max)
480 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
370 W
Number of power supply units
1
Power source
AC

Performance

Physical stacking (units)
8

Wireless LAN features

IGMP snooping
✓

Design

Form factor
1U

Computer system

Processor model
ARM Cortex-A9
Built-in processor
✓

Packaging content

Power supply included
✓

Network

Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Supported network protocols
HTTPS
Management protocols
SNMPv1, SNMPv2c, SNMPv3
VLAN support
✓
Number of VLANs
4094
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Rate limiting
✓
Auto-negotiation
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Transmission distance (max)
10 km
10G support
✗
Link aggregation
✓
Flow control support
✓
Half duplex
✓
Port mirroring
✓

Ports & interfaces

SFP module slots quantity
4
Console port
RJ-45, RJ-45/USB Type-C, USB
USB Type-A ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
48
Gigabit Ethernet (copper) ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48

Operational conditions

Operating altitude (imperial)
0 - 3000 m
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
15 - 95 %
Non-operating altitude
0 - 4600 m
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
15 - 90 %
Heat dissipation
1671 BTU/h

Technical details

Switch type
Managed

Memory

Flash memory
16384 MB

Protocols

Routing protocols
OSPFv2, OSPFv3, RIP-2
IPv6 FIB entries
128
IPv4 FIB entries
256
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)

Data transmission

Latency (10 Gbps)
1.80 µs
Latency (1 Gbps)
1.90 µs
Latency (10-100 Mbps)
7 µs
Throughput
77.30 Mpps

Security

SSH/SSL support
✓
Broadcast storm control
✓
Authentication
MAC-based authentication, Web-based authentication
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Solid state drive

Memory type
DDR3-SDRAM

Multicast features

MLD entries
1024

Product Details

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs. Features Automation and Analytics - The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health. - Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs. - The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues. - Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features. - The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network. Performance and Power - The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications. - Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers. - Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port. - Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency. Smarter Segmentation - The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures. - Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike. - Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.

Files

Product Brochure

mmo_101360476_1693903487_4337_11040.pdf

PDF• 658.7 KB

QuickSpecs

mmo_94376912_1637144312_6623_37911.pdf

PDF• 544.9 KB

User manual

mmo_94593648_1656856489_8183_11156.pdf

PDF• 1.6 MB
