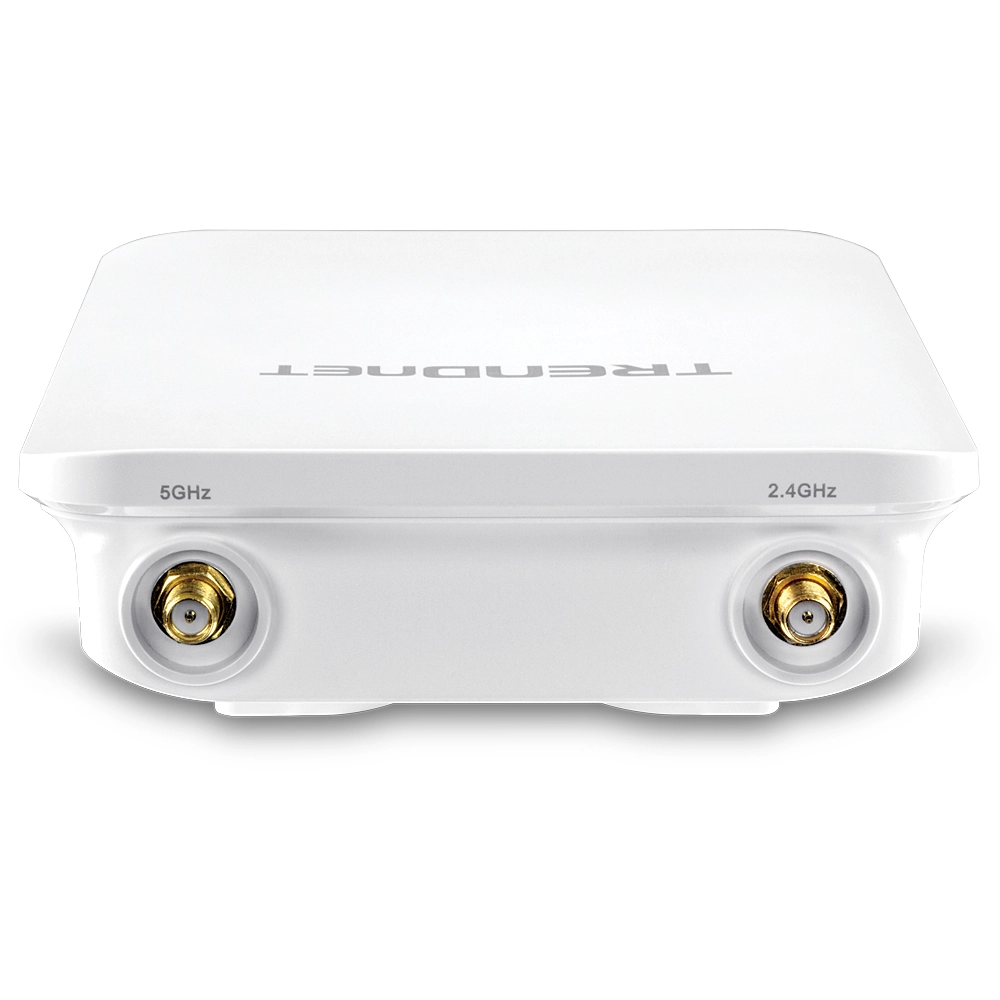

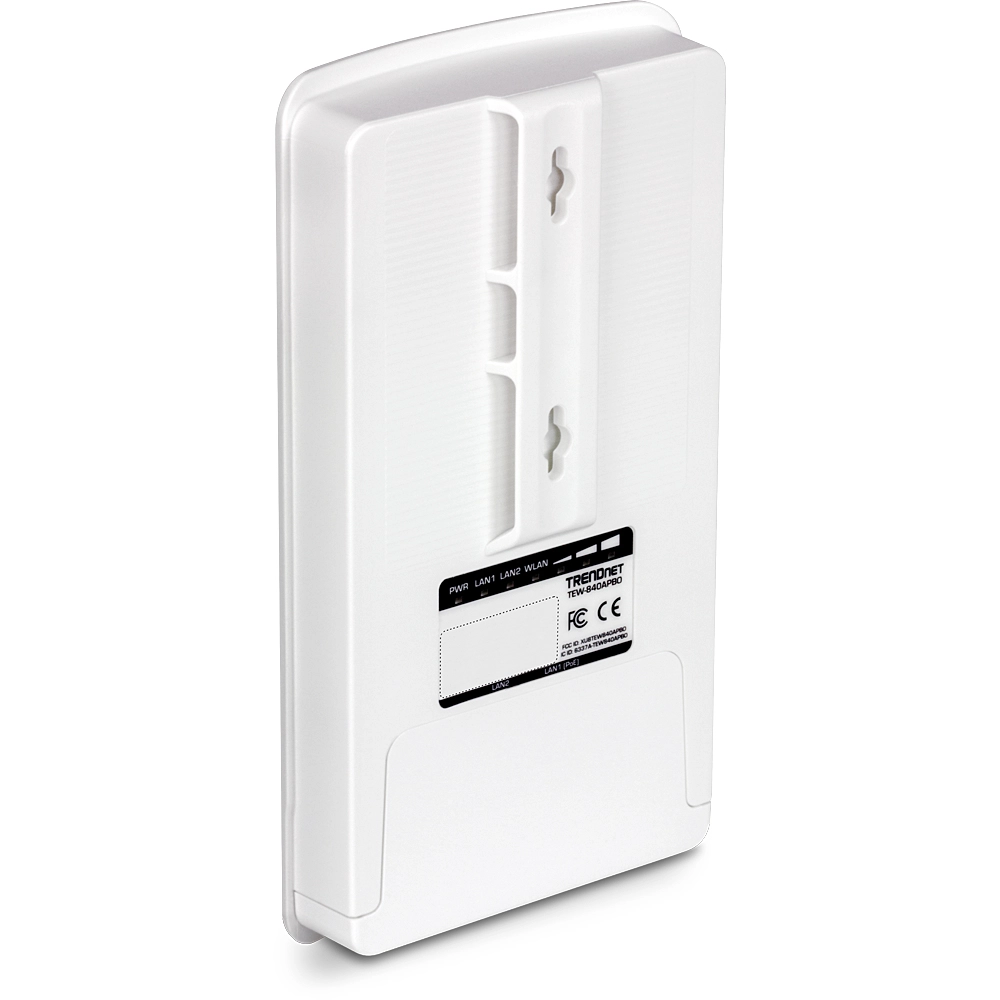

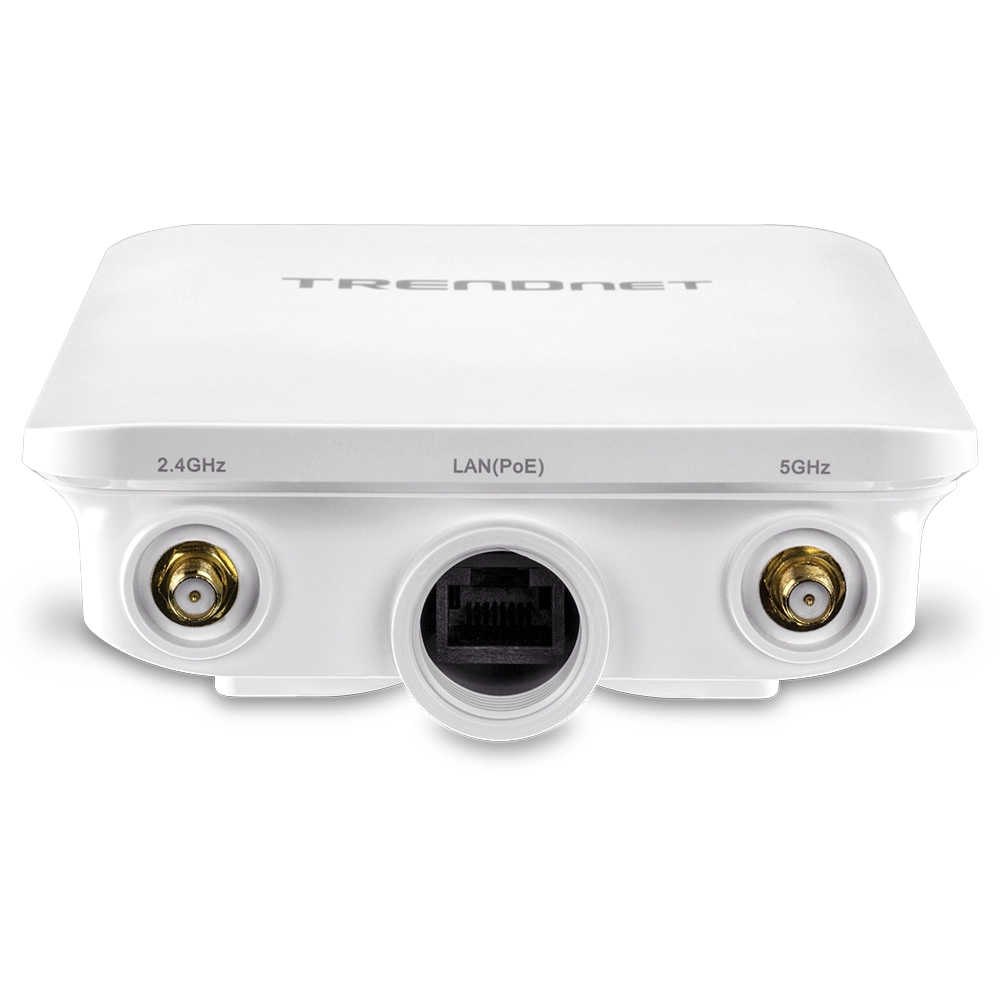

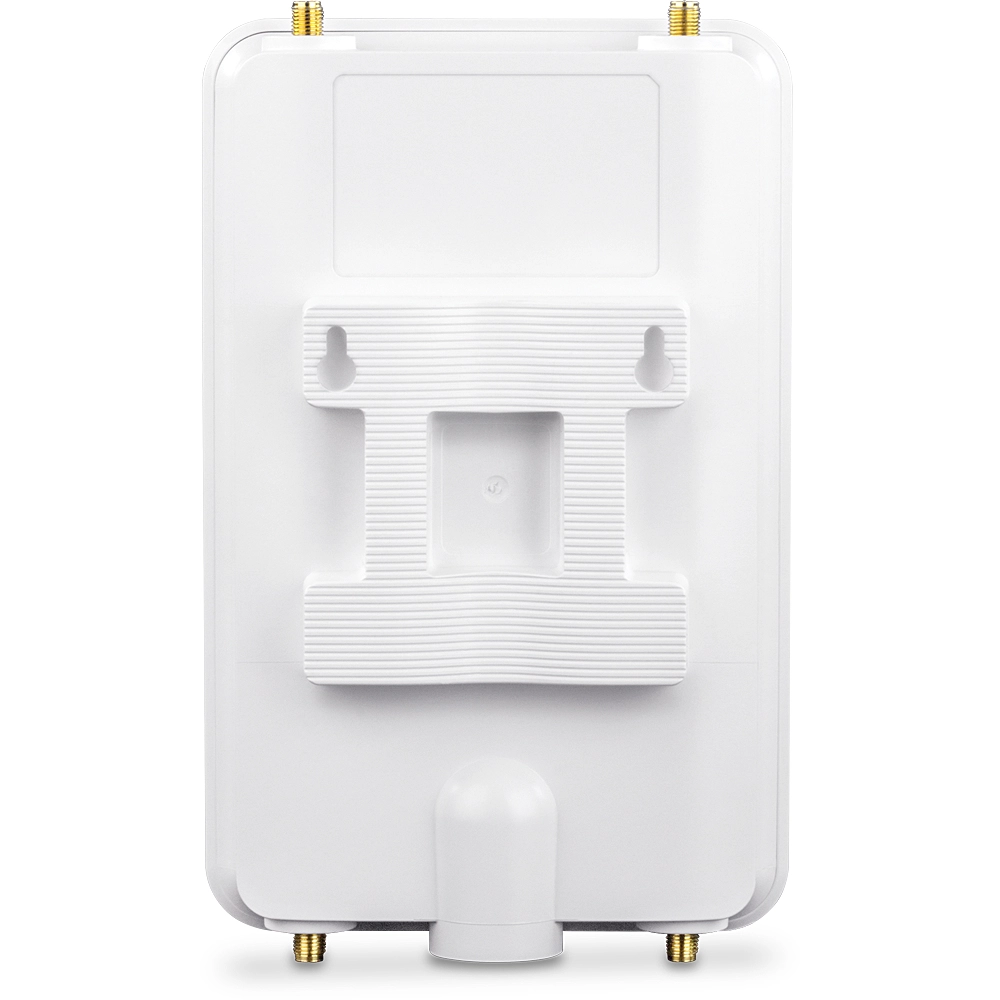

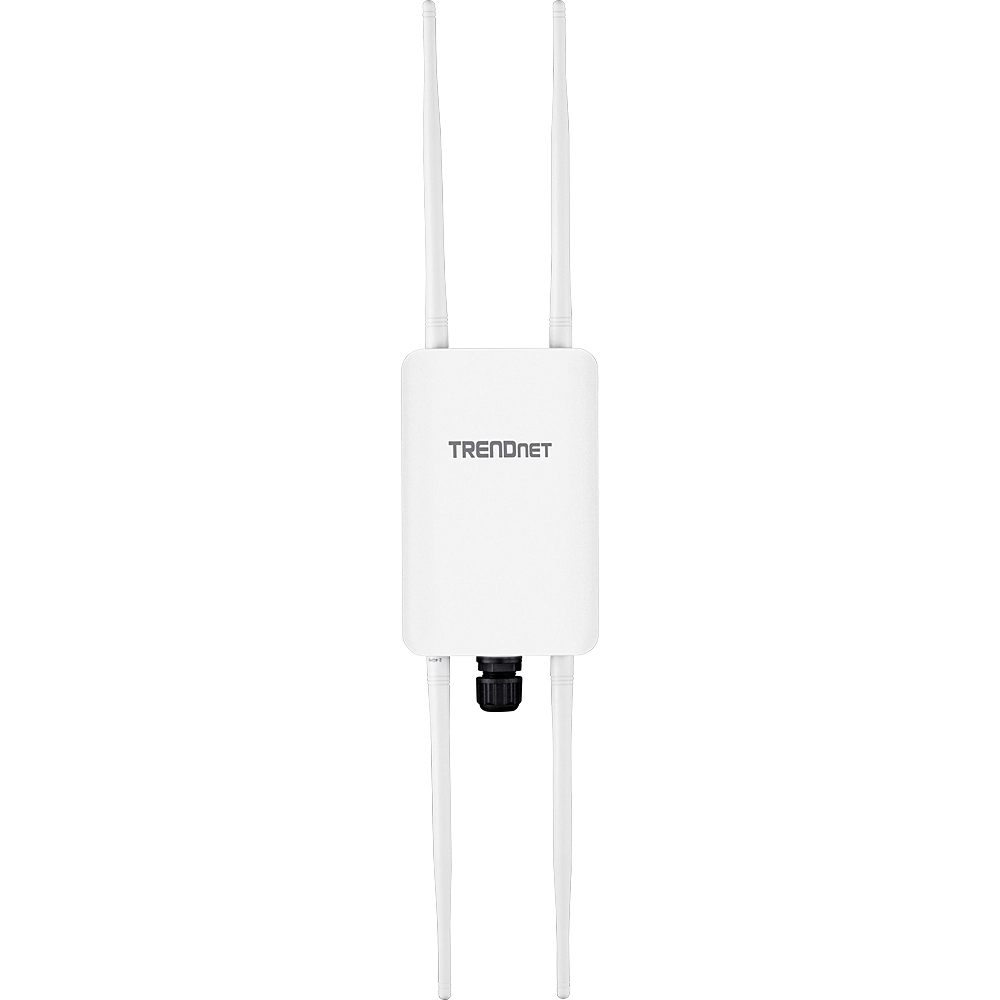

Trendnet TEW-841APBO

Best offer
AED
1 09456

Key Features

  • 2.4 GHz: No
  • 5 GHz: Yes
  • Antenna features: Integrated antenna
  • Number of SSID supported: 8
  • Antenna direction type: Omni-directional
  • Antenna gain level (max): 5dBi
  • Maximum data transfer rate: 1300Mbit/s
  • Channels quantity: 165channels
  • Placement: Wall
  • Number of connectors: 4
  • Frequency band: 2.4GHz: 2.412-2.462, 5.150 – 5.250, 5.725 – 5.850, 5.745-5.825, 5GHz: 5.180-5.240GHz
  • Antenna connector type: RP-SMA
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Internal: No
  • Antenna type: External
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Quality of Service (QoS) support
✓
Security algorithms
AES, SNMP, SNMPv3, SSID, WDS, WEP, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA2-RADIUS
MIMO
✓
Product colour
Black
Antenna gain level (max)
5 dBi
Maximum data transfer rate
1300 Mbit/s
Channels quantity
165 channels
Placement
Wall
Number of connectors
4
Frequency band
2.4GHz: 2.412-2.462, 5.150 – 5.250, 5.725 – 5.850, 5.745-5.825, 5GHz: 5.180-5.240
Antenna connector type
RP-SMA
5 GHz
✓
2.4 GHz
✗

Weight & dimensions

Weight
268 g
Height
38 mm
Depth
100 mm
Width
111 mm

Management features

Web-based management
✓
Firmware upgradeable
✓

Power

Output current
0.60 A
AC input voltage
100 - 240 V
Output voltage
24 V
AC input frequency
50 - 60 Hz
Input current
0.4 A
Power consumption (max)
9.50 W
Power over Ethernet (PoE)
✓

Performance

Transmitting power
23 dBmW

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)
✓

Design

International Protection (IP) code
IP56
Reset button
✓
LED indicators
Yes
Internal
✗
Antenna direction type
Omni-directional

Computer system

Antenna type
External

Packaging content

Quick start guide
✓
Mounting kit
✓

Network

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
VLAN support
✓
MIMO type
Multi User MIMO
Ethernet LAN data rates
10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Operational conditions

Operating relative humidity (H-H)
0 - 90 %

Technical details

Certification
FCC, FCC IC

Security

MAC address filtering
✓
Auto Wireless Distribution System (WDS)
✓
Number of SSID supported
8

Antenna

Antenna features
Integrated antenna

Receiver

Receiver sensitivity
802.11a: -72 dBm @ 54 Mbps 802.11b: -87 dBm @ 11 Mbps 802.11g: -72 dBm @ 54 Mbps 802.11n (2.4 GHz): -67 dBm @ 400 Mbps 802.11n (5 GHz): -61 dBm @ 400 Mbps 802.11ac: -58 dBm @ 867 Mbps

Radar

Modulation
16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, PSK, QPSK

Product Details

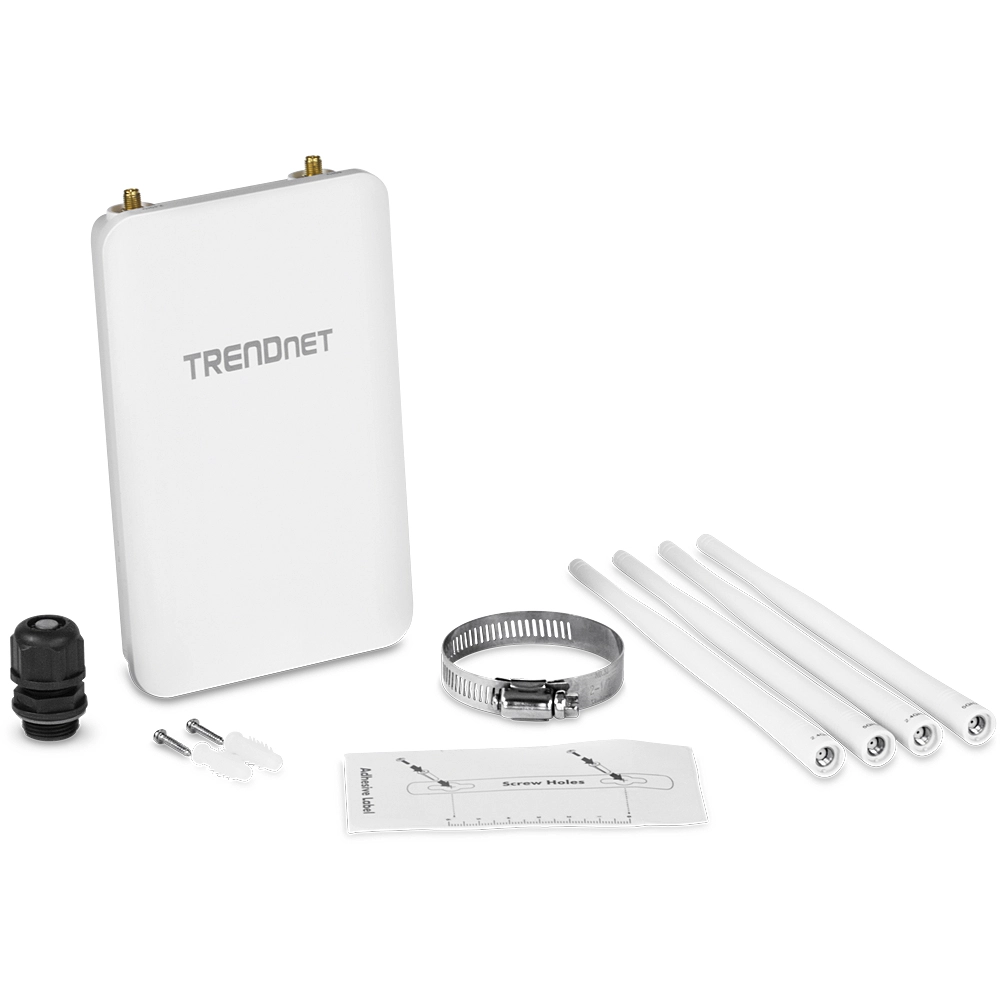

TRENDnet’s 5 dBi Wireless AC1300 Outdoor PoE+ Omni-Directional Access Point, model TEW-841APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. The wireless multi-point bridge can be powered with a PoE+ switch or PoE+ injector of your choosing. A variety of installation scenarios are facilitated with Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes. The IP67 rated housing on the wireless multi-point bridge is designed for outdoor environments, and includes wall and pole mounting hardware. Wireless Multi-Point Bridge Use this dual band wireless AC1300 point-to-multi-point bridge to conveniently link two or more locations together with wireless AC speeds and performance. Wireless Modes Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes for a variety of wireless applications. Outdoor Ready Built for outdoor installations with an IP67 outdoor protection rating and an operating temperature range of -20° – 60° C (-4° – 140° F). Concurrent Dual Band AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands Wireless Modes Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes Outdoor Rated Durable enclosure with an IP67 outdoor weather rating Omni-Directional Antenna 4 x 5 dBi omni-directional antennas PoE Powered Supports 802.3at PoE+ power input Logs Real time logs and statistics help troubleshooting Encrypted Wireless Support for wireless encryption of up to WPA2 Multiple SSID Create up to eight dual band SSIDs with band steering capabilities Mounting Hardware Pole and wall mount hardware included Compatibility Compatible with legacy wireless devices

Files

Product Brochure

mmo_65447516_1567754613_5719_10160.pdf

PDF• 924.4 KB

User manual

mmo_65447516_1567754621_0799_10106.pdf

PDF• 5.3 MB
