Cisco MS220-24P-HW 24-ports

Best offer
AED
7 82143

This price may no longer be valid

Key Features

  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 26
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • DHCP features: DHCP client
  • Number of queues: 8
  • Number of multicast groups filtered: 256
  • Gigabit Ethernet (copper) ports quantity: 26
  • Port mirroring: Yes
  • Switching capacity: 52Gbit/s
  • MAC address table: 8192entries
  • Access Control List (ACL): Yes
  • Multicast support: Yes
  • IGMP snooping: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
342867 h
Internal memory
128 MB
MIB support
Y
Quality of Service (QoS) support
✓
Security algorithms
802.1x RADIUS, SSL/TLS
Product colour
Black
Packet buffer memory
4.10 MB
Switching capacity
52 Gbit/s
MAC address table
8192 entries
Access Control List (ACL)
✓
Multicast support
✓
Switch layer
L2

Weight & dimensions

Weight
2810 g
Height
44 mm
Depth
201 mm
Width
440 mm

Management features

Web-based management
✓
Number of multicast groups filtered
256

Power

AC input voltage
100 - 240 V
Power consumption (typical)
18.20 W
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
✗

Wireless LAN features

IGMP snooping
✓

Design

LED indicators
Yes

Packaging content

Quick start guide
✓
Cables included
AC
Power supply included
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Management protocols
SNMP v1, SNMP v2, SNMP v3
VLAN support
✓
Number of VLANs
256
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Link aggregation
✓
Flow control support
✓
Port mirroring
✓

Ports & interfaces

Combo SFP ports quantity
2
Gigabit Ethernet (copper) ports quantity
26
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
26

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
64.50 BTU/h

Technical details

Certification
CE, CSA (CSA 22.2), FCC, UL (UL 60950)
Switch type
Managed

Memory

Flash memory
32 MB

Data transmission

Number of queues
8

Security

MAC address filtering
✓
SSH/SSL support
✓
Broadcast storm control
✓
DHCP features
DHCP client

Logistics data

Harmonized System (HS) code
85176990

Product Details

Cisco 220 Series Smart Switches, part of the Cisco Small Business line of network solutions, are simple, secure and smart switches equipped with enhanced security, management, and performance. Models include 24 or 48 ports of Fast Ethernet, with two Gigabit Ethernet uplinks, and 26 or 50 ports of Gigabit Ethernet connectivity, all with Power over Ethernet (PoE) options. This series of switches provides enhanced capabilities like access control list, command line interface, and PoE+. Offered with limited lifetime warranty, these switches deliver the ideal combination of features, performance, and ease of use to build a fast, reliable and secure business network, at a lower cost than managed switches. - Layer 2 - 24 x 10/100/1000 Ports + 2 x combo Gigabit SFP - Desktop or rack-mountable - 1U - Switching capacity: 38.69 Mpps ¦ Forwarding performance (64-byte packet size): 52 Gbps

Files

Product Brochure

mmo_22791279_1487084026_2931_5814.pdf

PDF• 582.2 KB

Quick Start Guide

mmo_22791279_1487084206_7239_4062.pdf

PDF• 696.6 KB

Cisco 220 Series Smart Plus Switches Administration Guide Release 1.1.0.x

mmo_22791279_1487084257_2312_29956.pdf

PDF• 2.7 MB

Reviews

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Join our newsletter

Be the first to know about new arrivals, sales, and exclusive picks

Sign in to unlock newsletter access and stay in the loop

Allware
info@allware.com
+971522500911
World technology awards winner badge

Allware

  • About Us
  • Terms And Conditions
  • Privacy Policy
  • Contact Us

Partners

  • Why become a partner?
  • How to list your Online Shop?

Newsletter

  • Subscribe

Info

  • How Allware works
All Rights Reserved.
Please enable location access or select an emirate
-
00:00:00
Prayer timings

Offers (1)

Amazon logo

1 offer

From
AED
7 821

Cisco Meraki Cloud Managed Switch - MS220-24P (24-Port, POE, Requires Cloud Licensing)

Price expired

This price may no longer be valid

AED
7 82143

Price History

Price History Skeleton
Price History Shimmer Effect
Loading price history...

Similar Products

See all
D-Link DGS-1008A 8-ports

D-Link DGS-1008A 8-ports

AED
6800
13 offers
-11%
D-Link DGS-1210-28P 28-Ports

D-Link DGS-1210-28P 28-Ports

AED
99900
AED
88000
11 offers
Ubiquiti USW-Pro-24-PoE 24-Ports

Ubiquiti USW-Pro-24-PoE 24-Ports

AED
2 56000
11 offers
-46%
Linksys LGS108-EU-RTL 8-ports

Linksys LGS108-EU-RTL 8-ports

AED
14900
AED
7900
11 offers
-5%
D-Link DGS-1024D 24-ports

D-Link DGS-1024D 24-ports

AED
20965
AED
19740
11 offers
-8%
D-Link DES-1024D 24-ports

D-Link DES-1024D 24-ports

AED
13325
AED
12150
10 offers
-1%
D-Link DGS-108 8-Ports

D-Link DGS-108 8-Ports

AED
8395
AED
8295
10 offers
-68%
D-Link DLDGS1016D 16-ports

D-Link DLDGS1016D 16-ports

AED
57435
AED
18000
9 offers
D-Link DGS-1100-08P 8-ports

D-Link DGS-1100-08P 8-ports

AED
24800
8 offers
Linksys LGS105MERTL 5-ports

Linksys LGS105MERTL 5-ports

AED
8150
8 offers

More from Cisco

See all
Cisco WS-C2960X-24TD-L 26-Ports

Cisco WS-C2960X-24TD-L 26-Ports

AED
3 28205
1 offer

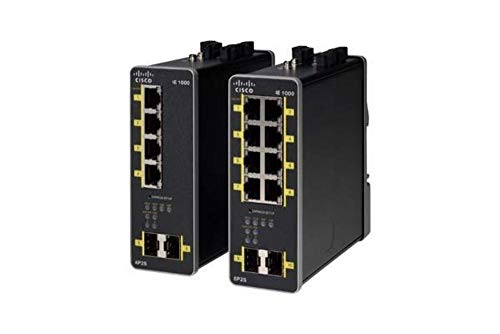

Cisco 677GY16 8-Ports
