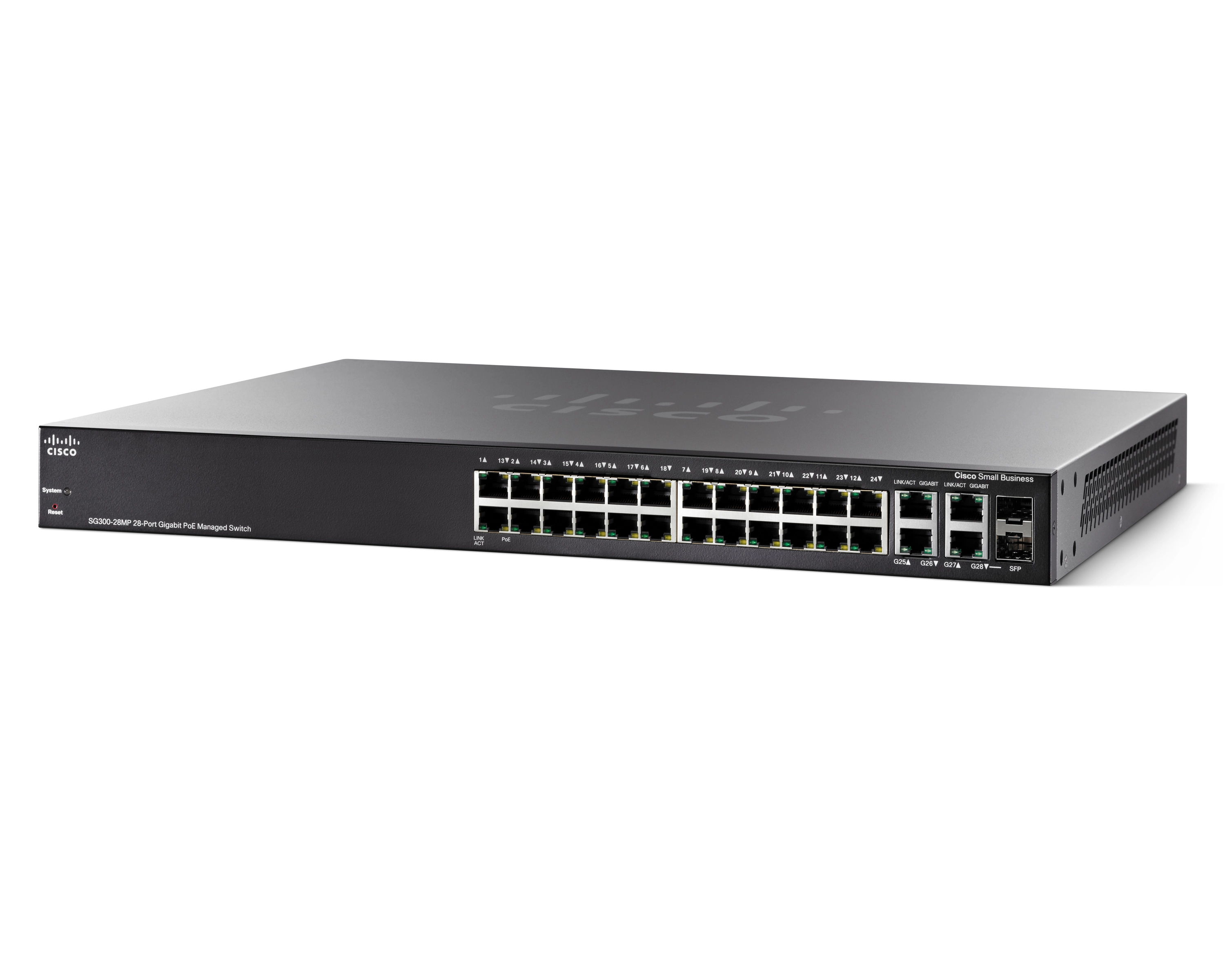

Cisco SG300-28PP-K9-NA 28-ports

Best offer
AED
4 22596

This price may no longer be valid

Key Features

  • Switch layer: L3
  • Basic switching RJ-45 Ethernet ports quantity: 26
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Throughput: 41.67Mpps
  • DHCP features: DHCP client, DHCP server
  • Number of queues: 4
  • Number of static routes: 512
  • Gigabit Ethernet (copper) ports quantity: 26
  • Port mirroring: Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • IP routing: Yes
  • Jumbo frames: 9216
  • Switching capacity: 56Gbit/s
  • MAC address table: 16384entries
  • Access Control List (ACL): Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
310755 h
Safety
UL
Internal memory
128 MB
MIB support
Y
Quality of Service (QoS) support
✓
Noise level
40.40 dB
Security algorithms
802.1x RADIUS, HTTPS, SNMP, SSH, SSH-2, SSL/TLS
Rack mounting
✓
Virtual LAN features
Private VLAN, Tagged VLAN
Product colour
Black
Packet buffer memory
8 MB
Switching capacity
56 Gbit/s
MAC address table
16384 entries
Access Control List (ACL)
✓
DIN rail mounting
✓
Authentication type
IEEE 802.1x
Jumbo frames support
✓
Forwarding rate
41.67 Mpps
Multicast support
✓
Switch layer
L3

Weight & dimensions

Weight
3950 g
Height
44.50 mm
Depth
257 mm
Width
440 mm

Management features

Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓

Power

AC input voltage
100 - 240 V
Power consumption (typical)
43.10 W
AC input frequency
50 - 60 Hz
Power consumption (max)
445 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
375 W

Wireless LAN features

IGMP snooping
✓

Design

Reset button
✓
LED indicators
Yes

Packaging content

User guide
✓
Quick start guide
✓
Manual
✓
Cables included
AC, Serial
Power supply included
✓

Network

Switching protocols
GARP
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Supported network protocols
BPDU, Bonjour, HTTP/HTTPS, IPSG, IPv4/v6, SNTP, SSH, TCP/IP, TFTP, UDP
Management protocols
2, 2c, 3, HTTP/HTTPS, IGMP v1, IPv4, IPv6, LACP, MIB, RMON, SNMP 1, SNMP v1/v2c/v3
VLAN support
✓
Number of VLANs
4096
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
10G support
✓
Link aggregation
✓
Flow control support
✓
Jumbo frames
9216
Port mirroring
✓

Ports & interfaces

Combo SFP ports quantity
2
Power over Ethernet plus (PoE+) ports quantity
24
Gigabit Ethernet (copper) ports quantity
26
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
26

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
1487.63 BTU/h

Technical details

Certification
CE, CSA, CSA (CSA 22.2), FCC, FCC 15 (CFR 47) A, UL (UL 60950)
Switch type
Managed

Memory

Flash memory
16 MB

Data transmission

Number of static routes
512
Number of queues
4
Throughput
41.67 Mpps

Security

MAC address filtering
✓
SSH/SSL support
✓
Broadcast storm control
✓
Loop protection
✓
BPDU filtering/protection
✓
DHCP features
DHCP client, DHCP server

Ethernet LAN features

IP routing
✓

Product Details

Easy-to-Use Managed Switches that Provide the Ideal Combination of Features and Affordability. To stay ahead in a competitive marketplace, small businesses need to make every dollar count. That means getting the most value from your technology investments, but it also means making sure that employees have fast, reliable access to the business tools and information they need. Every minute an employee waits for an unresponsive application - and every minute your network is down - has an impact on your bottom line. The importance of maintaining a strong and dependable business network only grows as your business adds more employees, applications, and network complexity. When your business needs advanced security and features but value is still a top consideration, you're ready for the new generation of Cisco® Small Business managed switches: the Cisco 300 Series. Cisco 300 Series Switches The Cisco 300 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable managed switches that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 300 Series provides the ideal combination of affordability and capabilities for small businesses, and helps you create a more efficient, better-connected workforce. The Cisco 300 Series is broad portfolio of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Fast Ethernet and 10 to 52 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco 300 Series Switches support the advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs. Business Applications Whether you need a basic high-performance network to connect employee computers or a solution to deliver data, voice, and video services, the Cisco 300 Series offers a solution to meet your needs. Possible deployment scenarios include: - Secure desktop connectivity: Cisco 300 Series Switches can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other devices they use. High performance and reliable connectivity helps speed file transfers and data processing, improves network uptime, and keeps your employees connected and productive. - Secure Wireless connectivity: With its advanced Security features, Power over Ethernet, Auto Smartports, QoS, VLAN and Access Control features, the Cisco 300 Series Switches are the perfect foundation to add Business Grade wireless to an SMB network. - Unified communications: As a managed network solution, the Cisco 300 Series provides the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco 300 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete small business solution. - Highly secure guest connectivity. Cisco 300 Series Switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests' network sessions private from each other.

Files

Product Brochure

mmo_17682054_1487087092_905_14020.pdf

PDF• 1.4 MB

Cisco 300 Series Managed Switches Administration Guide Release 1.4.0

mmo_17682054_1487087639_3928_30148.pdf

PDF• 5.5 MB

Cisco 300 Series Managed Switches Quick Start Guide (English)

mmo_17682054_1487087672_4006_17453.pdf

PDF• 691.7 KB

Open Source Used in Cisco 300 Series Switches Release 1.4.2.x

mmo_17682054_1487087696_9095_4060.pdf

PDF• 787.7 KB
