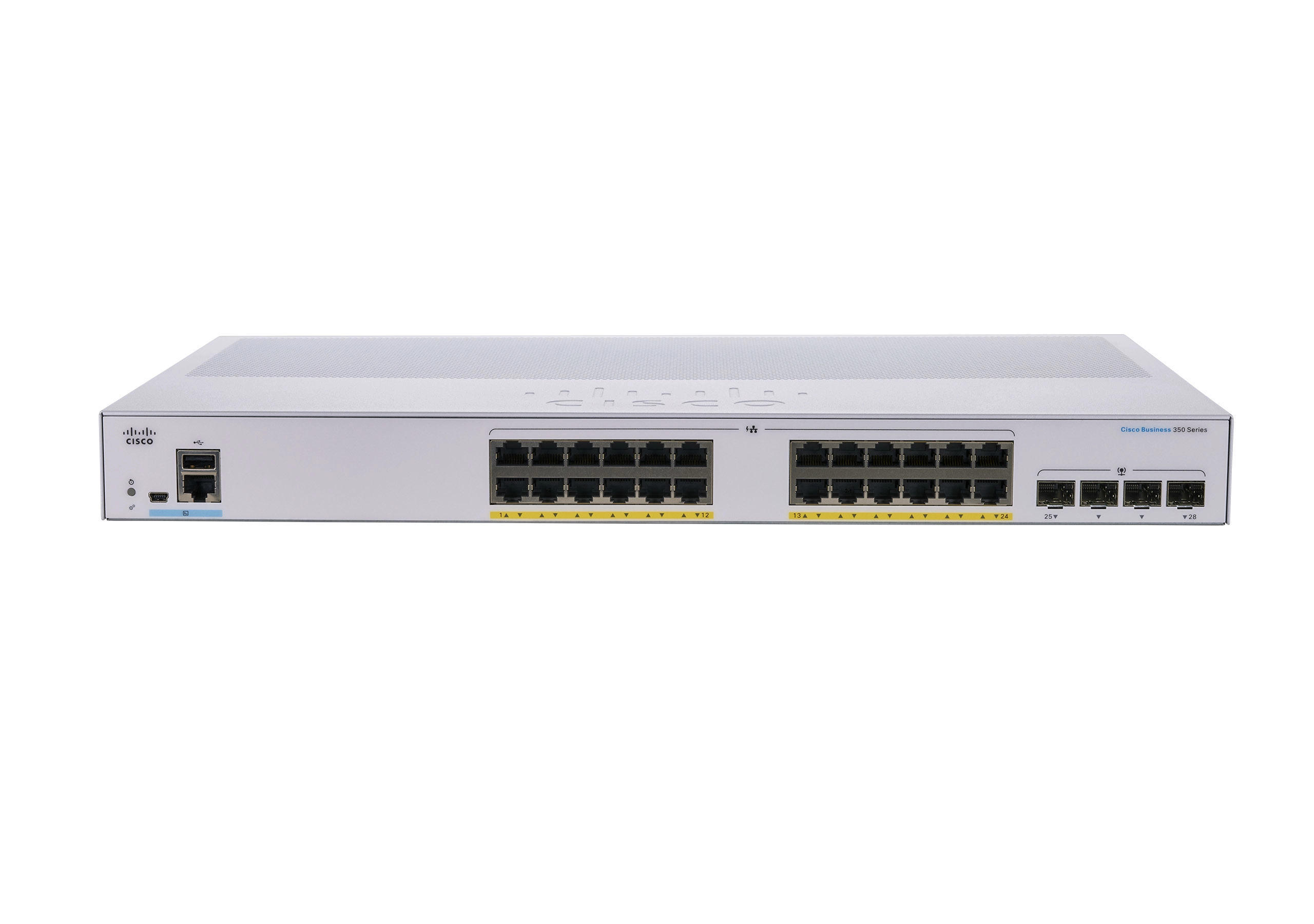

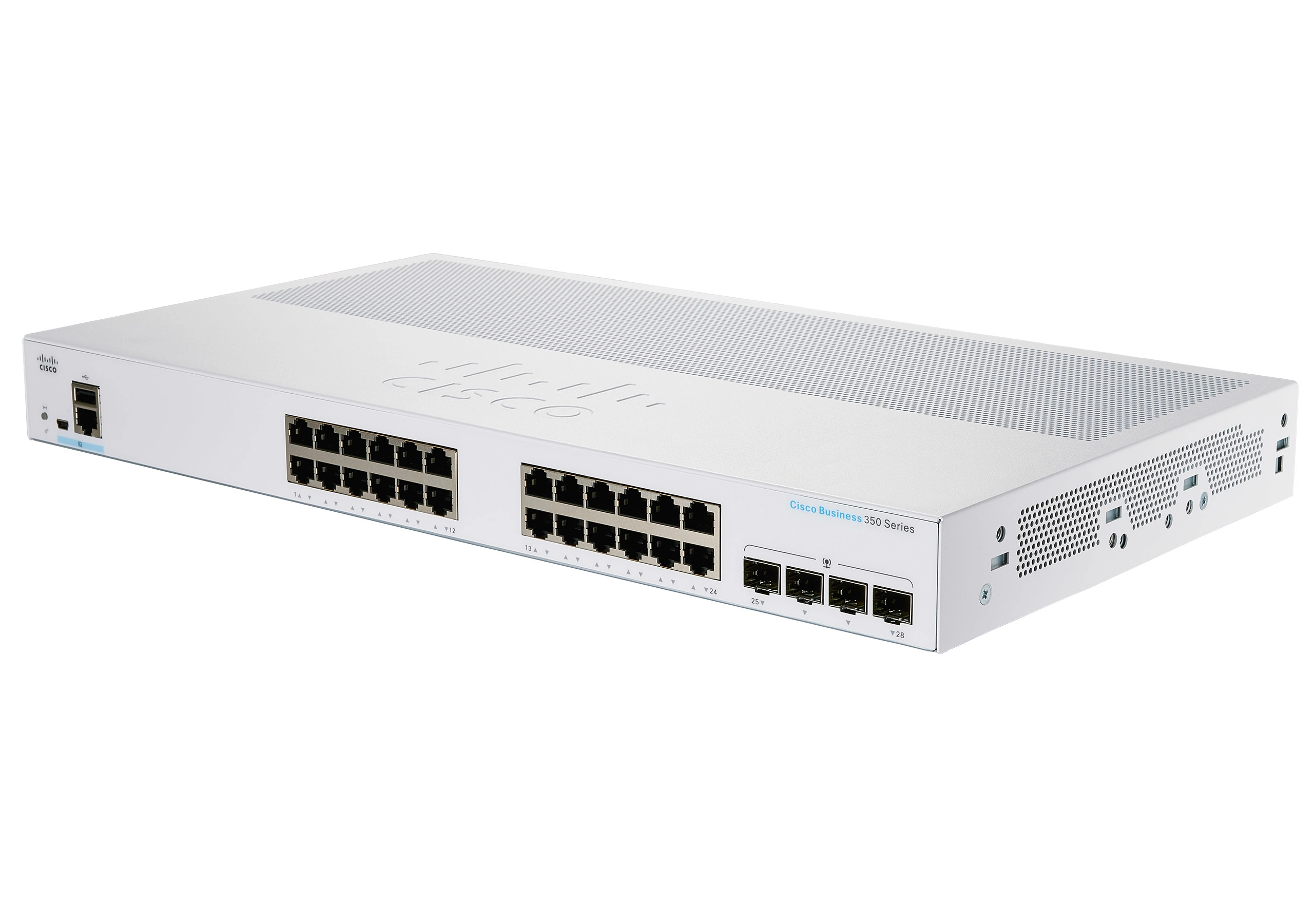

Cisco CBS350-24NGP-4X-NA 24-ports
Key Features
- Switch layer: L2/L3, L3
- Physical stacking (units): 4
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G Ethernet (copper) ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- DHCP features: DHCP option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay
- Number of queues: 8
- Number of static routes: 990
- Number of IP interfaces: 128
- Multicast Listener Discovery (MLD) snooping: MLD v1/2
- Static route: Yes
- Gigabit Ethernet (copper) ports quantity: 20, 24
- Port mirroring: Yes
- Power over Ethernet plus (PoE+) ports quantity: 24
- Half duplex: Yes
Specifications
Features
Country of origin
China
Mean time between failures (MTBF)
1033942h, 2026793h
Market segment
Business
Internal memory
512 MB
Processor frequency
800 MHz
MIB support
Y
Cloud-managed
✓
Quality of Service (QoS) support
✓
Password protection
✓
Security algorithms
802.1x RADIUS, HTTPS, SSH, SSH-2, SSL/TLS
Rack mounting
✓
Noise level
40.50 dB
Stackable
✓
Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Product colour
Black, Grey, Silver
Packet buffer memory
1.50MB, 3MB
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
SFP+ module slots quantity
2, 4
Access Control List (ACL)
✓
Access Control List (ACL) rules
1024
Switching capacity
56Gbit/s, 128Gbit/s, 140Gbit/s
Full duplex
✓
MAC address table
16000 entries
Authentication type
IEEE 802.1x, RADIUS
Configuring Location Settings (CLI)
✓
Jumbo frames support
✓
Forwarding rate
41.66Mpps, 95.23Mpps, 104.16Mpps
Multicast support
✓
Static route
✓
Multicast Listener Discovery (MLD) snooping
MLD v1/2
Switch layer
L2/L3, L3
Packaging data
Package weight
4390g, 4510g, 5310g, 5460g, 5620g, 6830g, 7440g
Package height
103.90mm, 106mm, 109.20mm
Package depth
561.10mm, 574mm, 575mm
Package width
369.30mm, 410mm, 430mm, 478mm, 513.10mm
Weight & dimensions
Weight
1470g, 1800g, 2700g, 3620g, 3660g, 4780g, 5300g
Height
43.90 mm
Depth
439.90mm, 444.50mm
Width
240.50mm, 257mm, 299.20mm, 345.20mm, 350mm
Management features
Web-based management
✓
Firmware upgradeable
✓
System event log
✓
ARP inspection
✓
Power
Power plug type
Type C
AC input voltage
100 - 240 V
Power supply location
Internal
AC input frequency
50 - 60 Hz, 50 Hz
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
195W, 370W, 375W
Number of power supply units
1
Redundant power supply (RPS) support
✗
Performance
Physical stacking (units)
4
Wireless LAN features
IGMP snooping
✓
Design
Stacking
✓
Fanless
✓
Reset button
✓
LED indicators
Yes
Form factor
1U
Redundant fans support
✓
Computer system
Built-in processor
✓
Packaging content
Packaging content
AI28 and Quick Start Guide, CBS350-24FP-4G-UK Switch, CBS350-24FP-4X-UK Switch, CBS350-24P-4G-UK Switch, CBS350-24P-4X-UK Switch, CBS350-24T-4G-UK Switch, CBS350-24T-4X-UK Switch, Mounting hardware, Power cord or adapter, Switch, and Quick Start Guide
Quick start guide
✓
Cables included
AC
Power supply included
✓
Rack mount kit
✓
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Management protocols
BOOTP, HTTP/HTTPS, RADIUS, SNMP, SNMP 1/2c/3, SNMP v1/2c/3, SNTP, SSH, Telnet
VLAN support
✓
VLAN mapping type
1:1 VLAN mapping
Number of VLANs
4094
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Rate limiting
✓
Ethernet LAN data rates
10, 100, 1000
Active link detection
✓
Cable length detection
✓
Flow control support
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T
10G support
✓
Link aggregation
✓
Jumbo frames
9000
Half duplex
✓
Policy-based routing
✓
Port mirroring
✓
Ports & interfaces
Power over Ethernet (PoE) ports quantity
24
SFP module slots quantity
2, 4
Cable types supported
Cat5e
Console port
RJ-45, RJ-45/Mini-USB
USB 2.0 ports quantity
1
Combo SFP ports quantity
4
Installed SFP+ modules quantity
4
Power over Ethernet plus (PoE+) ports quantity
24
Gigabit Ethernet (copper) ports quantity
20, 24
10G Ethernet (copper) ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
10 - 90 %
Heat dissipation
89.13BTU/h, 1626.20BTU/h
Technical details
Sustainability compliance
✓
Certification
CE mark, CSA (CSA 22.2), FCC 15 (CFR 47) A, FCC Part 15 (CFR 47) Class A, UL (UL 60950)
Switch type
Managed
Compliance certificates
CE, WEEE
Memory
Flash memory
256 MB
Protocols
Routing protocols
RIP-2
IPv4 & IPv6 features
IPv6 First Hop Security (FHS)
GARP VLAN Registration Protocol (GVRP)
✓
Data transmission
Number of IP interfaces
128
Number of static routes
990
Number of queues
8
Security
MAC address filtering
✓
IP Source Guard (IPSG)
✓
SSH/SSL support
✓
Broadcast storm control
✓
Loop protection
✓
BPDU filtering/protection
✓
IP-MAC-Port binding
✓
Authentication
Guest VLAN, Port-based authentication, Web-based authentication
DHCP features
DHCP option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay
Ethernet LAN features
IP routing
✓
Logistics data
Harmonized System (HS) code
85176990
Product Details
The Cisco Business 350 Series Switches, part of the Cisco Business line of network solutions, is a portfolio of affordable managed switches that provides a critical building block for any small office network. Intuitive dashboard simplifies network setup, and advanced features accelerate digital transformation, while pervasive security protects business critical transactions. The Cisco Business 350 Series Switches provide the ideal combination of affordability and capabilities for small office and helps you create a more efficient, better-connected workforce.
The Cisco Business 350 Series Switches is a family of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Gigabit Ethernet connectivity and Gigabit or 10-Gigabit uplinks, providing optimal flexibility to create exactly the right building block for small office networks. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco Business 350 Series Switches support the advanced security management capabilities and network features you need to support enterprise-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.
Cisco Business 350 Series Switches are available with up to 48 Power over Ethernet (PoE) ports. This capability simplifies advanced technology deployments such as IP telephony, wireless, and IP surveillance by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost. Models support 802.3af PoE and 802.3at PoE+.
Networkwide Automatic Voice Deployment
Using a combination of Cisco Discovery Protocol, Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED), Auto Smartports, and Voice Services Discovery Protocol (or VSDP, a unique Cisco protocol), customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge around a single voice Virtual Local Area Network (VLAN) and Quality of Service (QoS) parameters and then propagate them out to the phones on the ports, where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.
IPv6 Support
As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Business 350 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future. Cisco Business 350 Series Switches have successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification.
Advanced Layer 3 Traffic Management
The Cisco Business 350 Series Switches enable a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide static LAN Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.
With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security.
Compact Design
The sleek and compact design for the Cisco Business 350 Series Switches provide additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.
