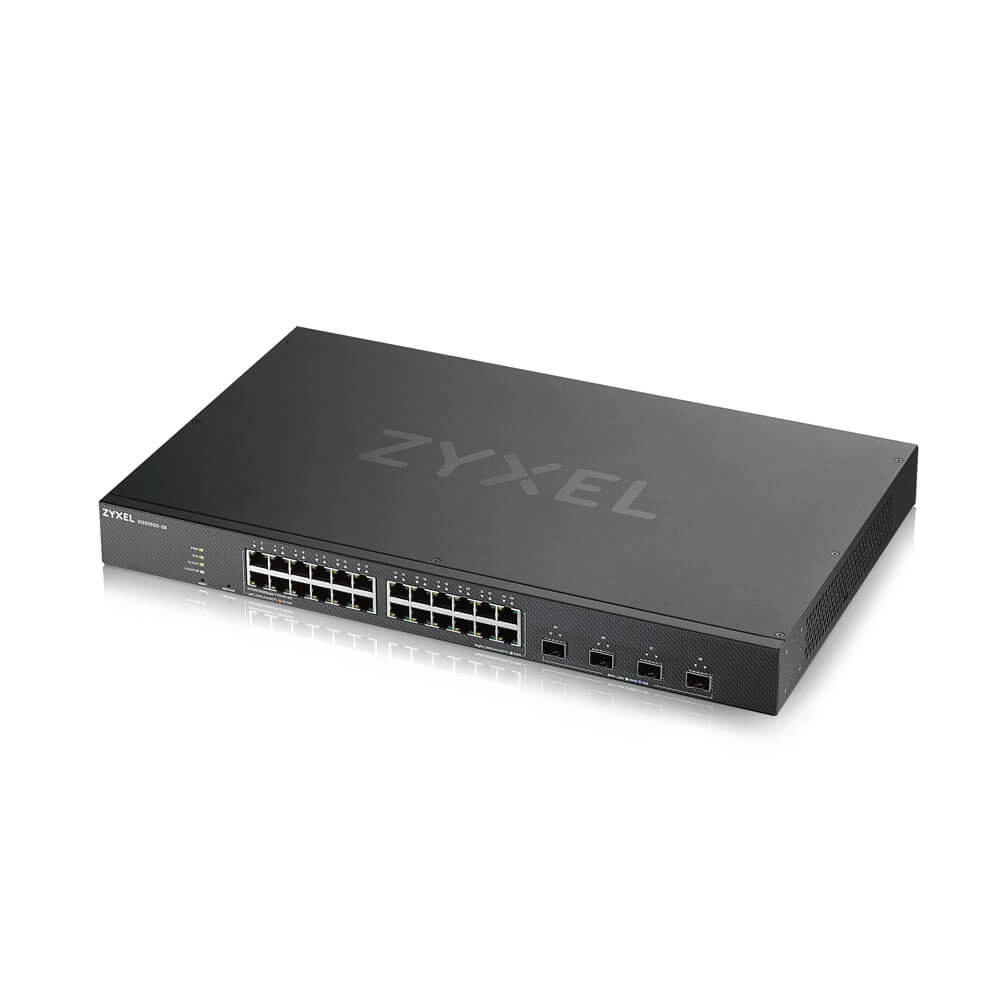

Zyxel XGS1930-28 28-ports

Key Features

  • Switch layer: L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • DHCP features: DHCP client, DHCP relay, DHCPv6 relay
  • Static route: Yes
  • Port mirroring: Yes
  • IP routing: Yes
  • Routing entries: 32
  • SFP+ module slots quantity: 4
  • Switching capacity: 128Gbit/s
  • MAC address table: 16000entries
  • Access Control List (ACL): Yes
  • Forwarding rate: 95.2Mpps
  • Multicast support: Yes
  • IGMP snooping: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
1211024 h
Safety
LVD
Electromagnetic compatibility
BSMI EMC, CE A, FCC 15 A
Internal memory
512 MB
Quality of Service (QoS) support
✓
Password protection
✓
Noise level
0 dB
Security algorithms
802.1x RADIUS, HTTPS, SHA-2, SNMPv3, SSL/TLS
Rack mounting
✓
Virtual LAN features
Port-based VLAN, Voice VLAN
Product colour
Black
Packet buffer memory
1.50 MB
SFP+ module slots quantity
4
Switching capacity
128 Gbit/s
MAC address table
16000 entries
Access Control List (ACL)
✓
Forwarding rate
95.20 Mpps
Multicast support
✓
Routing entries
32
Static route
✓
Switch layer
L3

Packaging data

Package type
Box
Package weight
5820 g
Package height
107 mm
Package depth
355 mm
Package width
585 mm

Weight & dimensions

Weight
3400 g
Height
44 mm
Depth
270 mm
Width
441 mm

Management features

Web-based management
✓

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
471 W
Power over Ethernet (PoE)
✗
Total Power over Ethernet (PoE) budget
375 W

Wireless LAN features

IGMP snooping
✓

Packaging content

Cables included
AC
Rack mount kit
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
✓
Number of VLANs
4000
Spanning tree protocol
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
10G support
✓
Link aggregation
✓
Flow control support
✓
Port mirroring
✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity
24
Fiber optic connector
SFP
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 95 %
Storage relative humidity (H-H)
10 - 95 %
Heat dissipation
1606.11 BTU/h

Technical details

Certification
RoHS
Switch type
Managed

Memory

Flash memory
32 MB

Protocols

GARP VLAN Registration Protocol (GVRP)
✓

Data transmission

Path MTU discovery
✓

Security

SSH/SSL support
✓
Broadcast storm control
✓
Loop protection
✓
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
CPU defense
✓
DHCP features
DHCP client, DHCP relay, DHCPv6 relay

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Product Details

Flexible and easy way to manage your switch The XGS1930 can be used in two modes by utilizing Zyxel's NebulaFlex. You are able to easily change between standalone and our license free Nebula cloud management platform, anytime, with a few simple clicks. You can easily access advanced features such as VLAN, Quality of Service (QoS), IGMP Snooping, Link Aggregation (LAG) wether you choose intuitive web-based GUI or cloud-based Nebula management platform. The XGS1930 enables cloud manageability with Zyxel's NebulaFlex to protect your investment by having the flexibility to benefit from the cloud in your own time, without the need to worry about additional ongoing licensing costs. You can grasp your network device status and perform remote configuraitons anytime, anywhere. A new and flexible approach to 10G! Under the new stylish carbon-like cover comes new hardware and software to widen the user experience for our new series of 10G switches. The XGS1930’s flexible approach includes the introduction of NebulaFlex, giving you the ability to configure the switch without unboxing. The XGS1930 also includes intuitive new features like the One-touch ‘Restore’ button on the front panel. What to benefit from Central management? The XGS1930 series of switches are able to join our License Free Cloud management platform, Nebula. Simply register your switch via the portal (Nebula Control Center) and the device will automatically join, auto provision and begin to give you real-time control and information, anywhere, anytime. Not ready for the cloud… Just yet? Not ready for the cloud? No problem the XGS1930 series offers traditional standalone (Smart Managed) configuration via it’s intuitive local web based setup, whilst always giving you the flexibility to centrally control via Nebula when you are ready without any additional fees. An affordable approach to 10G, the backbone of any network. The XGS1930 series has been designed to suite a wide range of scenarios that SMBs are often faced with. Feature rich, flexible management options and 10G uplinks, all make the XGS1930 series the first choice for SMBs looking for an upgrade path from 1G, future proofing or have requirements for higher bandwidths across their backbone. More available power with intelligent PoE support. The XGS1930 series offers 30-watt (802.2at) PoE+ to each port and gives a large PoE+ budget of 375w on all PoE models. The PoE is further enhanced with intelligent PoE (Smart Power), allowing the switch to deliver the actual power required to devices connected without wasting power often lost in the PoE allocation process. This approach can see the switch support more PoE devices on a single switch compared to traditional smart managed switches, even power-hungry devices like CCTV and Wireless Access Points. Experience whisper-silent operation. The XGS1930 series has been designed with smart fan technology to automatically adjust speeds round the temperature of the device. This allows the switch to minimize the acoustic noise and create a whisper-silent operation in typical deployments.

Files

Product Brochure

mmo_62225325_1539337249_5703_15235.pdf

PDF• 1.4 MB

User manual

mmo_62225325_1539337264_4669_22750.pdf

PDF• 7.6 MB
